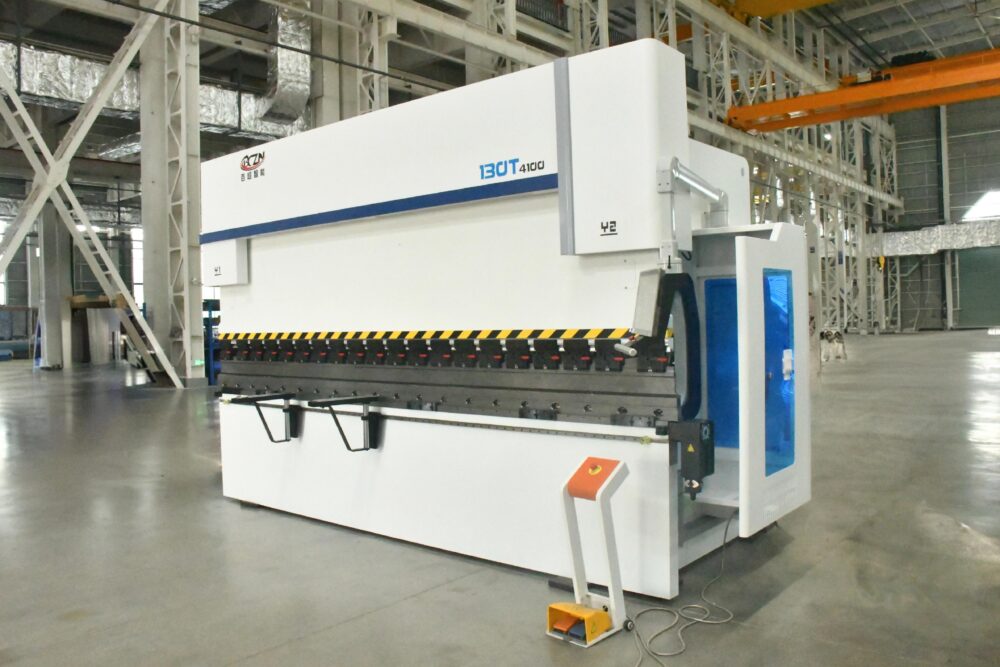

BPA 130T4100 Electro-Hydraulic Synchronous CNC Press Brake Machine
| Basic Parameters | Bending Capacity (kN) | 1300 |
| Bending Length (mm) | 4100 | |
| Distance Between Columns (mm) | 3500 | |
| Open Height (mm) | 490 | |
| Throat Depth (mm) | 400 | |
| Ram Stroke (mm) | 200 | |
| Main Motor Power (kW) | 9 | |
| Hydraulic Tank Capacity (L) | 280 | |
| Overall Dimensionsm L×W×H (mm) | 5000×1740×2695 | |
| Performance | X-Axis Stroke | 600 |
| R-Axis Stroke | 200 | |
| X-Axis Speed (mm/s) | 300 | |
| R-Axis Speed (mm/s) | 200 | |
| Max Fast Approach Speed (mm/s) | 180 | |
| Max Working Speed (mm/s) | 1-12 | |
| Max Return Speed (mm/s) | 160 |
