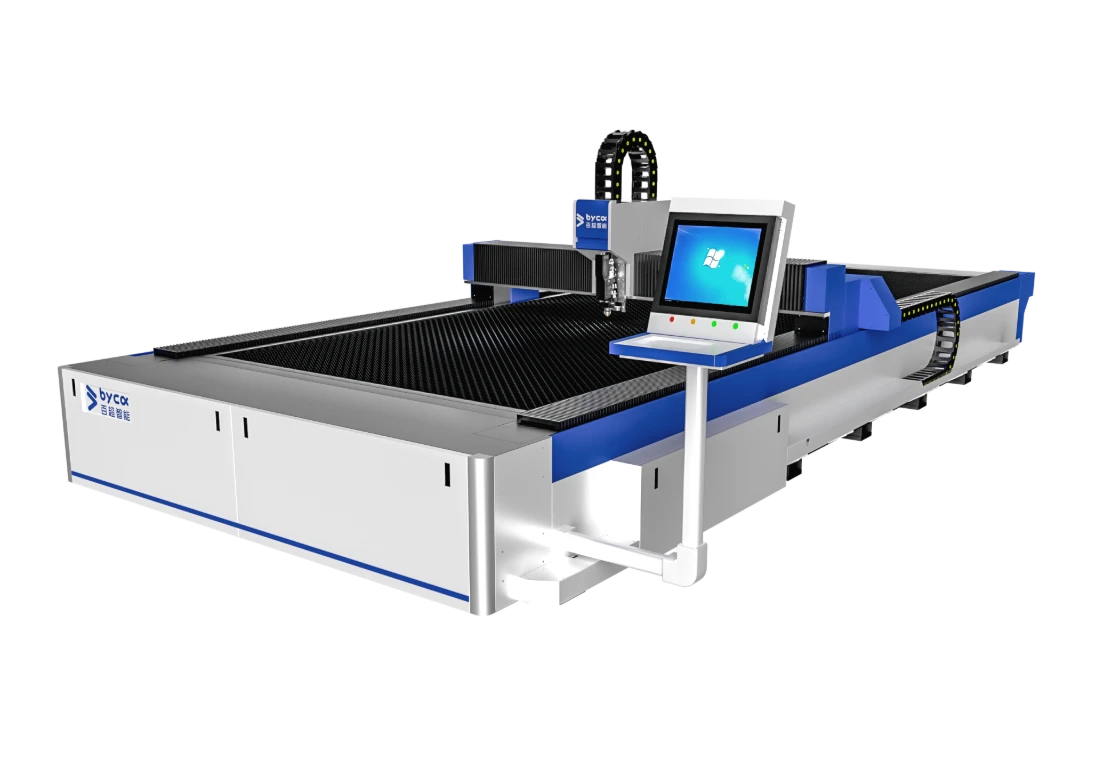

BL-S Series Single Table Open Laser Cutting Machine
The “single table” and “open-frame” design are ideal solutions for sheet metal processing scenarios that prioritize cost-effectiveness, operational convenience, and flexible adaptability.
Mechanical System
High-strength structural support that delivers both precision and lasting stability.

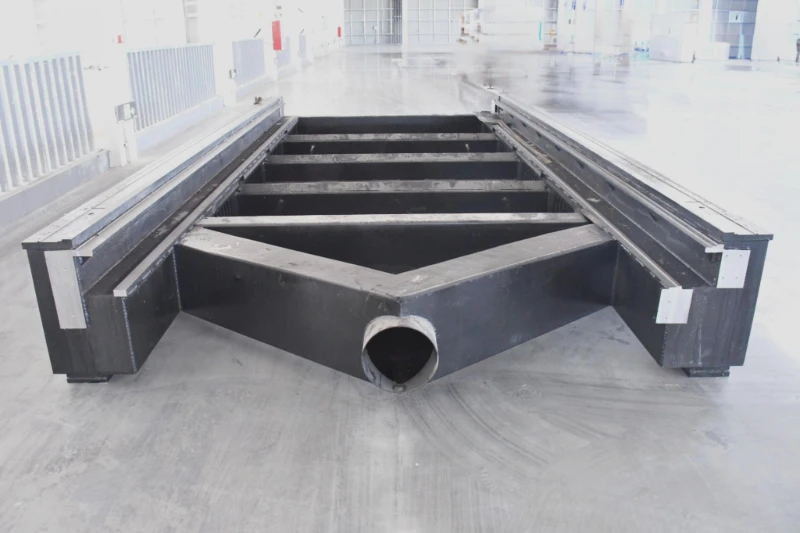

BED
High rigidity structure achieves stable, deformation-free body
The integrated steel plate welded bed, after aging treatment, has strong anti-deformation ability, ensuring stable support under high-power cutting and long-term load.

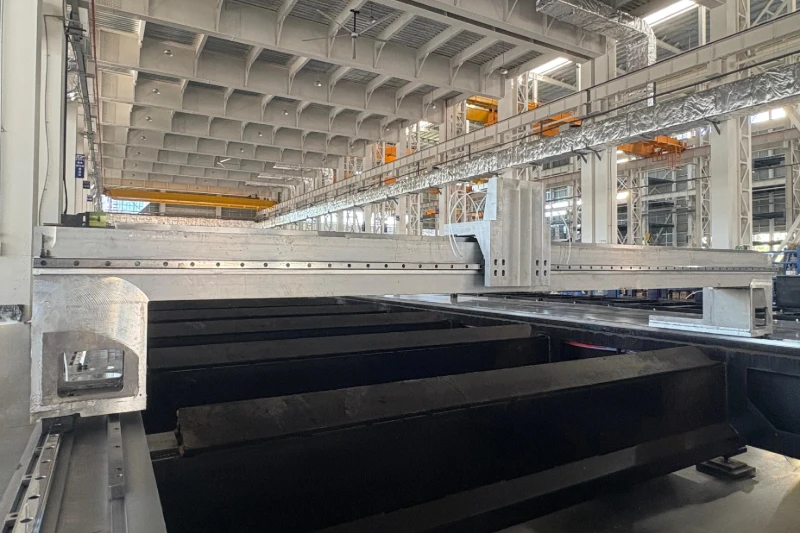

Beam
Lightweight aluminum alloy enables high-speed motion without vibration
The crossbeam is made of aluminum alloy, featuring light weight and high strength. Combined with the drive system and guide rails, it effectively reduces the running inertia and ensures smooth operation at high speeds.

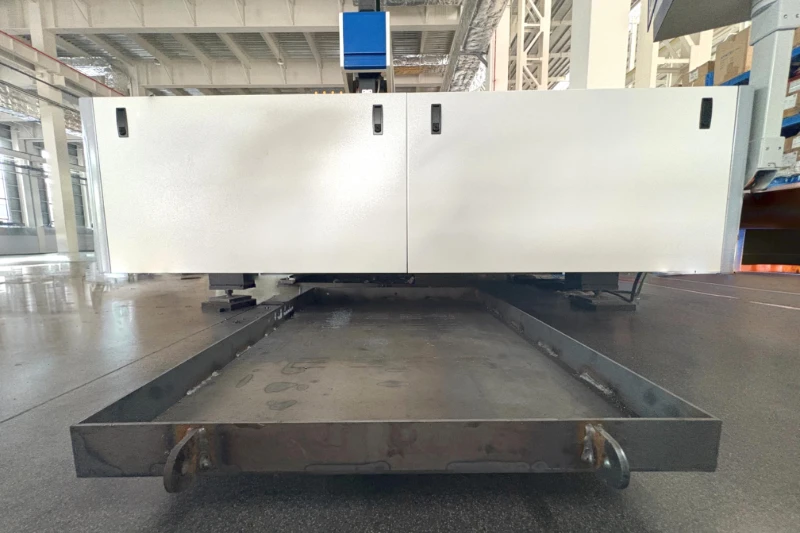

Trolley
Safely receives cut workpieces and scrap materials
The material receiving trolley is located beneath or on the side of the cutting platform. It receives the falling workpieces and waste materials through a lifting/translation mechanism to prevent them from falling directly to the ground.

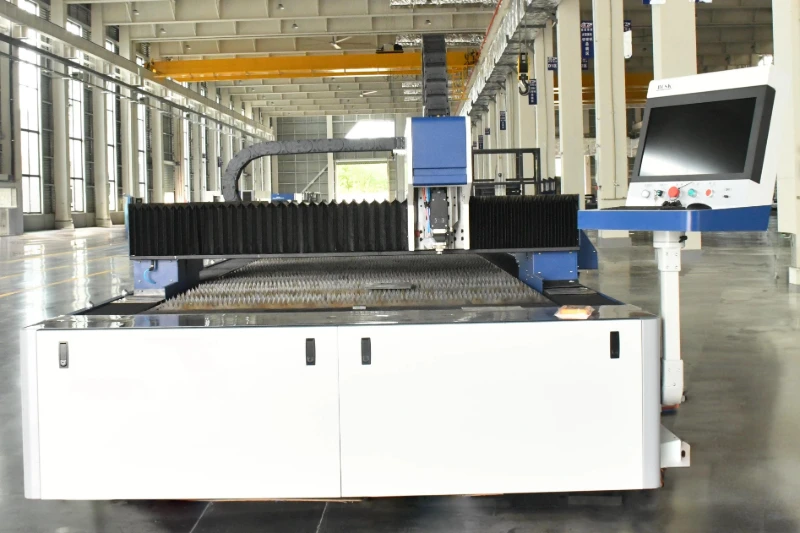

Fix Table
Single table design for intuitive and flexible operation
The table structure is simple and robust, with an open operating area, facilitating rapid workpiece positioning and loading/unloading, improving operational fluidity.
Motion System
Key moving parts coordinate smoothly ensuring rapid response and precise dynamic performance.

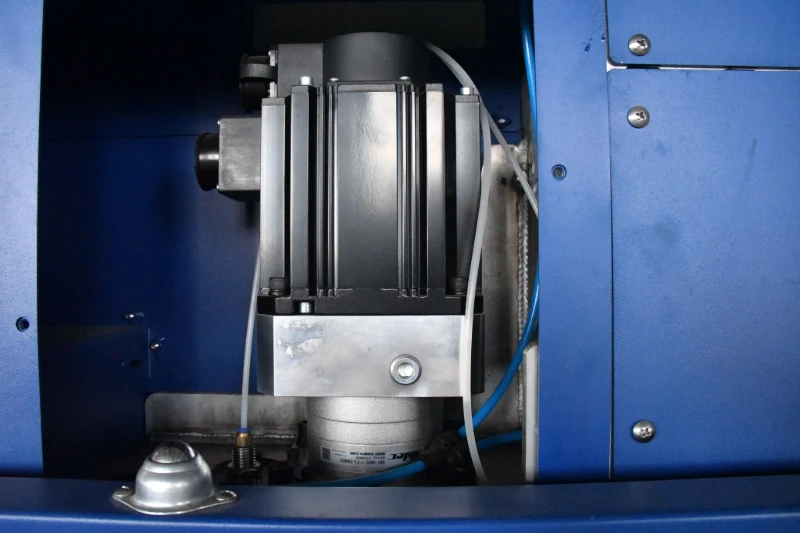

Servo Motor and Drive
Fine control with fast, responsive performance
The servo system is used to precisely control the position, speed and acceleration of the motion axis, achieving stable and reliable dynamic response and repeatability accuracy.

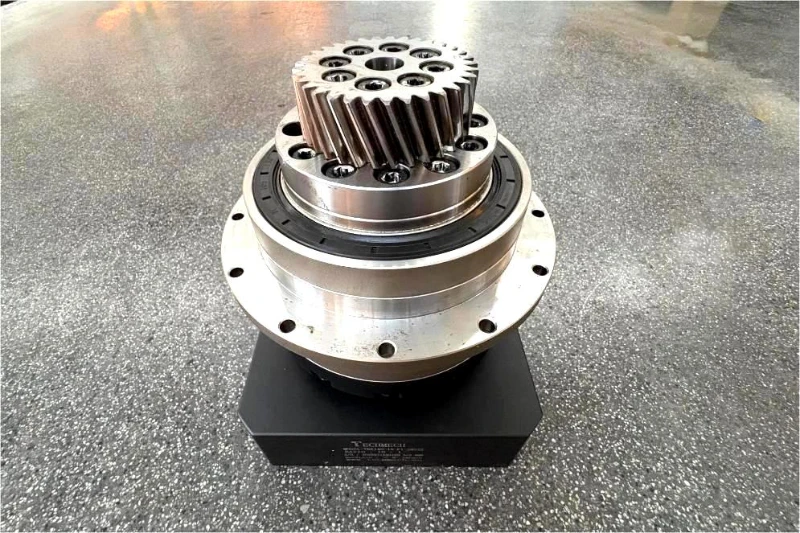

Gear Reducer
High torque output for smooth and reliable operation
The gear reducer is used to reduce the high-speed rotation of the servo motor into low-speed, high-torque output suitable for cutting, ensuring smooth and precise transmission.

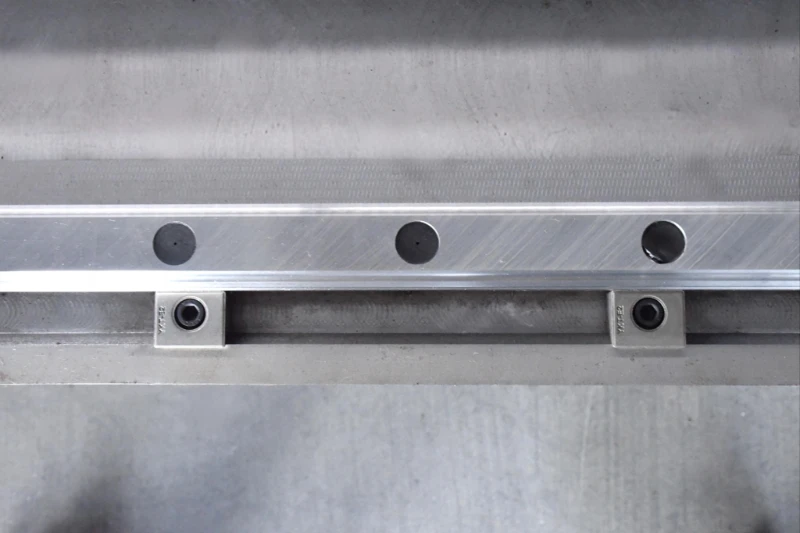

Guide Rail
Precision guide rails ensure smooth, natural motion
High-precision guide rails reduce mechanical friction and wear, extend equipment lifespan, and maintain stability and accuracy during long-term processing.

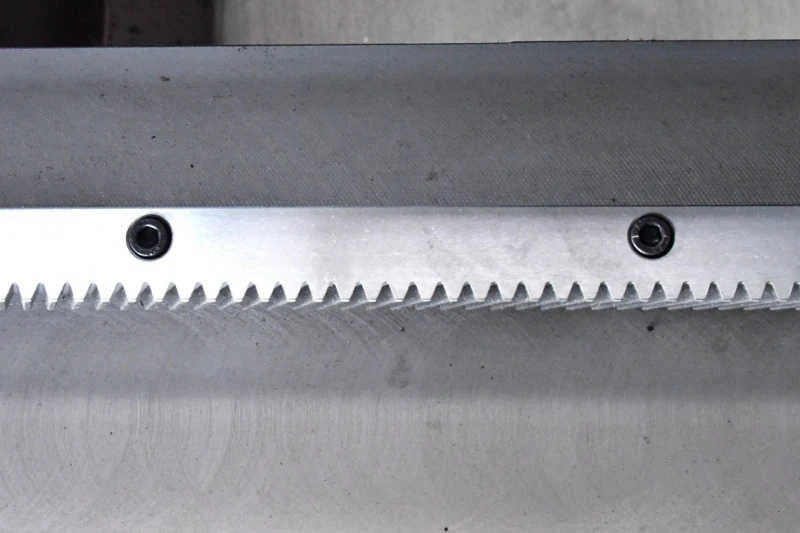

Rack
Accurate power transmission with superior efficiency
The rack with the gear to convert the motor’s rotary motion into linear movement of the cutting head or worktable, achieving fast and precise positioning.

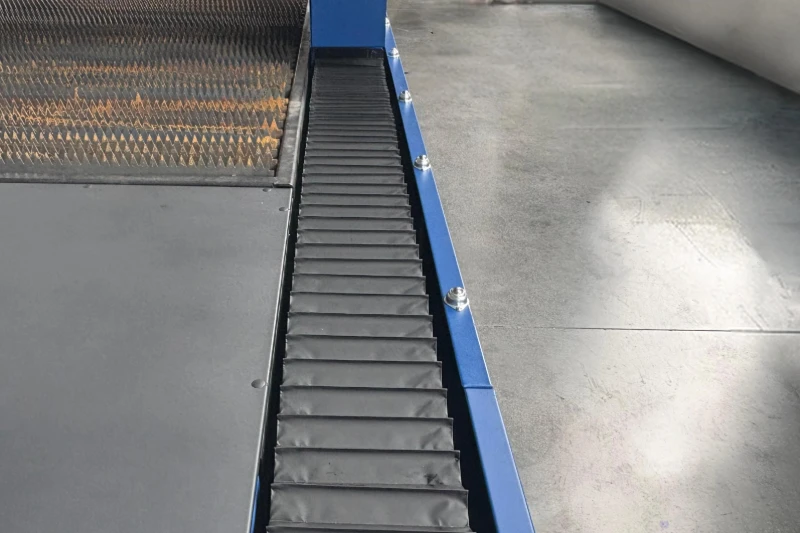

Bellow Cover
Dust-proof design extends machinery lifespan
The bellow cover is used to protect moving parts such as guide rails and ball screws, preventing dust, metal debris, and laser fumes from entering and extending the machine’s service life.

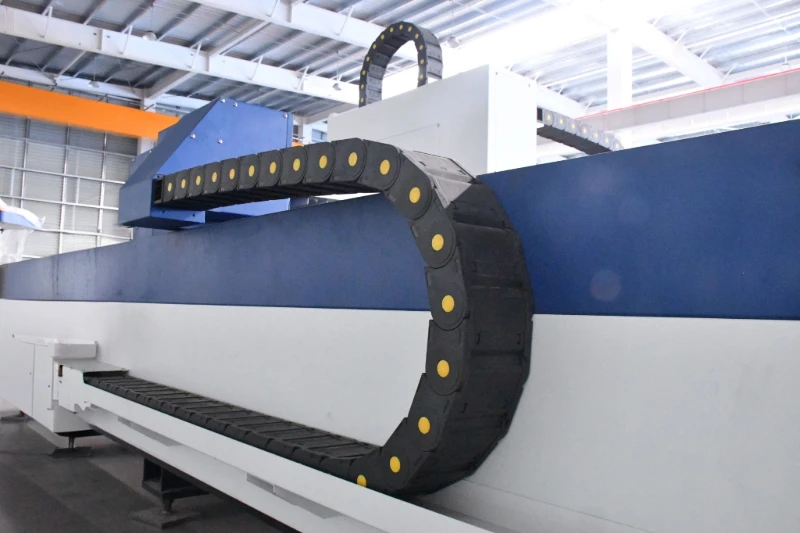

Cable Carrier
Cable management reduces wear and break risks
The cable carrier is used to guide and protect cables, air pipes, and water hoses, preventing them from tangling, breaking, or wearing out during the movement of the laser cutter.
Optical System
Efficient transmission with precise focusing enhances cutting results and energy utilization.
Laser Source
Powerful energy output increases cutting speed
The laser is used to generate high-energy and high-density laser beams to melt or vaporize metals. Lasers of different powers and types can meet the processing requirements of materials and thicknesses.

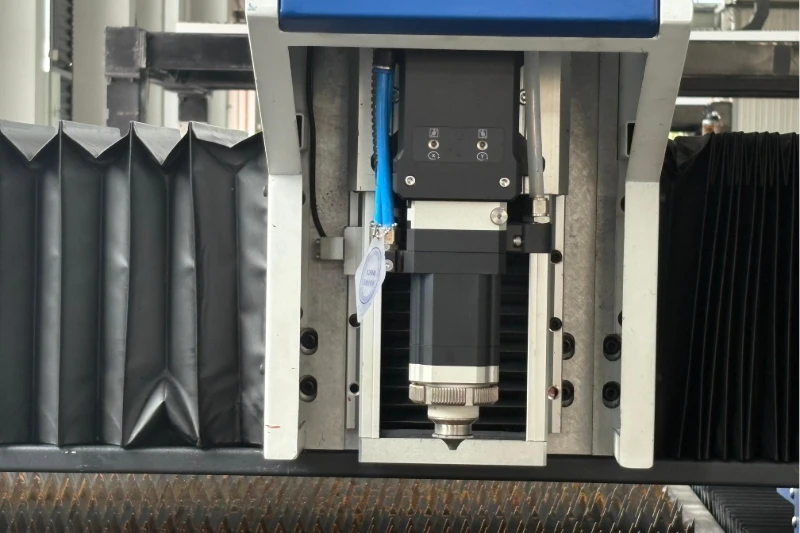

Laser Cutting Head
Precise focusing maintains consistent cutting quality
The cutting head is used to focus the laser beam and precisely project it onto the material surface. It is usually equipped with an automatic focusing system and a nozzle design to adapt to different materials and thicknesses, ensuring cutting quality.
Control System
Fast response and stable operation guarantee efficient and accurate processing.

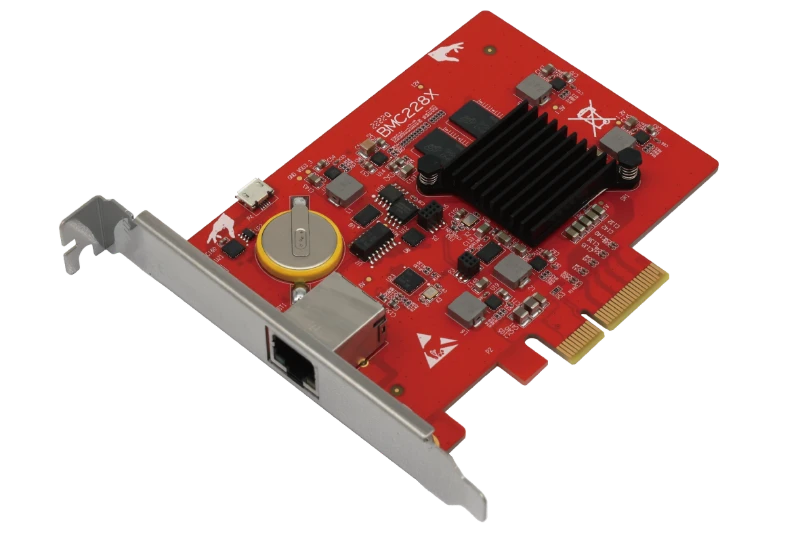

Bus Controller
Fast data transfer supports stable system operation
The cutting bus system is responsible for connecting various electronic modules, achieving efficient synchronization of data transmission and command control, and enhancing the automation level of the equipment.

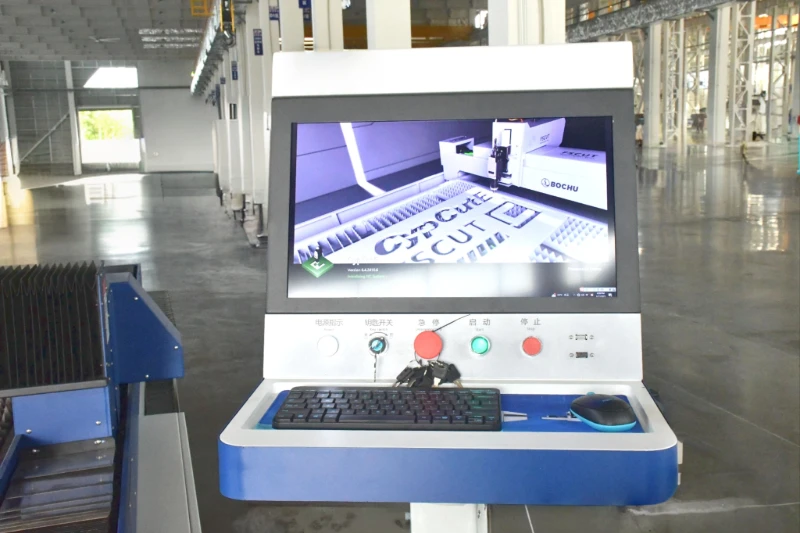

Operating Software
Intuitive interface for easy, efficient operation
The operation software is used to design the cutting path, control the operation of the equipment and achieve automated processing. It supports switching between multiple languages and offers a user-friendly interface.

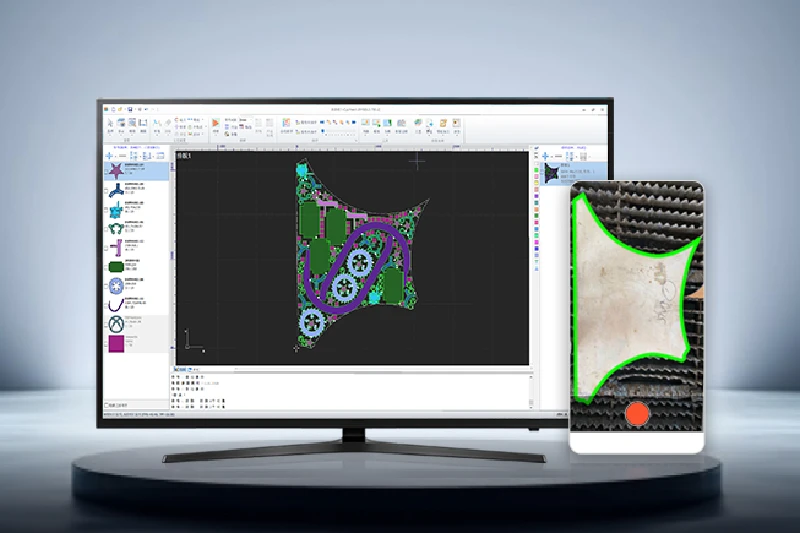

Nesting Software
Optimizes layout, saves material and reduces cost
Nesting software is used to optimize material utilization. By intelligently arranging cutting patterns, it reduces waste. It supports a variety of sheet sizes and shapes, helping enterprises achieve their cost savings goals.
Electrical System
Scientific circuit layout ensures safe and reliable equipment operation.

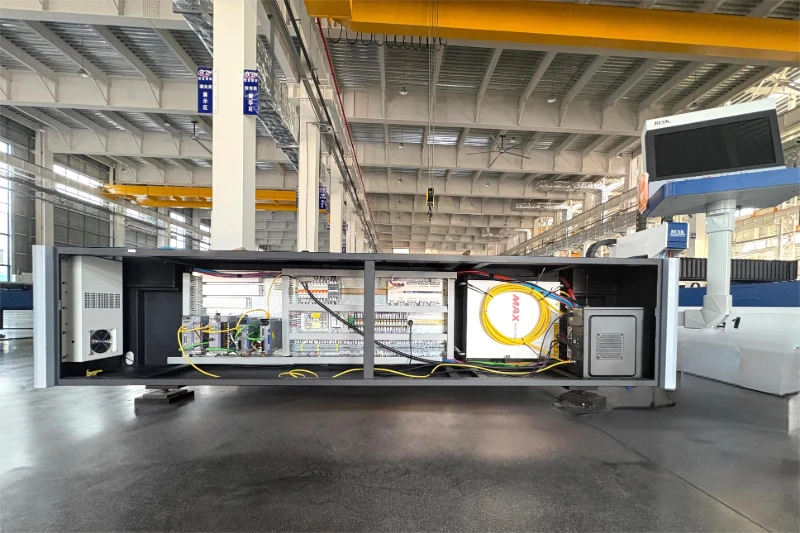

Electrical
Rational layout maintains circuit reliability
The electrical is responsible for providing stable power supply to all components. It includes the control cabinet, switching power supply, terminal blocks, etc., and coordinates the signal transmission and safety protection of each part.
Voltage Stabilizer
Stable voltage protects equipment for safe work
The voltage regulator provides a stable voltage for the laser cutter, preventing grid fluctuations from affecting the normal operation of the equipment.

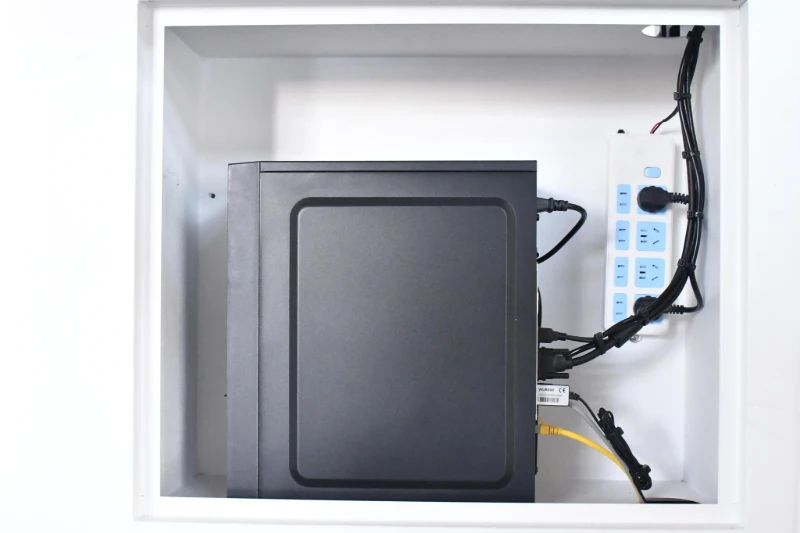

Industrial PC
Powerful performance continually supports industry
The industrial control computer is responsible for running the operation software and processing complex data calculations to ensure that the equipment can work continuously for a long time.

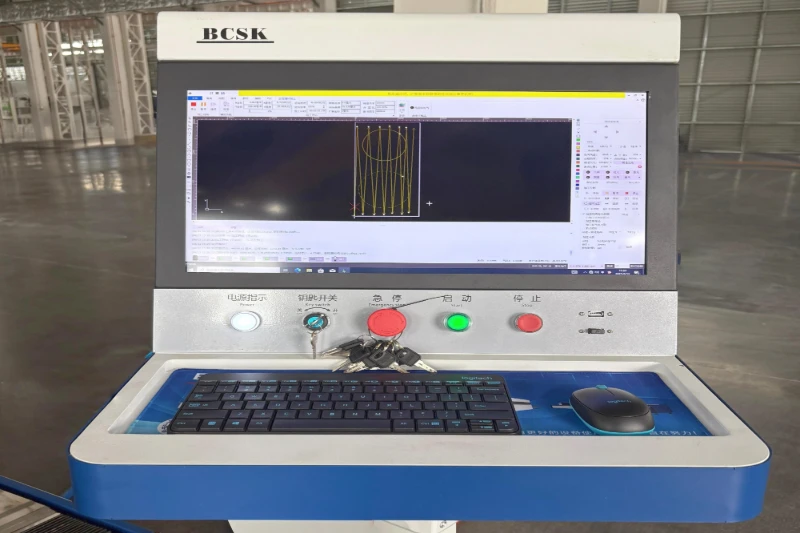

Display
Clear display enables easy monitoring and management
The display shows the operation interface, processing parameters and running status of the machine in real time, which is convenient for the operator to monitor and adjust.

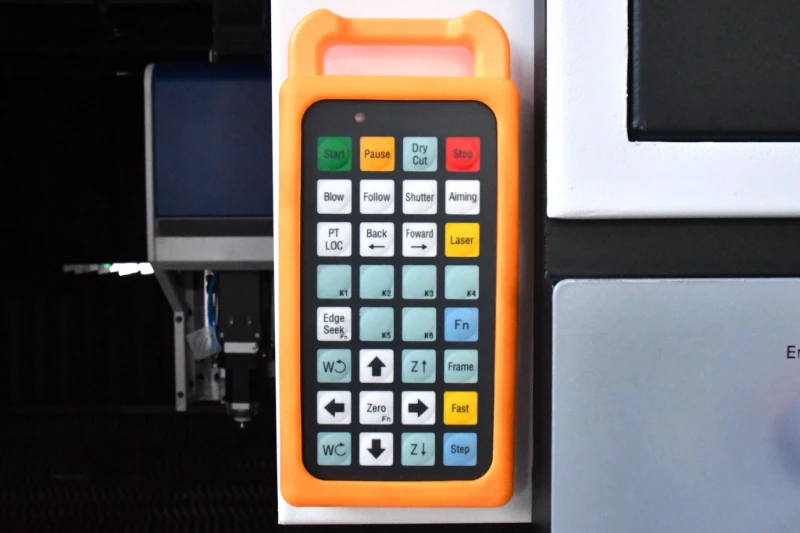

Remote Controller
Wireless control enhances flexible and convenience
The remote controller is used for operating the machine from a distance, making it convenient for operators to perform positioning, debugging, and basic control.
Cooling System
Efficient cooling system prolongs equipment lifespan and maintains stable performance.

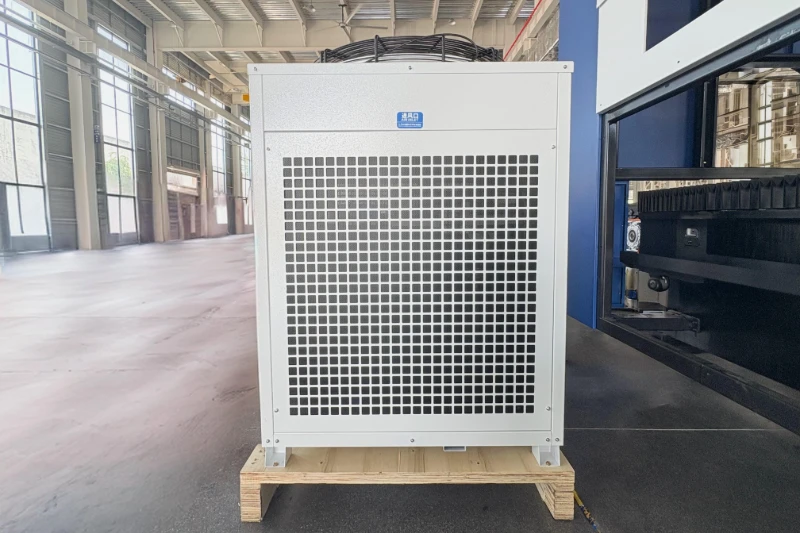

water Chiller
Efficient cooling maintains stable laser output
The water chiller provides circulating cooling for the laser and key components, keeping the equipment operating within a safe temperature range and preventing damage caused by overheating.

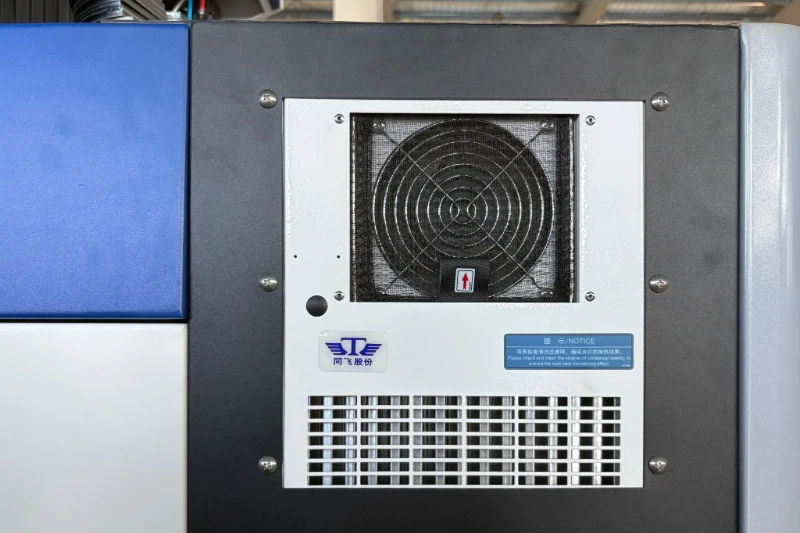

Cabinet Heat Exchanger
Optional
Effective heat dissipation prolongs control system life
The heat exchanger cools the interior of the electrical cabinet, maintaining a clean and constant temperature environment inside the cabinet, and enhancing the reliability and service life of the equipment.
Gas Supply System
Continuous and stable airflow ensures safe and efficient equipment operation.
Pneumatic Valve Block
Precise airflow control boosts equipment efficiency
The pneumatic valve block controls the switching of different gases, regulates flow and stabilizes pressure, ensuring a smooth cutting process and improve cutting quality and reduce gas consumption costs.
Pressure Alarm
Real-time pressure monitoring enhances safety
The gas pressure alarm monitors the pressure in real time. When the pressure is abnormal, it will issue an alarm promptly to prevent processing malfunctions and ensure the safety of cutting.
Dust Extraction System
Effective dust extraction system maintains a clean environment and smooth equipment operation.

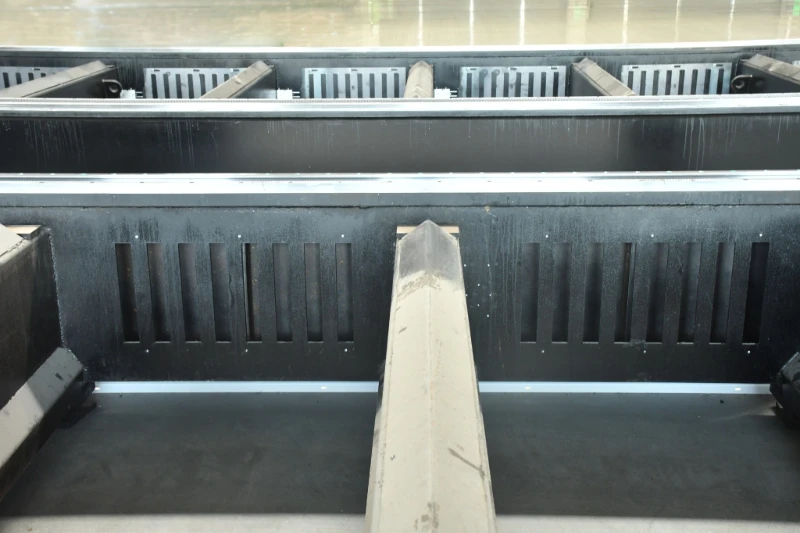

Zoned Dust Removal Structure
Zoned dust extraction keeps work area clean
The cutting area is divided into multiple zones, and the dust removal system of the corresponding zone is precisely activated based on the position of the cutting head. This design effectively mitigates dust.

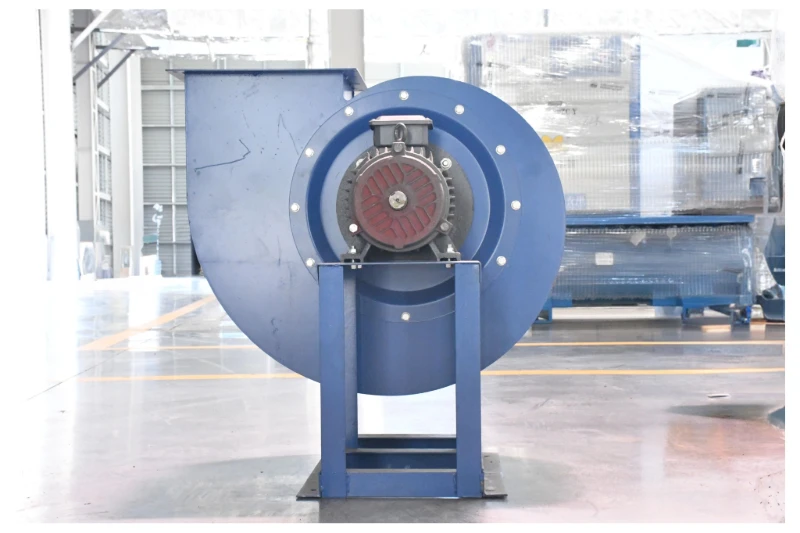

Centrifugal Fan
Optional
Powerful fan ensures efficient system ventilation
Centrifugal fans efficiently remove the dust and waste gas generated during cutting. It features large airflow, strong pressure and stable operation, which helps to keep the working environment clean.
Safety System
Multiple safety protections effectively prevent accidents.

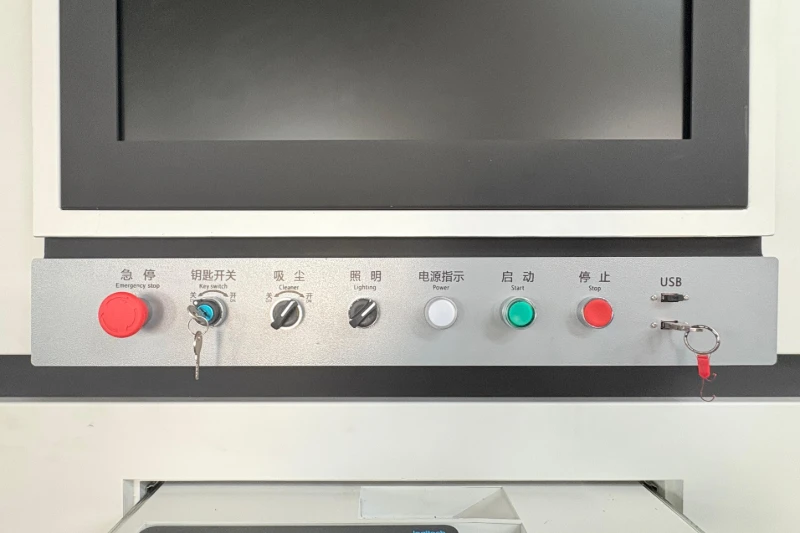

Emergency Stop Button
Quick power cut-off protects personnel and equipment
The emergency stop switch is an important safety protection device, used to immediately cut off the power supply in an emergency to ensure the safety of operators and equipment.
Lubricating System
Continuous lubrication reduces wear and extends equipment life cycle.

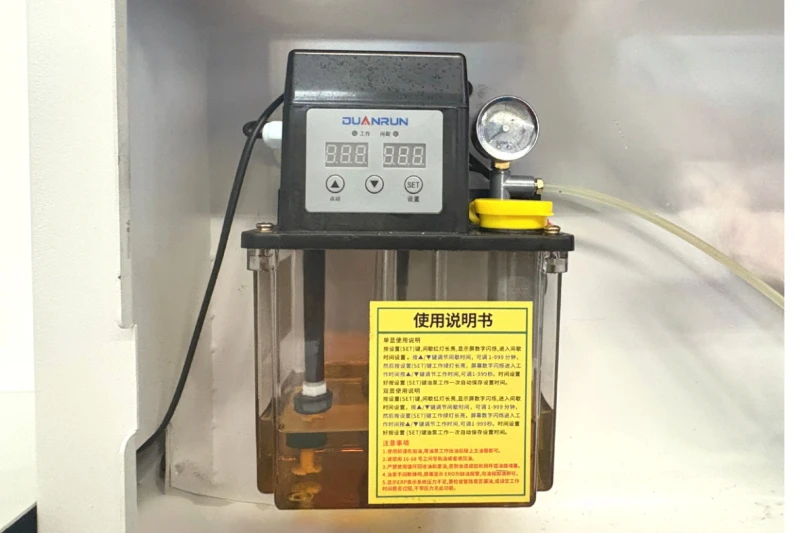

Lubricating Oil Pump
Continuous lubrication reduces mechanical wear
The lubricating oil pump delivers lubricating oil to the moving mechanical parts, reducing friction and wear. It ensures smooth operation of the machine and reduces maintenance costs.

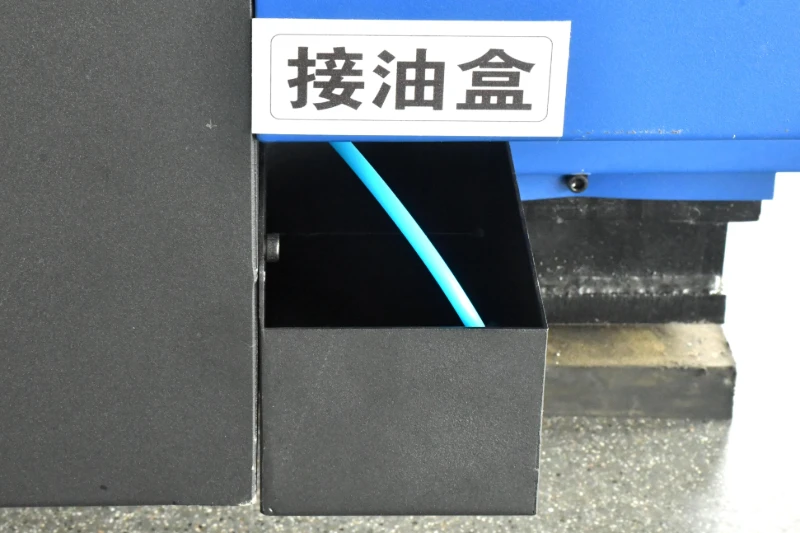

Oil Collection Device
Efficiently collects oil to keep equipment clean
The oil collection device recycles used lubricating oil to prevent the oil from polluting the environment. It helps keep the interior of the equipment clean and extend the service life of its components.
Wear Parts
Wear-resistant and high-temperature resistant ensure stable operation and reduce maintenance burden.

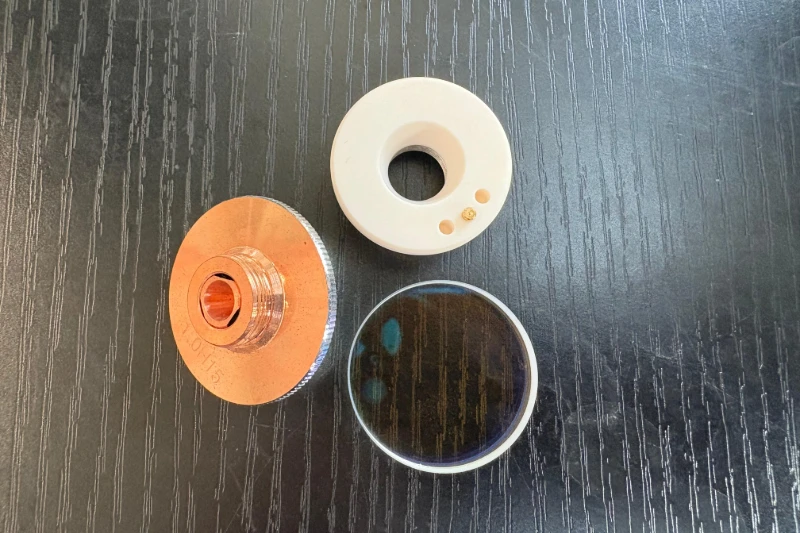

Wear Parts Kit
Complete parts for easy and quick replacement
The wear parts kit includes commonly components, such as nozzles, protective lenses, and ceramic rings, facilitating timely replacement. It helps ensure the continuity of production.
Optional Accessories
Diverse configuration options meet various needs and enhance equipment capabilities.
Air Compressor
Continuous air supply ensures stable equipment operation
The air compressor provides stable compressed air for the laser cutter, supporting gas injection and blow-off during the cutting process.It ensures a clean gas environment around the cutting head, helping to improve cutting quality.
Product Technical Specifications
Please check the technical details you require. If necessary, please contact us. Help Center
| Basic Parameters | Working Area (mm) | 3000*1500 |
| Table Load Bearing (Kg) | 2000 | |
| Overall Dimensions (mm) | 4850*2330*1920 | |
| Overall Weightn (kg) | 2800 | |
| Performance | Max. Acceleration | 1.5G |
| Max. Linkage Speed (m/min) | 120 | |
| Max Positioning Accuracy (m/min) | 100 | |
| X Axis Travel (mm) | 1520 | |
| Y Axis Travel (mm) | 3050 | |
| Z Axis Travel (mm) | 140 | |
| X，Y Axis Positioning Accuracy (mm/m) | ±0.02 | |
| X，Y Axis Repositioning Accuracy (mm/m) | ±0.02 | |
| Mechanical System | Bed | Steel Plate Welding |
| Beam | Aluminum Beam | |
| Unloading Cart | ● | |
| Motion System | Servo Motor and Drive | ● |
| Gear Reducer | ● | |
| Guide Rail | ● | |
| Rack | ● | |
| Bellow Cover | ● | |
| Cable Carrier | ● | |
| Optical System | Laser Source | 3000W 6000W 12000W 20000W (Standard) 20000W (High) 30000W 40000W 60000W |
| Laser Cutting Head | BLT310 BLT421S BLT442 BLT462 BLT663H BLT683H BLT6103H BLT6120H |
|
| Control System | Bus Controller | FSCUT-2000E FSCUT-4000E FSCUT-6000 FSCUT-8000C |
| Operating Software | CypCutE CypCutPro HypCut |
|
| Nesting Software | Cypnest | |
| Electrical System | Electrical | ● |
| Voltage Stabilizer | ● | |
| Industrial PC | ● | |
| Display | 22 inches | |
| Remote Controller | ● | |
| Cooling System | Water Chiller | ● |
| Cabinet Heat Exchanger | ● | |
| Gas Supply System | Pneumatic Valve Block | ● |
| Pressure Alarm | ● | |
| Dust Extraction System | Zoned Dust Removal Structure | ● |
| Centrifugal Fan | ● | |
| Safety System | Emergency Stop | ● |
| Lubrication System | Lubricating Oil Pump | ● |
| Oil Collection Device | ● | |
| Wear Parts | Wear Parts Kit | Protective lens*20 Nozzle*40 Ceramic ring*3 |
| Optional Accessories | Air Compressor | ○ |
| Basic Parameters | Working Area (mm) | 4000*1500 |
| Table Load Bearing (Kg) | 2500 | |
| Overall Dimensions (mm) | 5850*2330*1920 | |
| Overall Weightn (kg) | 3300 | |
| Performance | Max. Acceleration | 1.5G |
| Max. Linkage Speed (m/min) | 120 | |
| Max Positioning Accuracy (m/min) | 100 | |
| X Axis Travel (mm) | 1520 | |
| Y Axis Travel (mm) | 4050 | |
| Z Axis Travel (mm) | 140 | |
| X，Y Axis Positioning Accuracy (mm/m) | ±0.02 | |
| X，Y Axis Repositioning Accuracy (mm/m) | ±0.02 | |
| Mechanical System | Bed | Steel Plate Welding |
| Beam | Aluminum Beam | |
| Unloading Cart | ● | |
| Motion System | Servo Motor and Drive | ● |
| Gear Reducer | ● | |
| Guide Rail | ● | |
| Rack | ● | |
| Bellow Cover | ● | |
| Cable Carrier | ● | |
| Optical System | Laser Source | 3000W 6000W 12000W 20000W (Standard) 20000W (High) 30000W 40000W 60000W |
| Laser Cutting Head | BLT310 BLT421S BLT442 BLT462 BLT663H BLT683H BLT6103H BLT6120H |
|
| Control System | Bus Controller | FSCUT-2000E FSCUT-4000E FSCUT-6000 FSCUT-8000C |
| Operating Software | CypCutE CypCutPro HypCut |
|
| Nesting Software | Cypnest | |
| Electrical System | Electrical | ● |
| Voltage Stabilizer | ● | |
| Industrial PC | ● | |
| Display | 22 inches | |
| Remote Controller | ● | |
| Cooling System | Water Chiller | ● |
| Cabinet Heat Exchanger | ● | |
| Gas Supply System | Pneumatic Valve Block | ● |
| Pressure Alarm | ● | |
| Dust Extraction System | Zoned Dust Removal Structure | ● |
| Centrifugal Fan | ● | |
| Safety System | Emergency Stop | ● |
| Lubrication System | Lubricating Oil Pump | ● |
| Oil Collection Device | ● | |
| Wear Parts | Wear Parts Kit | Protective lens*20 Nozzle*40 Ceramic ring*3 |
| Optional Accessories | Air Compressor | ○ |
| Basic Parameters | Working Area (mm) | 6000*1500 |
| Table Load Bearing (Kg) | 3000 | |
| Overall Dimensions (mm) | 7920*2330*1920 | |
| Overall Weightn (kg) | 4500 | |
| Performance | Max. Acceleration | 1.5G |
| Max. Linkage Speed (m/min) | 120 | |
| Max Positioning Accuracy (m/min) | 100 | |
| X Axis Travel (mm) | 1520 | |
| Y Axis Travel (mm) | 6050 | |
| Z Axis Travel (mm) | 140 | |
| X，Y Axis Positioning Accuracy (mm/m) | ±0.02 | |
| X，Y Axis Repositioning Accuracy (mm/m) | ±0.02 | |
| Mechanical System | Bed | Steel Plate Welding |
| Beam | Aluminum Beam | |
| Unloading Cart | ● | |
| Motion System | Servo Motor and Drive | ● |
| Gear Reducer | ● | |
| Guide Rail | ● | |
| Rack | ● | |
| Bellow Cover | ● | |
| Cable Carrier | ● | |
| Optical System | Laser Source | 3000W 6000W 12000W 20000W (Standard) 20000W (High) 30000W 40000W 60000W |
| Laser Cutting Head | BLT310 BLT421S BLT442 BLT462 BLT663H BLT683H BLT6103H BLT6120H |
|
| Control System | Bus Controller | FSCUT-2000E FSCUT-4000E FSCUT-6000 FSCUT-8000C |
| Operating Software | CypCutE CypCutPro HypCut |
|
| Nesting Software | Cypnest | |
| Electrical System | Electrical | ● |
| Voltage Stabilizer | ● | |
| Industrial PC | ● | |
| Display | 22 inches | |
| Remote Controller | ● | |
| Cooling System | Water Chiller | ● |
| Cabinet Heat Exchanger | ● | |
| Gas Supply System | Pneumatic Valve Block | ● |
| Pressure Alarm | ● | |
| Dust Extraction System | Zoned Dust Removal Structure | ● |
| Centrifugal Fan | ● | |
| Safety System | Emergency Stop | ● |
| Lubrication System | Lubricating Oil Pump | ● |
| Oil Collection Device | ● | |
| Wear Parts | Wear Parts Kit | Protective lens*20 Nozzle*40 Ceramic ring*3 |
| Optional Accessories | Air Compressor | ○ |
| Basic Parameters | Working Area (mm) | 4000*2000 |
| Table Load Bearing (Kg) | 3000 | |
| Overall Dimensions (mm) | 5850*2880*1920 | |
| Overall Weightn (kg) | 3600 | |
| Performance | Max. Acceleration | 1.5G |
| Max. Linkage Speed (m/min) | 120 | |
| Max Positioning Accuracy (m/min) | 100 | |
| X Axis Travel (mm) | 2020 | |
| Y Axis Travel (mm) | 4050 | |
| Z Axis Travel (mm) | 140 | |
| X，Y Axis Positioning Accuracy (mm/m) | ±0.02 | |
| X，Y Axis Repositioning Accuracy (mm/m) | ±0.02 | |
| Mechanical System | Bed | Steel Plate Welding |
| Beam | Aluminum Beam | |
| Unloading Cart | ● | |
| Motion System | Servo Motor and Drive | ● |
| Gear Reducer | ● | |
| Guide Rail | ● | |
| Rack | ● | |
| Bellow Cover | ● | |
| Cable Carrier | ● | |
| Optical System | Laser Source | 3000W 6000W 12000W 20000W (Standard) 20000W (High) 30000W 40000W 60000W |
| Laser Cutting Head | BLT310 BLT421S BLT442 BLT462 BLT663H BLT683H BLT6103H BLT6120H |
|
| Control System | Bus Controller | FSCUT-2000E FSCUT-4000E FSCUT-6000 FSCUT-8000C |
| Operating Software | CypCutE CypCutPro HypCut |
|
| Nesting Software | Cypnest | |
| Electrical System | Electrical | ● |
| Voltage Stabilizer | ● | |
| Industrial PC | ● | |
| Display | 22 inches | |
| Remote Controller | ● | |
| Cooling System | Water Chiller | ● |
| Cabinet Heat Exchanger | ● | |
| Gas Supply System | Pneumatic Valve Block | ● |
| Pressure Alarm | ● | |
| Dust Extraction System | Zoned Dust Removal Structure | ● |
| Centrifugal Fan | ● | |
| Safety System | Emergency Stop | ● |
| Lubrication System | Lubricating Oil Pump | ● |
| Oil Collection Device | ● | |
| Wear Parts | Wear Parts Kit | Protective lens*20 Nozzle*40 Ceramic ring*3 |
| Optional Accessories | Air Compressor | ○ |
| Basic Parameters | Working Area (mm) | 6000*2000 |
| Table Load Bearing (Kg) | 3500 | |
| Overall Dimensions (mm) | 7920*2880*1920 | |
| Overall Weightn (kg) | 5200 | |
| Performance | Max. Acceleration | 1.5G |
| Max. Linkage Speed (m/min) | 120 | |
| Max Positioning Accuracy (m/min) | 100 | |
| X Axis Travel (mm) | 2020 | |
| Y Axis Travel (mm) | 6050 | |
| Z Axis Travel (mm) | 140 | |
| X，Y Axis Positioning Accuracy (mm/m) | ±0.02 | |
| X，Y Axis Repositioning Accuracy (mm/m) | ±0.02 | |
| Mechanical System | Bed | Steel Plate Welding |
| Beam | Aluminum Beam | |
| Unloading Cart | ● | |
| Motion System | Servo Motor and Drive | ● |
| Gear Reducer | ● | |
| Guide Rail | ● | |
| Rack | ● | |
| Bellow Cover | ● | |
| Cable Carrier | ● | |
| Optical System | Laser Source | 3000W 6000W 12000W 20000W (Standard) 20000W (High) 30000W 40000W 60000W |
| Laser Cutting Head | BLT310 BLT421S BLT442 BLT462 BLT663H BLT683H BLT6103H BLT6120H |
|
| Control System | Bus Controller | FSCUT-2000E FSCUT-4000E FSCUT-6000 FSCUT-8000C |
| Operating Software | CypCutE CypCutPro HypCut |
|
| Nesting Software | Cypnest | |
| Electrical System | Electrical | ● |
| Voltage Stabilizer | ● | |
| Industrial PC | ● | |
| Display | 22 inches | |
| Remote Controller | ● | |
| Cooling System | Water Chiller | ● |
| Cabinet Heat Exchanger | ● | |
| Gas Supply System | Pneumatic Valve Block | ● |
| Pressure Alarm | ● | |
| Dust Extraction System | Zoned Dust Removal Structure | ● |
| Centrifugal Fan | ● | |
| Safety System | Emergency Stop | ● |
| Lubrication System | Lubricating Oil Pump | ● |
| Oil Collection Device | ● | |
| Wear Parts | Wear Parts Kit | Protective lens*20 Nozzle*40 Ceramic ring*3 |
| Optional Accessories | Air Compressor | ○ |
| Basic Parameters | Working Area (mm) | 6300*2200 |
| Table Load Bearing (Kg) | 5000 | |
| Overall Dimensions (mm) | 8330*3090*1920 | |
| Overall Weightn (kg) | 6000 | |
| Performance | Max. Acceleration | 1.5G |
| Max. Linkage Speed (m/min) | 120 | |
| Max Positioning Accuracy (m/min) | 100 | |
| X Axis Travel (mm) | 2220 | |
| Y Axis Travel (mm) | 6350 | |
| Z Axis Travel (mm) | 140 | |
| X，Y Axis Positioning Accuracy (mm/m) | ±0.02 | |
| X，Y Axis Repositioning Accuracy (mm/m) | ±0.02 | |
| Mechanical System | Bed | Steel Plate Welding |
| Beam | Aluminum Beam | |
| Unloading Cart | ● | |
| Motion System | Servo Motor and Drive | ● |
| Gear Reducer | ● | |
| Guide Rail | ● | |
| Rack | ● | |
| Bellow Cover | ● | |
| Cable Carrier | ● | |
| Optical System | Laser Source | 3000W 6000W 12000W 20000W (Standard) 20000W (High) 30000W 40000W 60000W |
| Laser Cutting Head | BLT310 BLT421S BLT442 BLT462 BLT663H BLT683H BLT6103H BLT6120H |
|
| Control System | Bus Controller | FSCUT-2000E FSCUT-4000E FSCUT-6000 FSCUT-8000C |
| Operating Software | CypCutE CypCutPro HypCut |
|
| Nesting Software | Cypnest | |
| Electrical System | Electrical | ● |
| Voltage Stabilizer | ● | |
| Industrial PC | ● | |
| Display | 22 inches | |
| Remote Controller | ● | |
| Cooling System | Water Chiller | ● |
| Cabinet Heat Exchanger | ● | |
| Gas Supply System | Pneumatic Valve Block | ● |
| Pressure Alarm | ● | |
| Dust Extraction System | Zoned Dust Removal Structure | ● |
| Centrifugal Fan | ● | |
| Safety System | Emergency Stop | ● |
| Lubrication System | Lubricating Oil Pump | ● |
| Oil Collection Device | ● | |
| Wear Parts | Wear Parts Kit | Protective lens*20 Nozzle*40 Ceramic ring*3 |
| Optional Accessories | Air Compressor | ○ |
| Basic Parameters | Working Area (mm) | 6300*2500 |
| Table Load Bearing (Kg) | 12500 | |
| Overall Dimensions (mm) | 8330*3570*2150 | |
| Overall Weightn (kg) | 6500 | |
| Performance | Max. Acceleration | 1.2G |
| Max. Linkage Speed (m/min) | 120 | |
| Max Positioning Accuracy (m/min) | 100 | |
| X Axis Travel (mm) | 2520 | |
| Y Axis Travel (mm) | 6350 | |
| Z Axis Travel (mm) | 150 | |
| X，Y Axis Positioning Accuracy (mm/m) | ±0.02 | |
| X，Y Axis Repositioning Accuracy (mm/m) | ±0.02 | |
| Mechanical System | Bed | Steel Plate Welding |
| Beam | Aluminum Beam | |
| Unloading Cart | ● | |
| Motion System | Servo Motor and Drive | ● |
| Gear Reducer | ● | |
| Guide Rail | ● | |
| Rack | ● | |
| Bellow Cover | ● | |
| Cable Carrier | ● | |
| Optical System | Laser Source | 3000W 6000W 12000W 20000W (Standard) 20000W (High) 30000W 40000W 60000W |
| Laser Cutting Head | BLT310 BLT421S BLT442 BLT462 BLT663H BLT683H BLT6103H BLT6120H |
|
| Control System | Bus Controller | FSCUT-2000E FSCUT-4000E FSCUT-6000 FSCUT-8000C |
| Operating Software | CypCutE CypCutPro HypCut |
|
| Nesting Software | Cypnest | |
| Electrical System | Electrical | ● |
| Voltage Stabilizer | ● | |
| Industrial PC | ● | |
| Display | 22 inches | |
| Remote Controller | ● | |
| Cooling System | Water Chiller | ● |
| Cabinet Heat Exchanger | ● | |
| Gas Supply System | Pneumatic Valve Block | ● |
| Pressure Alarm | ● | |
| Dust Extraction System | Zoned Dust Removal Structure | ● |
| Centrifugal Fan | ● | |
| Safety System | Emergency Stop | ● |
| Lubrication System | Lubricating Oil Pump | ● |
| Oil Collection Device | ● | |
| Wear Parts | Wear Parts Kit | Protective lens*20 Nozzle*40 Ceramic ring*3 |
| Optional Accessories | Air Compressor | ○ |
| Basic Parameters | Working Area (mm) | 8300*2500 |
| Table Load Bearing (Kg) | 16500 | |
| Overall Dimensions (mm) | 10340*3570*2150 | |
| Overall Weightn (kg) | 9000 | |
| Performance | Max. Acceleration | 1.2G |
| Max. Linkage Speed (m/min) | 120 | |
| Max Positioning Accuracy (m/min) | 100 | |
| X Axis Travel (mm) | 2520 | |
| Y Axis Travel (mm) | 8350 | |
| Z Axis Travel (mm) | 150 | |
| X，Y Axis Positioning Accuracy (mm/m) | ±0.02 | |
| X，Y Axis Repositioning Accuracy (mm/m) | ±0.02 | |
| Mechanical System | Bed | Steel Plate Welding |
| Beam | Aluminum Beam | |
| Unloading Cart | ● | |
| Motion System | Servo Motor and Drive | ● |
| Gear Reducer | ● | |
| Guide Rail | ● | |
| Rack | ● | |
| Bellow Cover | ● | |
| Cable Carrier | ● | |
| Optical System | Laser Source | 3000W 6000W 12000W 20000W (Standard) 20000W (High) 30000W 40000W 60000W |
| Laser Cutting Head | BLT310 BLT421S BLT442 BLT462 BLT663H BLT683H BLT6103H BLT6120H |
|
| Control System | Bus Controller | FSCUT-2000E FSCUT-4000E FSCUT-6000 FSCUT-8000C |
| Operating Software | CypCutE CypCutPro HypCut |
|
| Nesting Software | Cypnest | |
| Electrical System | Electrical | ● |
| Voltage Stabilizer | ● | |
| Industrial PC | ● | |
| Display | 22 inches | |
| Remote Controller | ● | |
| Cooling System | Water Chiller | ● |
| Cabinet Heat Exchanger | ● | |
| Gas Supply System | Pneumatic Valve Block | ● |
| Pressure Alarm | ● | |
| Dust Extraction System | Zoned Dust Removal Structure | ● |
| Centrifugal Fan | ● | |
| Safety System | Emergency Stop | ● |
| Lubrication System | Lubricating Oil Pump | ● |
| Oil Collection Device | ● | |
| Wear Parts | Wear Parts Kit | Protective lens*20 Nozzle*40 Ceramic ring*3 |
| Optional Accessories | Air Compressor | ○ |
| Basic Parameters | Working Area (mm) | 13000*2500 |
| Table Load Bearing (Kg) | 26000 | |
| Overall Dimensions (mm) | 15700*3570*2150 | |
| Overall Weightn (kg) | 14000 | |
| Performance | Max. Acceleration | 1.2G |
| Max. Linkage Speed (m/min) | 120 | |
| Max Positioning Accuracy (m/min) | 100 | |
| X Axis Travel (mm) | 2520 | |
| Y Axis Travel (mm) | 13050 | |
| Z Axis Travel (mm) | 150 | |
| X，Y Axis Positioning Accuracy (mm/m) | ±0.02 | |
| X，Y Axis Repositioning Accuracy (mm/m) | ±0.02 | |
| Mechanical System | Bed | Steel Plate Welding |
| Beam | Aluminum Beam | |
| Unloading Cart | ● | |
| Motion System | Servo Motor and Drive | ● |
| Gear Reducer | ● | |
| Guide Rail | ● | |
| Rack | ● | |
| Bellow Cover | ● | |
| Cable Carrier | ● | |
| Optical System | Laser Source | 3000W 6000W 12000W 20000W (Standard) 20000W (High) 30000W 40000W 60000W |
| Laser Cutting Head | BLT310 BLT421S BLT442 BLT462 BLT663H BLT683H BLT6103H BLT6120H |
|
| Control System | Bus Controller | FSCUT-2000E FSCUT-4000E FSCUT-6000 FSCUT-8000C |
| Operating Software | CypCutE CypCutPro HypCut |
|
| Nesting Software | Cypnest | |
| Electrical System | Electrical | ● |
| Voltage Stabilizer | ● | |
| Industrial PC | ● | |
| Display | 22 inches | |
| Remote Controller | ● | |
| Cooling System | Water Chiller | ● |
| Cabinet Heat Exchanger | ● | |
| Gas Supply System | Pneumatic Valve Block | ● |
| Pressure Alarm | ● | |
| Dust Extraction System | Zoned Dust Removal Structure | ● |
| Centrifugal Fan | ● | |
| Safety System | Emergency Stop | ● |
| Lubrication System | Lubricating Oil Pump | ● |
| Oil Collection Device | ● | |
| Wear Parts | Wear Parts Kit | Protective lens*20 Nozzle*40 Ceramic ring*3 |
| Optional Accessories | Air Compressor | ○ |
Automatic Quotation
Just follow 4 steps to quickly get a preliminary quote, which will help you make a budget in advance.
How to choose model?
Step 1
Confirm the product series and model
Step 2
Selecte the optional configurations you like
Step 3
Fill in your information correctly and submit it
Step 4
Check the quotation in your email
Get in Touch with Us Now!
Please fill in the form and describe your requirements. Our team will get back to you within 24 hours.
