Electro-Hydraulic Synchronous CNC Press Brake Machine

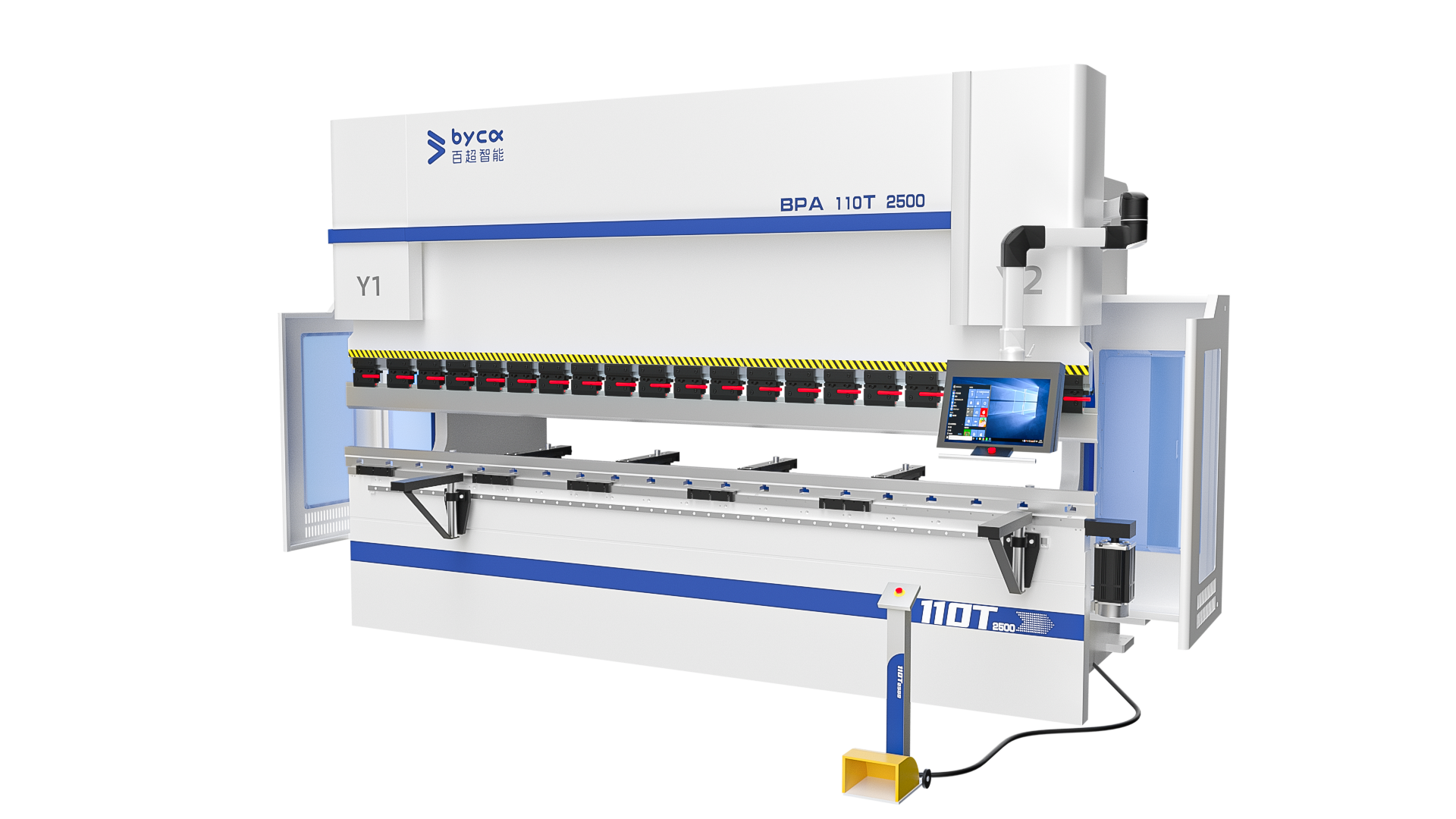

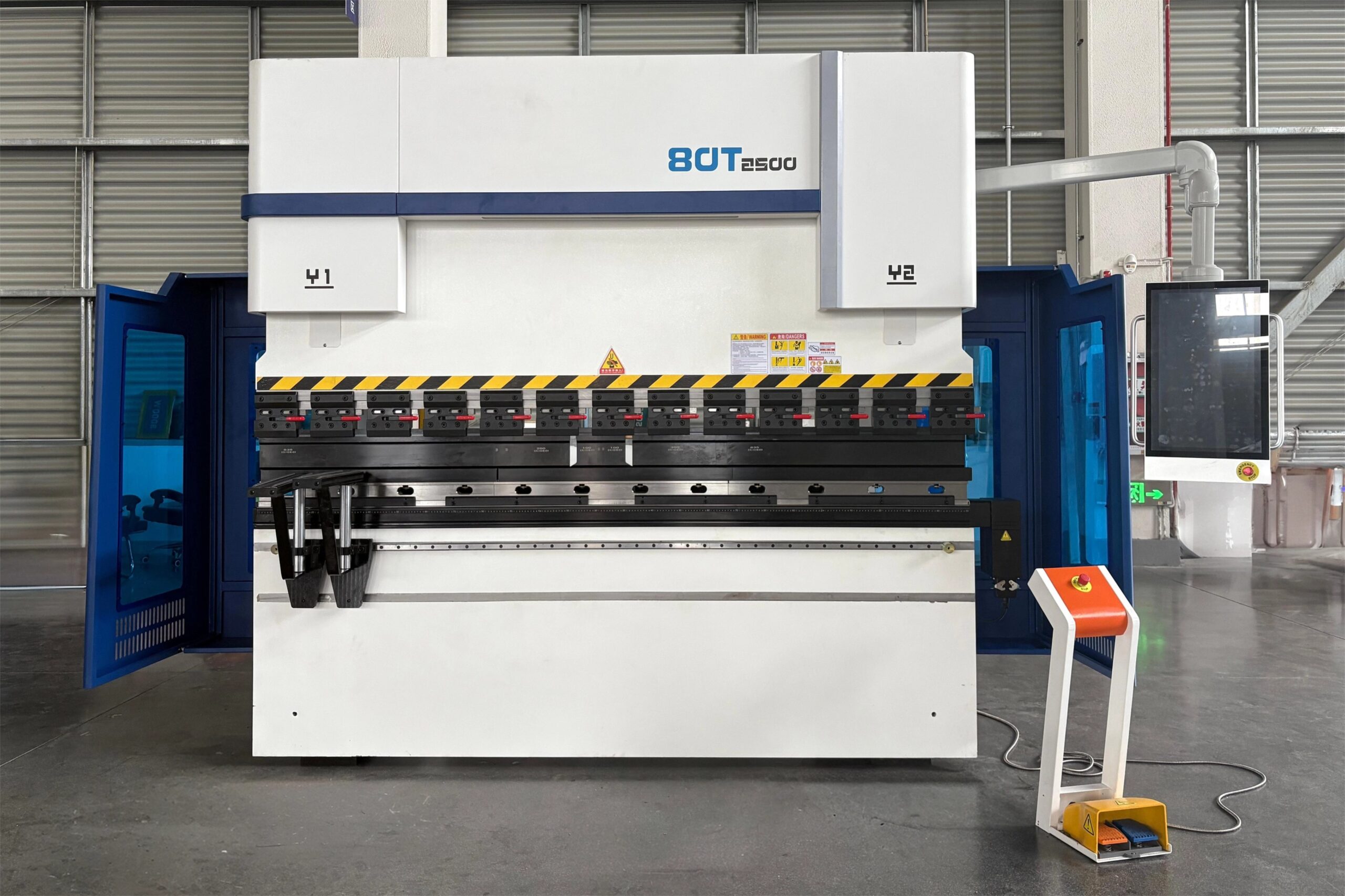

BPA Series Electro-Hydraulic Synchronous CNC Press Brake Machine

Choose the Electro-Hydraulic Synchronous CNC Press Brake Machine for high-precision control and stable performance, guaranteeing efficient forming and accurate bends to boost your productivity.

Automatic Quote

Functional Features

Easy Operation

CNC controller with intuitive interface simplifies programming, enabling quick setup, batch production, and reduced operator workload.

Stable Synchronization

Ensures both sides of the ram move perfectly in sync, preventing distortion on long or complex parts

Flexible Tooling

Compatible with various dies and accessories for diverse bending angles and sheet thicknesses

Mechanical System

The system provides excellent rigidity and stability, ensuring bending accuracy and structural reliability during long-term, high-load operation.

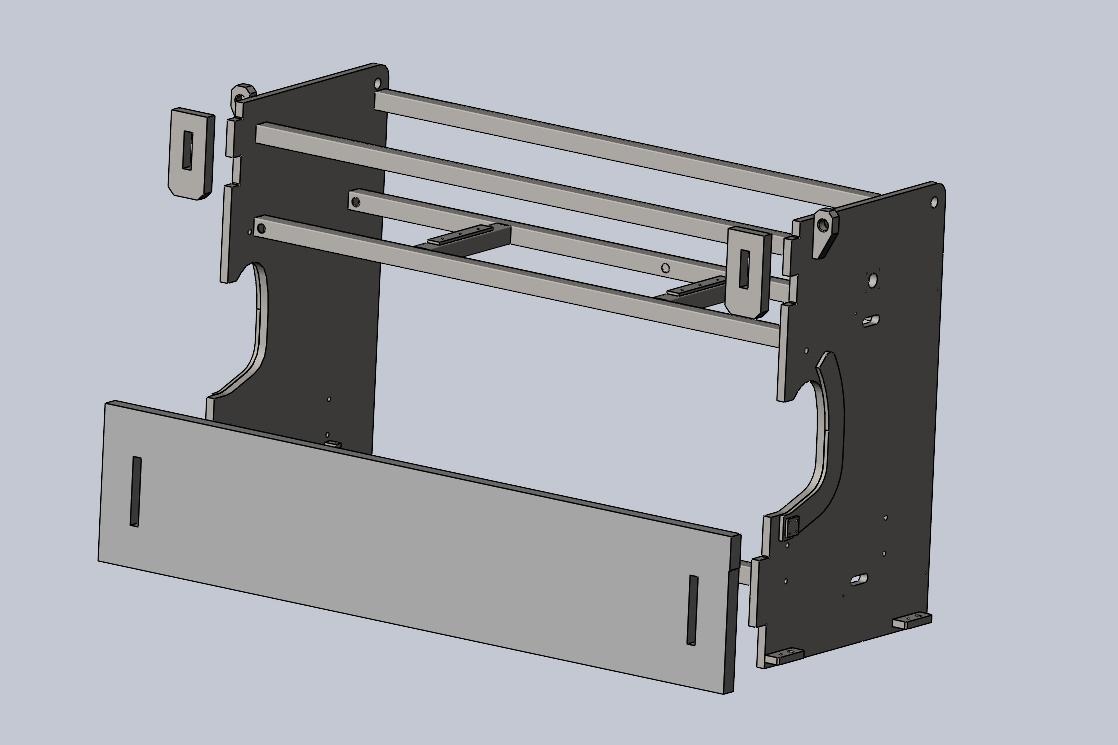

BED

Rigid design ensures stability

The bed is designed with high-strength steel structure, featuring excellent load-bearing capacity and anti-deformation performance.

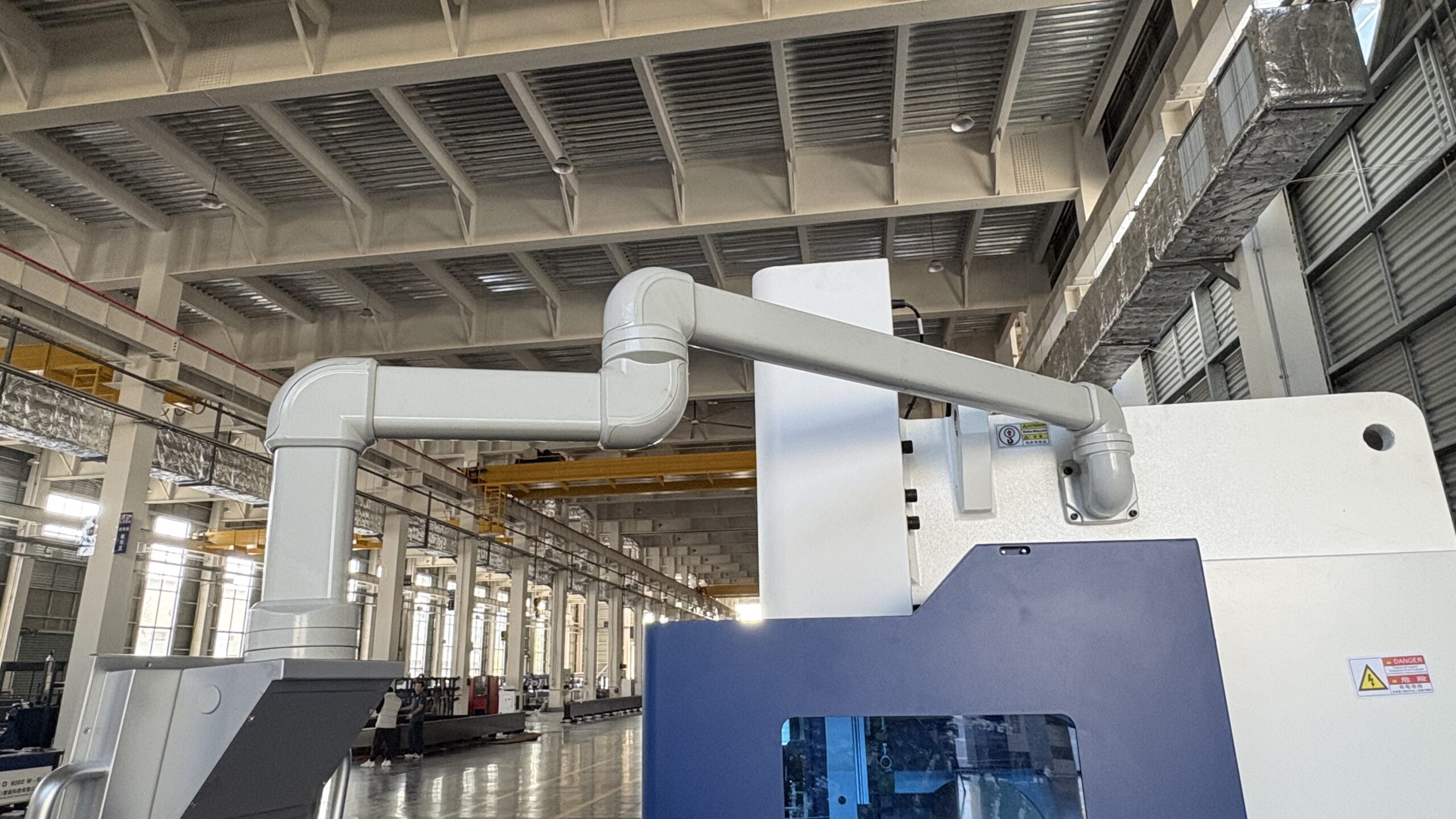

Control Pendant Arm

Stable support improves operation convenience

The Control Pendant Arm holds the touch screen and CNC unit, allowing adjustable angles for optimal ergonomics.

Working Table

Stable support ensures precision

The flat and rigid surface supports the workpiece securely, preventing movement that may affect bending consistency.

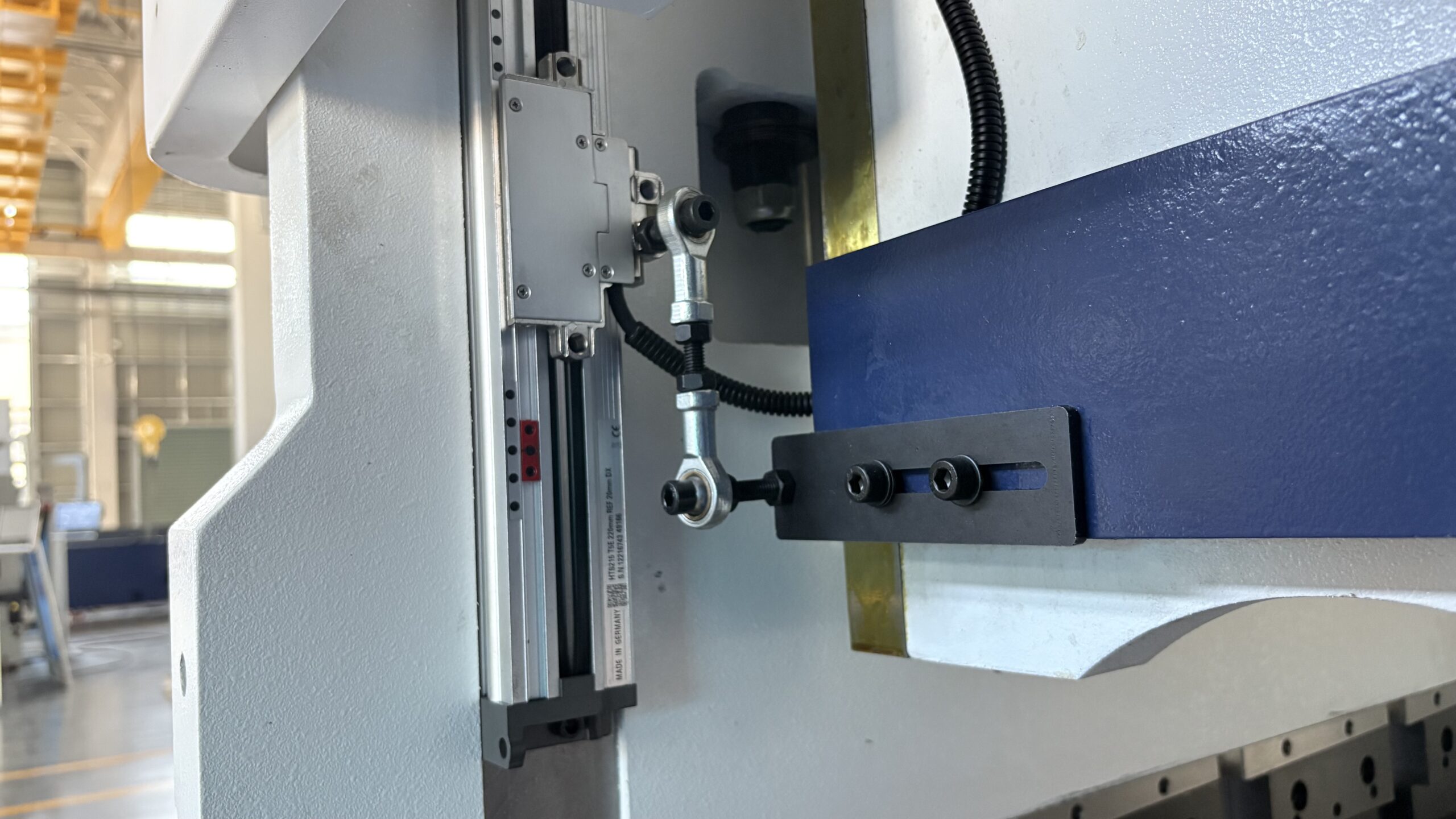

Linear ENCODER

Real-time position feedback enhances control accuracy

It collects slide displacement data and works with the CNC system for precise closed-loop position control.

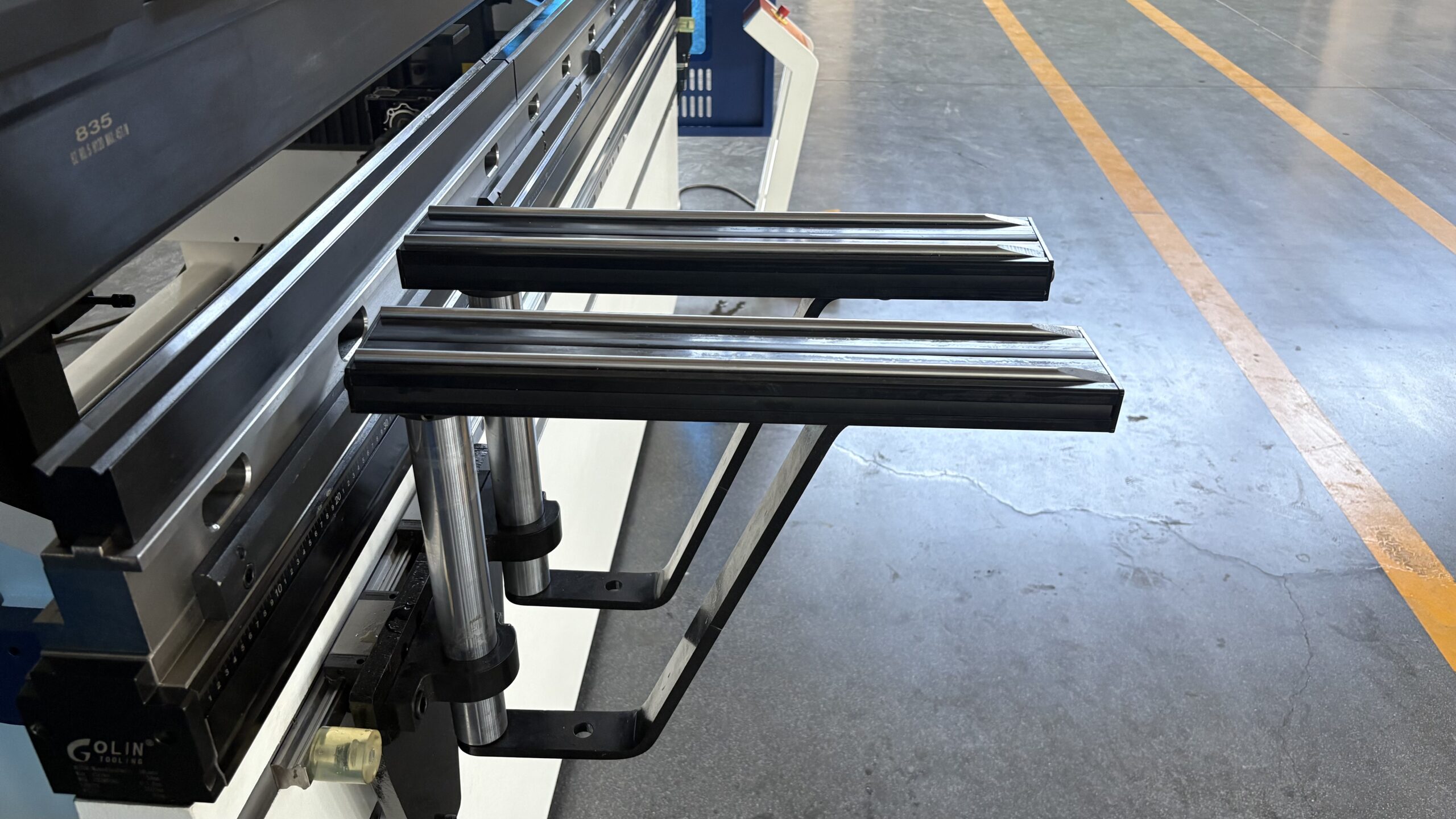

Support Arm
Optional

Auxiliary support reduces operator fatigue

It provides reliable support for oversized parts, preventing sagging and reducing manual handling effort.

Learn More

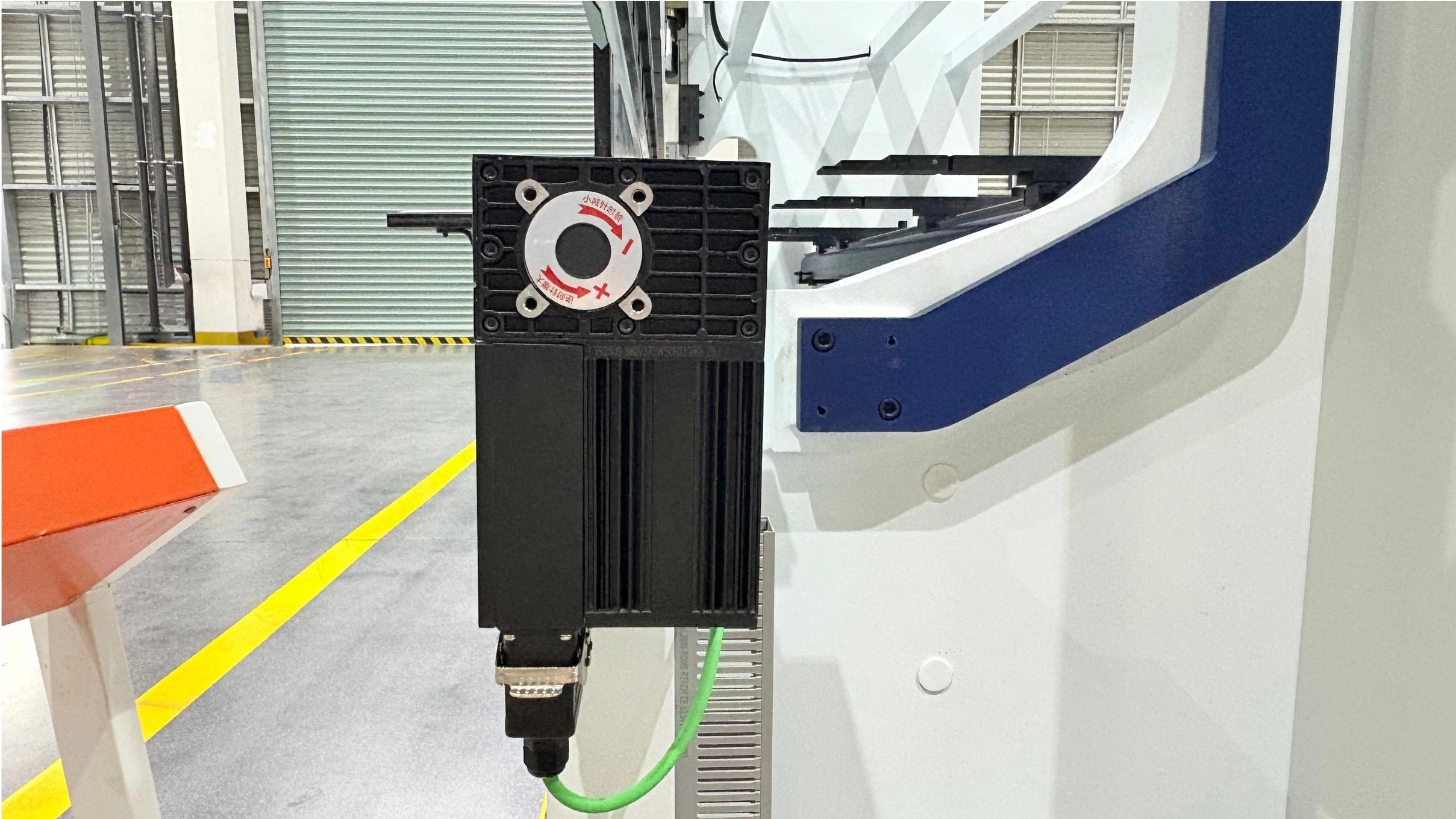

Deflection Compensation

Automatically corrects deformation for consistent angles

It adjusts the ram’s position in real-time based on load to ensure uniform bending results regardless of material or force.

Hydraulic System

With servo-controlled technology, the system delivers stable power output and rapid response for efficient, energy-saving, and precise bending.

Main Servo Motor

Drives the hydraulic system for efficient bending

Delivers high torque and fast response, powering the hydraulic cylinder for precision bending operations.

Hydraulic Oil Tank

Stores hydraulic oil and maintains system stability

Designed with good sealing and heat dissipation to ensure long-term cleanliness and consistent pressure output.

Pump

Provides continuous oil pressure for smooth operation

Continuously supplies pressure to actuators, enabling reliable and efficient movement during processing.

Valve Block

Controls oil flow paths for coordinated actions

Manages fluid distribution efficiently, ensuring smooth transitions and synchronized system movements.

Main Hydraulic Cylinder

Provides stable motion for high-precision bending

Drives the ram up and down with smooth, powerful action, ensuring accurate forming.

Hydraulic Fittings

Sealed connections prevent leakage and ensure safety

Durable and pressure-resistant fittings secure oil paths and protect the system from leaks.

Backgauge System

The system offers fast positioning and high repeatability to handle various workpiece sizes efficiently and accurately.

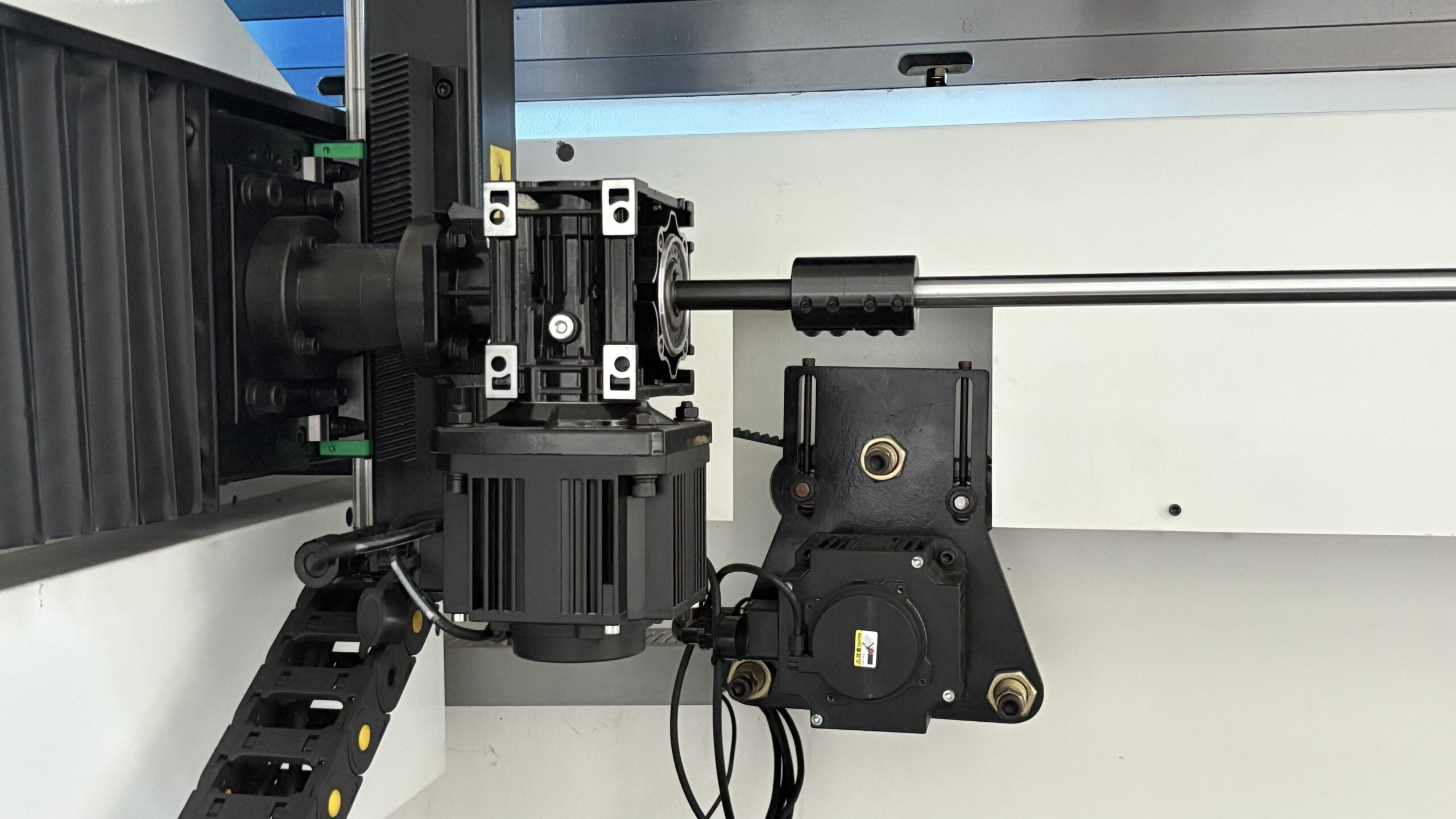

Servo Motor & Drive

Controls gauge movement for accurate positioning

It enables fast, precise motion of the backgauge, improving setup efficiency and consistency.

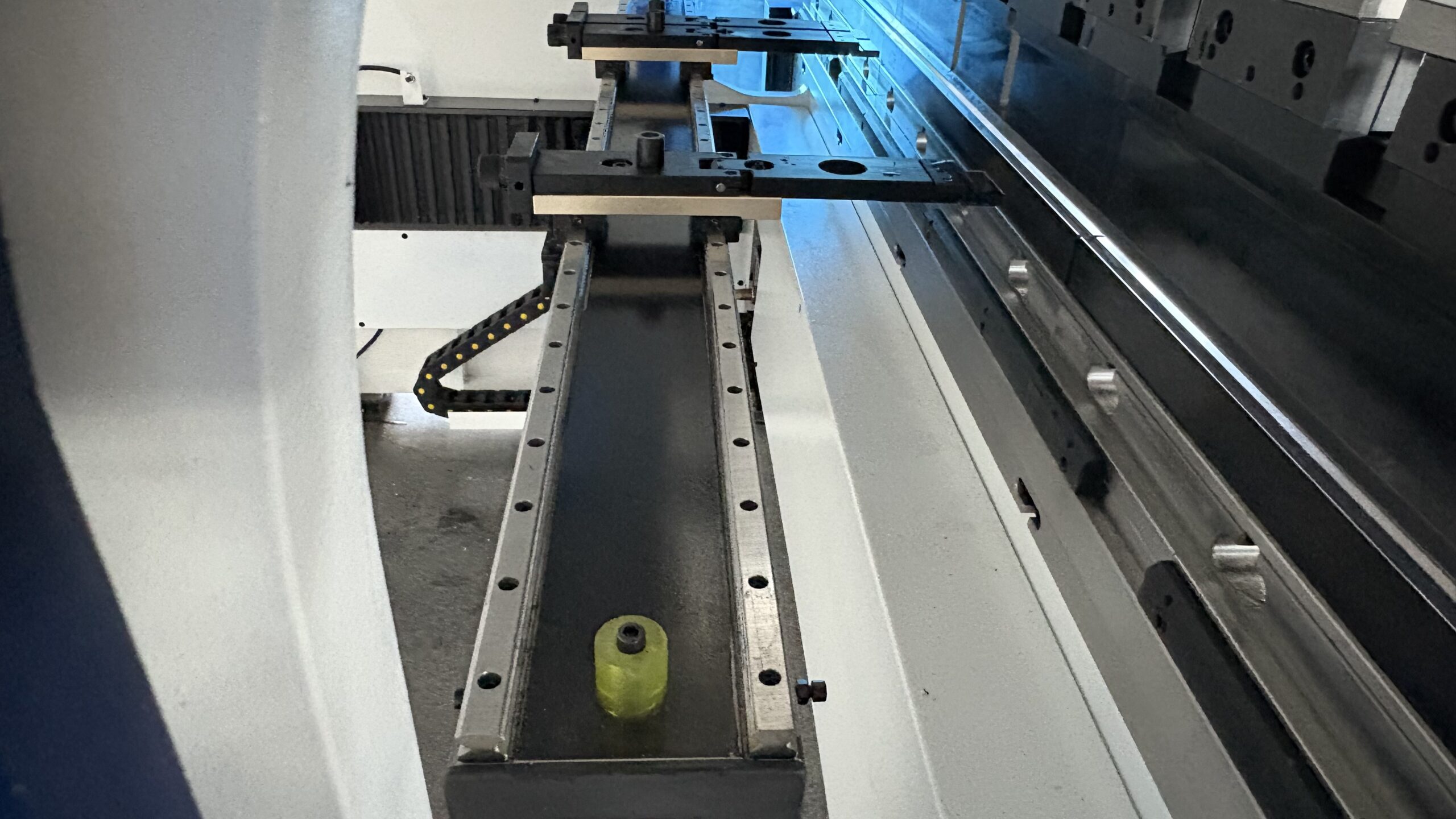

Linear Guide Rail

Guides smooth movement and extends service life

Provides low-friction motion to reduce wear and maintain long-term alignment.

Ball Screw

High-precision transmission for repeatable positioning

Delivers accurate motion control for reliable and consistent backgauge performance during repeated positioning.

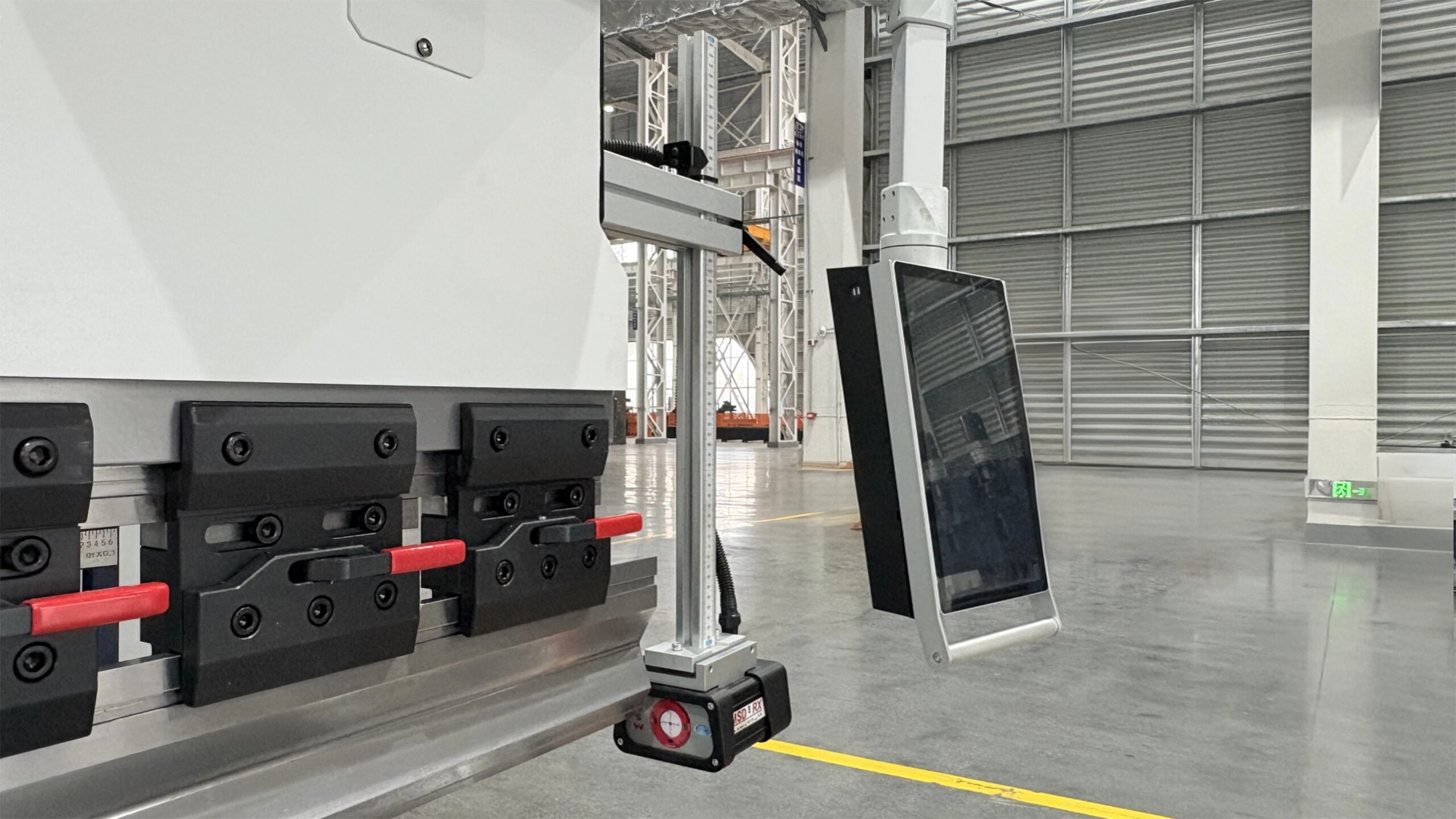

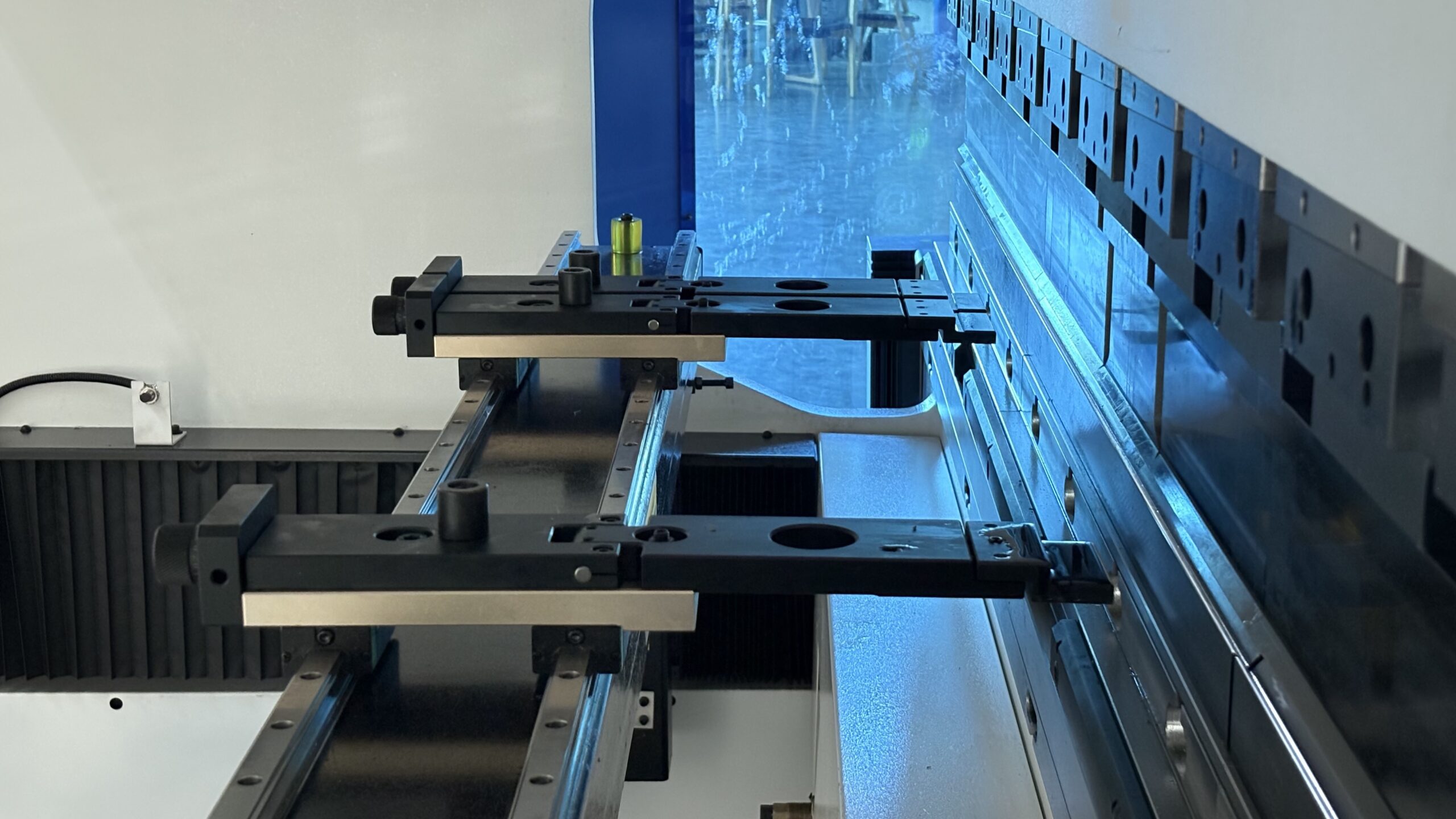

Back Gauge Finger

Adjustable positioning to fit various workpieces

Flexible positioning allows compatibility with different workpiece sizes and shapes.

Control System

Supporting graphical programming and multi-axis coordination, the system simplifies operation and significantly enhances automation and processing consistency.

CNC Controller
Optional

Enables graphic programming and multi-axis coordination

Supports graphic programming and multi-axis linkage capabilities for flexible and automated operation.

Learn More

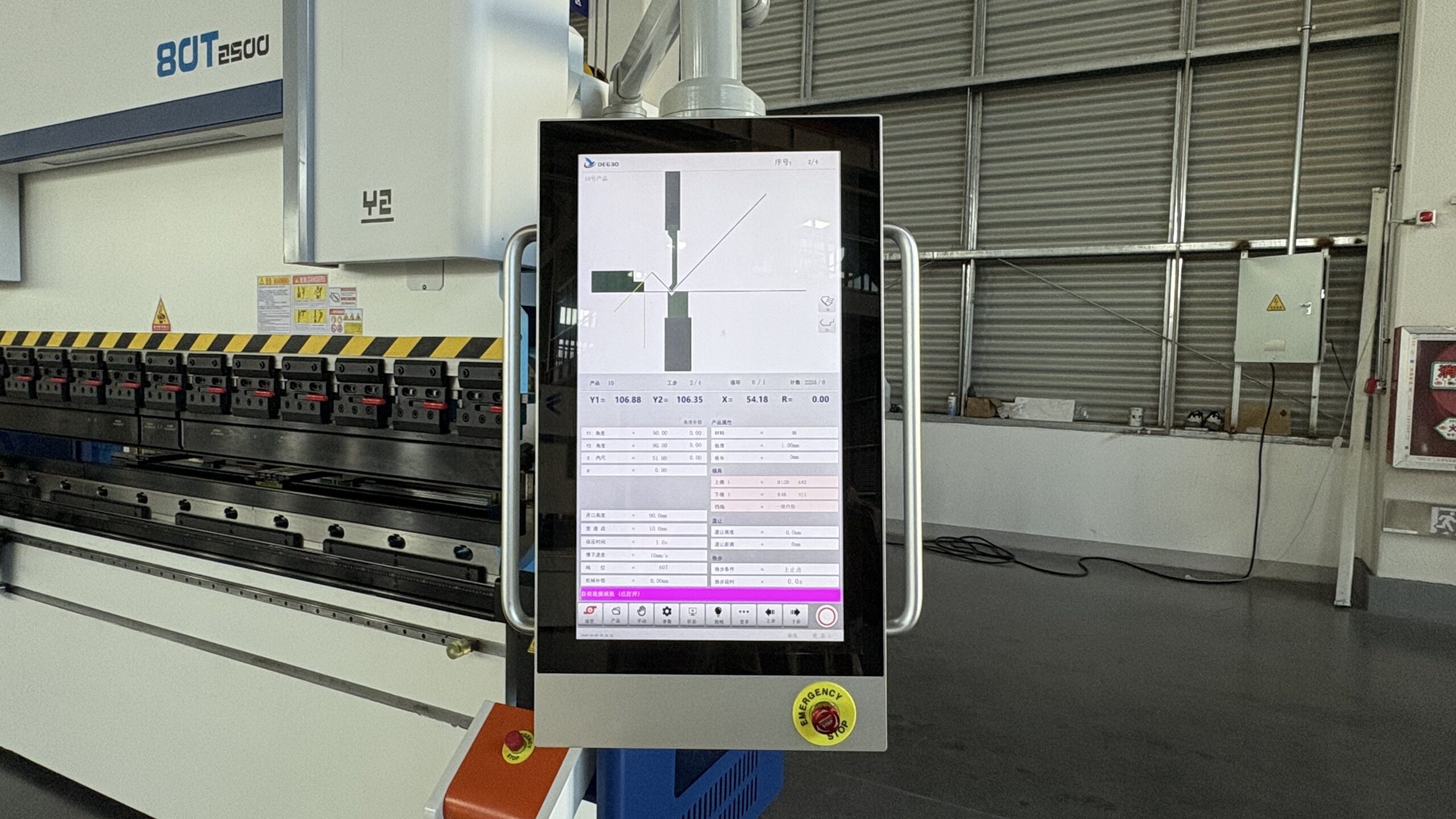

HMI Touch Panel

Intuitive interface enhances user experience

Features a clear and responsive touchscreen for real-time settings, monitoring, and operation.

Electrical System

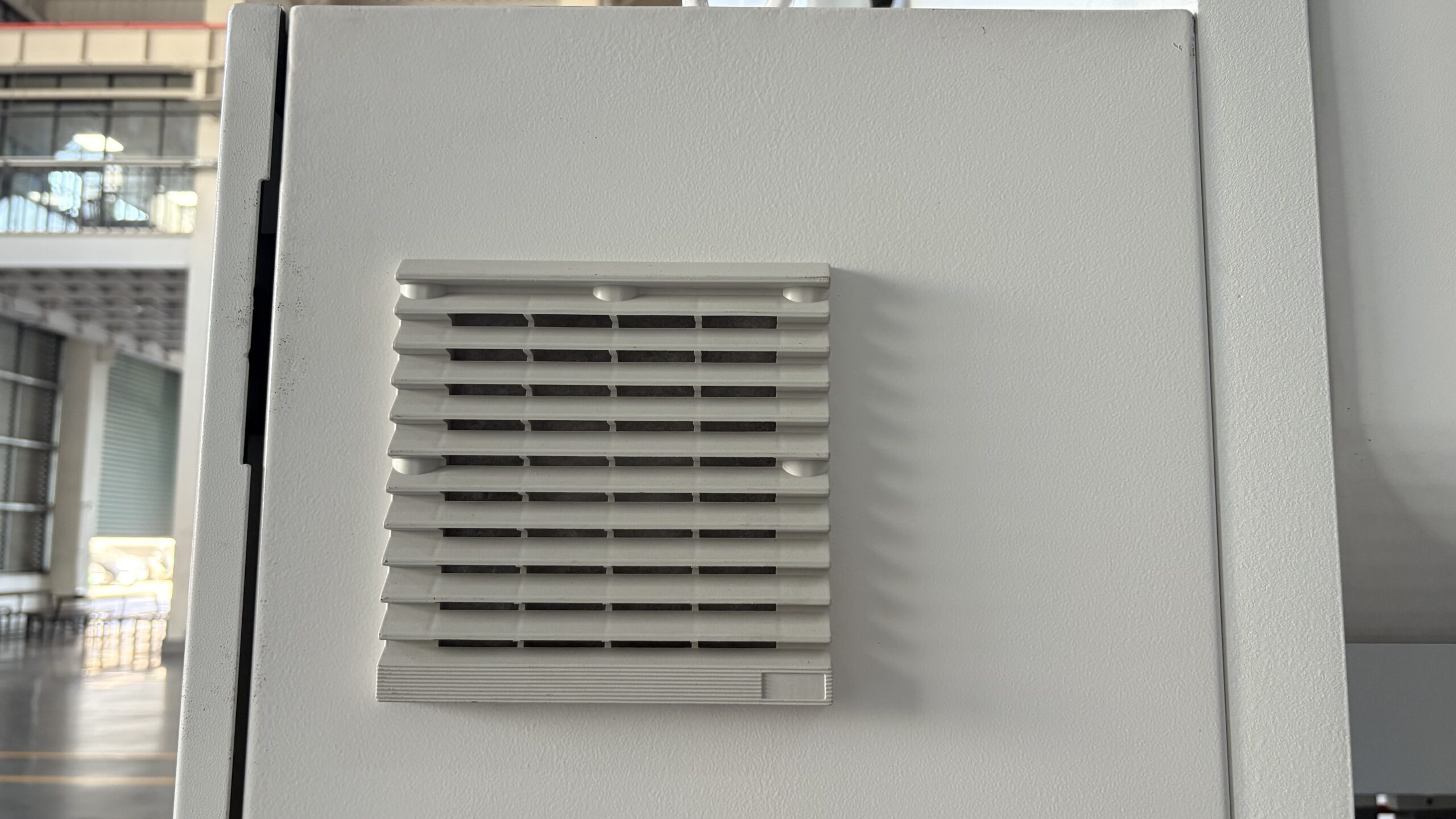

Featuring a clean and organized layout, the system ensures electrical safety, easy maintenance, and long-term operational stability.

Electrical

Organized wiring for safe, easy maintenance

Integrates all key electrical components with neat layout, enhancing safety and maintenance convenience.

LED Work Area Light

Bright lighting improves workspace visibility

Ensures a good field of vision even in low-light conditions, facilitating detailed observation and safe operation.

Tooling System

The system allows quick changeovers and compatibility with various tools, improving flexibility for diverse bending applications.

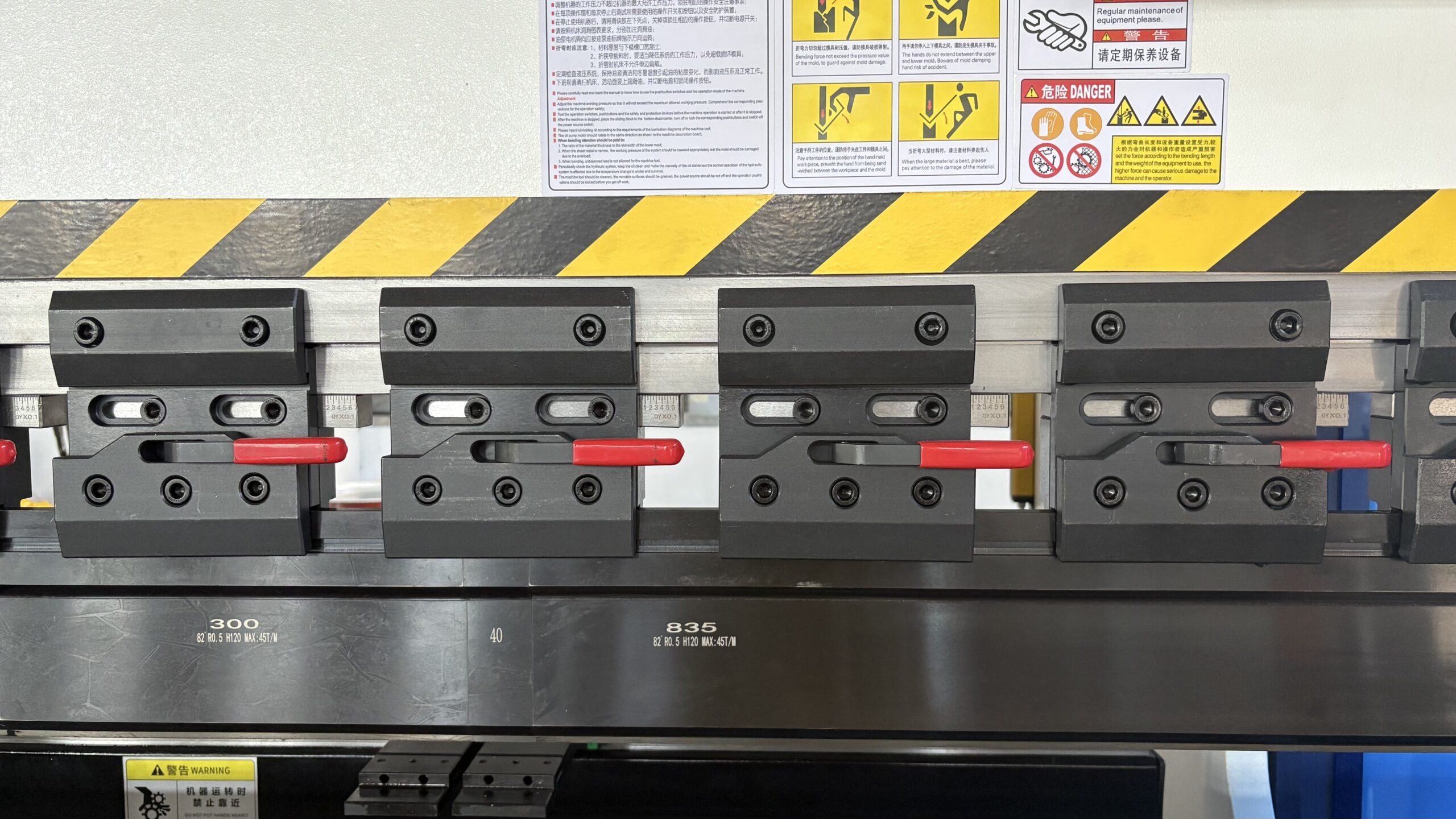

Quick Clamp
Optional

One-touch clamping boosts changeover efficiency

Allows quick and secure mold replacement, reducing downtime and increasing productivity.

Learn More

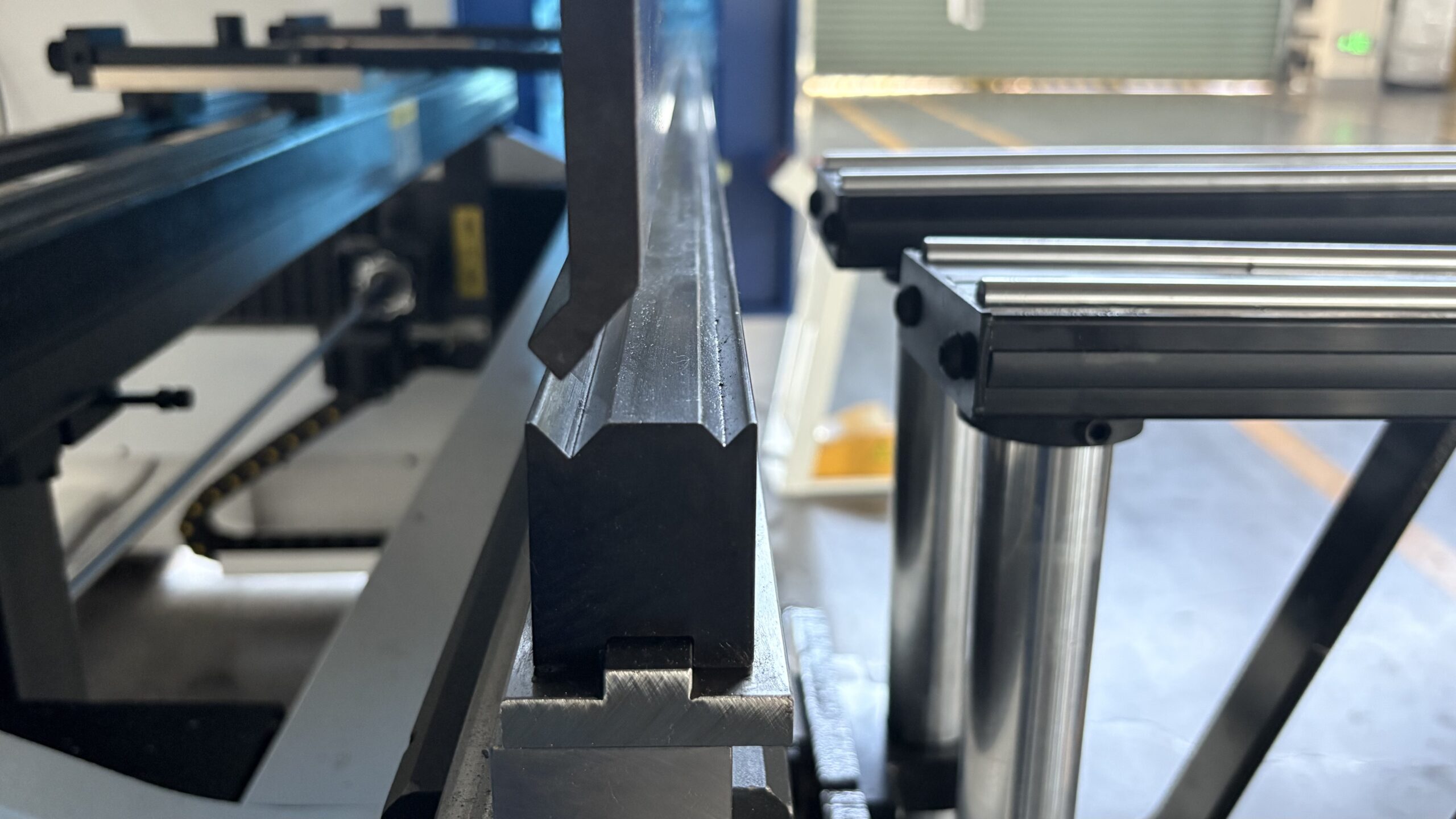

Mold
Optional

Durable and precise for various bending needs

There are a wide variety of molds available, which can be adapted to different materials and process requirements.

Learn More

Safety System

With multiple active and passive protections, the system minimizes operational risks and ensures safety for both operator and equipment.

Front  Guard Protection
Optional

Real-time detection to prevent injury

Safety light curtain detect intrusions and abnormal operation,and instantly stop machine motion to ensure operator safety.

Learn More

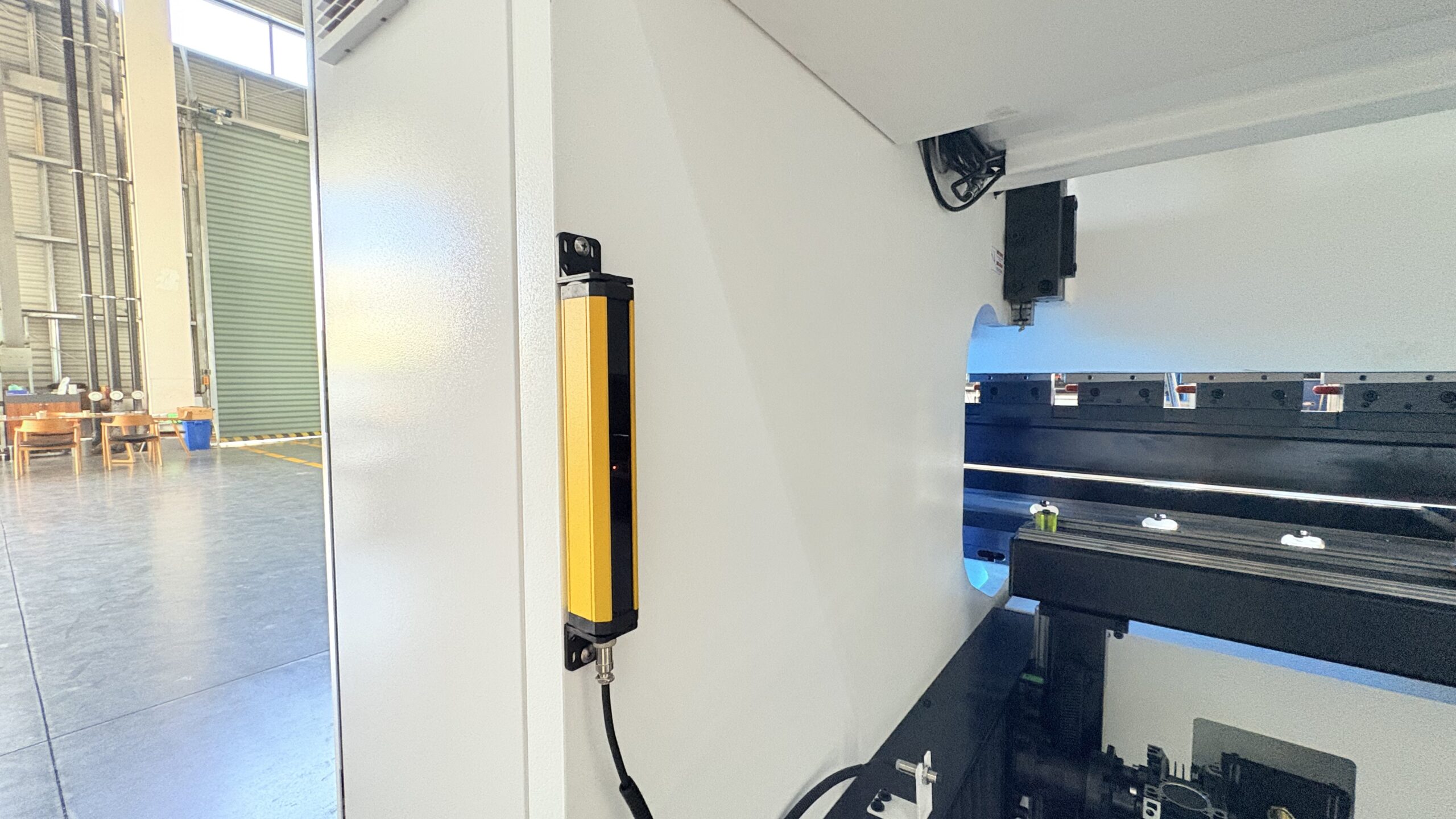

Rear  Guard Protection

Encloses the back area to avoid unauthorized access

The rear door adopts a closed structure design to prevent non-operating personnel from entering the dangerous area.

Left/Right Guard Protection

Side doors isolate moving parts for safety

Fully enclosed design protects operators from accidental contact and external interference.

Emergency Stop

One-press shutdown for emergency response

Stops all operations immediately to prevent equipment damage or injury in case of sudden abnormal situations.

Foot Pedal

Hands-free control improves operating efficiency

Flexible foot pedal control facilitates the operator to complete the bending operation efficiently while ensuring safety.

Auxiliary System

The system supports integration of smart auxiliary devices for automated handling and environmental control, enhancing production intelligence.

Bending Robot

Automates loading and bending for smart production

Performs automated loading/unloading and bending tasks to build an efficient, flexible manufacturing line.

Oil Temperature Control Unit

Maintains oil temperature for stable performance

Regulates hydraulic oil temperature in real-time to prevent overheating and ensure continuous operation.

Product Technical Specifications

Please check the technical details you require. If necessary, please contact us. Help Center

Basic ParametersBending Capacity
(kN)		800
Bending Length
(mm)		2500
Distance Between Columns
(mm)		2000
Open Height
(mm)		450
Throat Depth
(mm)		400
Ram Stroke
(mm)		160
Main Motor Power
(kW)		7.5
Hydraulic Tank Capacity
(L)		280
Overall Dimensionsm L×W×H
(mm)		3360×1625×2450
PerformanceX-Axis Stroke600
R-Axis Stroke200
X-Axis Speed
(mm/s)		300
R-Axis Speed
(mm/s)		200
Max Fast Approach Speed
(mm/s)		180
Max Working Speed
(mm/s)		1-12
Max Return Speed
(mm/s)		160
Mechanical SystemBedSteel Plate Welding
Lifting Beam●
Working Table●
Linear Encoder● BYCA, CHINA ◎ GIVI, ITALY
Support Arm● Fixed Support Device ◎ Follow-up Support Device
Deflection Compensation●
Hydraulic SystemMain Motor● ESTUN, CHINA ◎ INOVANCE, CHINA
Hydraulic Oil Tank●
Pump● HYTEK, CHINA ◎ ALLEAD, CHINA
Valve Block● BYCA, CHINA ◎ REXROTH, GERMANY
Hydraulic Cylinder●
Hydraulic Fittings● BYCA, CHINA ◎ RASTELLI RACCORDI, ITALY
Backgauge SystemServo Motor & Drive● ESTUN, CHINA ◎ INOVANCE, CHINA
Linear Guide Rail● BYCA, CHINA ◎ HIWIN, TAIWAN CHINA
Ball Screw● BYCA, CHINA ◎ HIWIN, TAIWAN CHINA
Back Gauge Finger●
Control SystemNumber of Axes4+1 axis
CNC Controller● SNYTEC 68T, TAIWAN CHINA ◎ SNYTEC 69T, TAIWAN CHINA
HMI Touch Panel●
Electrical SystemElectrical● SCHNEIDER, FRANCE
LED Work Area Light●
Power Supply VoltageCustomizable
Tooling SystemQucik Clamp●
Mold● Double-V ◎ Single-V ◎ Multi-V
Safety SystemFront Safety Protection● NUOVA, ITALY
○ MSD 3-Point Laser Protection
○ DSP 5-Point Laser Protection
○ DSP 9-Point Laser Protection with MCS
Rear Guard Protection○ SENSORC, CHINA Light Curtain Protection
Left/Right Guard Protection●
Emergency Stop ●
Foot Pedal●
Auxiliary SystemBending Robot○ ESTUN, CHINA
Oil Temperature Control Unit○
Basic ParametersBending Capacity
(kN)		1100
Bending Length
(mm)		2500
Distance Between Columns
(mm)		2000
Open Height
(mm)		490
Throat Depth
(mm)		400
Ram Stroke
(mm)		200
Main Motor Power
(kW)		9
Hydraulic Tank Capacity
(L)		280
Overall Dimensionsm L×W×H
(mm)		34000×1740×2625
PerformanceX-Axis Stroke600
R-Axis Stroke200
X-Axis Speed
(mm/s)		300
R-Axis Speed
(mm/s)		200
Max Fast Approach Speed
(mm/s)		180
Max Working Speed
(mm/s)		1-12
Max Return Speed
(mm/s)		160
Mechanical SystemBedSteel Plate Welding
Lifting Beam●
Working Table●
Linear Encoder● BYCA, CHINA ◎ GIVI, ITALY
Support Arm● Fixed Support Device ◎ Follow-up Support Device
Deflection Compensation●
Hydraulic SystemMain Motor● ESTUN, CHINA ◎ INOVANCE, CHINA
Hydraulic Oil Tank●
Pump● HYTEK, CHINA ◎ ALLEAD, CHINA
Valve Block● BYCA, CHINA ◎ REXROTH, GERMANY
Hydraulic Cylinder●
Hydraulic Fittings● BYCA, CHINA ◎ RASTELLI RACCORDI, ITALY
Backgauge SystemServo Motor & Drive● ESTUN, CHINA ◎ INOVANCE, CHINA
Linear Guide Rail● BYCA, CHINA ◎ HIWIN, TAIWAN CHINA
Ball Screw● BYCA, CHINA ◎ HIWIN, TAIWAN CHINA
Back Gauge Finger●
Control SystemNumber of Axes4+1 axis
CNC Controller● SNYTEC 68T, TAIWAN CHINA ◎ SNYTEC 69T, TAIWAN CHINA
HMI Touch Panel●
Electrical SystemElectrical● SCHNEIDER, FRANCE
LED Work Area Light●
Power Supply VoltageCustomizable
Tooling SystemQucik Clamp●
Mold● Double-V ◎ Single-V ◎ Multi-V
Safety SystemFront Safety Protection● NUOVA, ITALY
○ MSD 3-Point Laser Protection
○ DSP 5-Point Laser Protection
○ DSP 9-Point Laser Protection with MCS
Rear Guard Protection○ SENSORC, CHINA Light Curtain Protection
Left/Right Guard Protection●
Emergency Stop●
Foot Pedal●
Auxiliary SystemBending Robot○ ESTUN, CHINA
Oil Temperature Control Unit○
Basic ParametersBending Capacity
(kN)		1100
Bending Length
(mm)		3200
Distance Between Columns
(mm)		2600
Open Height
(mm)		490
Throat Depth
(mm)		400
Ram Stroke
(mm)		200
Main Motor Power
(kW)		9
Hydraulic Tank Capacity
(L)		280
Overall Dimensionsm L×W×H
(mm)		4100×1740×2675
PerformanceX-Axis Stroke600
R-Axis Stroke200
X-Axis Speed
(mm/s)		300
R-Axis Speed
(mm/s)		200
Max Fast Approach Speed
(mm/s)		180
Max Working Speed
(mm/s)		1-12
Max Return Speed
(mm/s)		160
Mechanical SystemBedSteel Plate Welding
Lifting Beam●
Working Table●
Linear Encoder● BYCA, CHINA ◎ GIVI, ITALY
Support Arm● Fixed Support Device ◎ Follow-up Support Device
Deflection Compensation●
Hydraulic SystemMain Motor● ESTUN, CHINA ◎ INOVANCE, CHINA
Hydraulic Oil Tank●
Pump● HYTEK, CHINA ◎ ALLEAD, CHINA
Valve Block● BYCA, CHINA ◎ REXROTH, GERMANY
Hydraulic Cylinder●
Hydraulic Fittings● BYCA, CHINA ◎ RASTELLI RACCORDI, ITALY
Backgauge SystemServo Motor & Drive● ESTUN, CHINA ◎ INOVANCE, CHINA
Linear Guide Rail● BYCA, CHINA ◎ HIWIN, TAIWAN CHINA
Ball Screw● BYCA, CHINA ◎ HIWIN, TAIWAN CHINA
Back Gauge Finger●
Control SystemNumber of Axes4+1 axis
CNC Controller● SNYTEC 68T, TAIWAN CHINA ◎ SNYTEC 69T, TAIWAN CHINA
HMI Touch Panel●
Electrical SystemElectrical● SCHNEIDER, FRANCE
LED Work Area Light●
Power Supply VoltageCustomizable
Tooling SystemQucik Clamp●
Mold● Double-V ◎ Single-V ◎ Multi-V
Safety SystemFront Safety Protection● NUOVA, ITALY
○ MSD 3-Point Laser Protection
○ DSP 5-Point Laser Protection
○ DSP 9-Point Laser Protection with MCS
Rear Guard Protection○ SENSORC, CHINA Light Curtain Protection
Left/Right Guard Protection●
Emergency Stop●
Foot Pedal●
Auxiliary SystemBending Robot○ ESTUN, CHINA
Oil Temperature Control Unit○
Basic ParametersBending Capacity
(kN)		1100
Bending Length
(mm)		4100
Distance Between Columns
(mm)		3500
Open Height
(mm)		490
Throat Depth
(mm)		400
Ram Stroke
(mm)		200
Main Motor Power
(kW)		9
Hydraulic Tank Capacity
(L)		280
Overall Dimensionsm L×W×H
(mm)		5000×1740×2675
PerformanceX-Axis Stroke600
R-Axis Stroke200
X-Axis Speed
(mm/s)		300
R-Axis Speed
(mm/s)		200
Max Fast Approach Speed
(mm/s)		180
Max Working Speed
(mm/s)		1-12
Max Return Speed
(mm/s)		160
Mechanical SystemBedSteel Plate Welding
Lifting Beam●
Working Table●
Linear Encoder● BYCA, CHINA ◎ GIVI, ITALY
Support Arm● Fixed Support Device ◎ Follow-up Support Device
Deflection Compensation●
Hydraulic SystemMain Motor● ESTUN, CHINA ◎ INOVANCE, CHINA
Hydraulic Oil Tank●
Pump● HYTEK, CHINA ◎ ALLEAD, CHINA
Valve Block● BYCA, CHINA ◎ REXROTH, GERMANY
Hydraulic Cylinder●
Hydraulic Fittings● BYCA, CHINA ◎ RASTELLI RACCORDI, ITALY
Backgauge SystemServo Motor & Drive● ESTUN, CHINA ◎ INOVANCE, CHINA
Linear Guide Rail● BYCA, CHINA ◎ HIWIN, TAIWAN CHINA
Ball Screw● BYCA, CHINA ◎ HIWIN, TAIWAN CHINA
Back Gauge Finger●
Control SystemNumber of Axes4+1 axis
CNC Controller● SNYTEC 68T, TAIWAN CHINA ◎ SNYTEC 69T, TAIWAN CHINA
HMI Touch Panel●
Electrical SystemElectrical● SCHNEIDER, FRANCE
LED Work Area Light●
Power Supply VoltageCustomizable
Tooling SystemQucik Clamp●
Mold● Double-V ◎ Single-V ◎ Multi-V
Safety SystemFront Safety Protection● NUOVA, ITALY
○ MSD 3-Point Laser Protection
○ DSP 5-Point Laser Protection
○ DSP 9-Point Laser Protection with MCS
Rear Guard Protection○ SENSORC, CHINA Light Curtain Protection
Left/Right Guard Protection●
Emergency Stop●
Foot Pedal●
Auxiliary SystemBending Robot○ ESTUN, CHINA
Oil Temperature Control Unit○
Basic ParametersBending Capacity
(kN)		1300
Bending Length
(mm)		3200
Distance Between Columns
(mm)		2600
Open Height
(mm)		490
Throat Depth
(mm)		400
Ram Stroke
(mm)		200
Main Motor Power
(kW)		9
Hydraulic Tank Capacity
(L)		280
Overall Dimensionsm L×W×H
(mm)		4100×1740×2645
PerformanceX-Axis Stroke600
R-Axis Stroke200
X-Axis Speed
(mm/s)		300
R-Axis Speed
(mm/s)		200
Max Fast Approach Speed
(mm/s)		180
Max Working Speed
(mm/s)		1-12
Max Return Speed
(mm/s)		160
Mechanical SystemBedSteel Plate Welding
Lifting Beam●
Working Table●
Linear Encoder● BYCA, CHINA ◎ GIVI, ITALY
Support Arm● Fixed Support Device ◎ Follow-up Support Device
Deflection Compensation●
Hydraulic SystemMain Motor● ESTUN, CHINA ◎ INOVANCE, CHINA
Hydraulic Oil Tank●
Pump● HYTEK, CHINA ◎ ALLEAD, CHINA
Valve Block● BYCA, CHINA ◎ REXROTH, GERMANY
Hydraulic Cylinder●
Hydraulic Fittings● BYCA, CHINA ◎ RASTELLI RACCORDI, ITALY
Backgauge SystemServo Motor & Drive● ESTUN, CHINA ◎ INOVANCE, CHINA
Linear Guide Rail● BYCA, CHINA ◎ HIWIN, TAIWAN CHINA
Ball Screw● BYCA, CHINA ◎ HIWIN, TAIWAN CHINA
Back Gauge Finger●
Control SystemNumber of Axes4+1 axis
CNC Controller● SNYTEC 68T, TAIWAN CHINA ◎ SNYTEC 69T, TAIWAN CHINA
HMI Touch Panel●
Electrical SystemElectrical● SCHNEIDER, FRANCE
LED Work Area Light●
Power Supply VoltageCustomizable
Tooling SystemQucik Clamp●
Mold● Double-V ◎ Single-V ◎ Multi-V
Safety SystemFront Safety Protection● NUOVA, ITALY
○ MSD 3-Point Laser Protection
○ DSP 5-Point Laser Protection
○ DSP 9-Point Laser Protection with MCS
Rear Guard Protection○ SENSORC, CHINA Light Curtain Protection
Left/Right Guard Protection●
Emergency Stop●
Foot Pedal●
Auxiliary SystemBending Robot○ ESTUN, CHINA
Oil Temperature Control Unit○
Basic ParametersBending Capacity
(kN)		1300
Bending Length
(mm)		4100
Distance Between Columns
(mm)		3500
Open Height
(mm)		490
Throat Depth
(mm)		400
Ram Stroke
(mm)		200
Main Motor Power
(kW)		9
Hydraulic Tank Capacity
(L)		280
Overall Dimensionsm L×W×H
(mm)		5000×1740×2695
PerformanceX-Axis Stroke600
R-Axis Stroke200
X-Axis Speed
(mm/s)		300
R-Axis Speed
(mm/s)		200
Max Fast Approach Speed
(mm/s)		180
Max Working Speed
(mm/s)		1-12
Max Return Speed
(mm/s)		160
Mechanical SystemBedSteel Plate Welding
Lifting Beam●
Working Table●
Linear Encoder● BYCA, CHINA ◎ GIVI, ITALY
Support Arm● Fixed Support Device ◎ Follow-up Support Device
Deflection Compensation●
Hydraulic SystemMain Motor● ESTUN, CHINA ◎ INOVANCE, CHINA
Hydraulic Oil Tank●
Pump● HYTEK, CHINA ◎ ALLEAD, CHINA
Valve Block● BYCA, CHINA ◎ REXROTH, GERMANY
Hydraulic Cylinder●
Hydraulic Fittings● BYCA, CHINA ◎ RASTELLI RACCORDI, ITALY
Backgauge SystemServo Motor & Drive● ESTUN, CHINA ◎ INOVANCE, CHINA
Linear Guide Rail● BYCA, CHINA ◎ HIWIN, TAIWAN CHINA
Ball Screw● BYCA, CHINA ◎ HIWIN, TAIWAN CHINA
Back Gauge Finger●
Control SystemNumber of Axes4+1 axis
CNC Controller● SNYTEC 68T, TAIWAN CHINA ◎ SNYTEC 69T, TAIWAN CHINA
HMI Touch Panel●
Electrical SystemElectrical● SCHNEIDER, FRANCE
LED Work Area Light●
Power Supply VoltageCustomizable
Tooling SystemQucik Clamp●
Mold● Double-V ◎ Single-V ◎ Multi-V
Safety SystemFront Safety Protection● NUOVA, ITALY
○ MSD 3-Point Laser Protection
○ DSP 5-Point Laser Protection
○ DSP 9-Point Laser Protection with MCS
Rear Guard Protection○ SENSORC, CHINA Light Curtain Protection
Left/Right Guard Protection●
Emergency Stop●
Foot Pedal●
Auxiliary SystemBending Robot○ ESTUN, CHINA
Oil Temperature Control Unit○
Basic ParametersBending Capacity
(kN)		1700
Bending Length
(mm)		3200
Distance Between Columns
(mm)		2600
Open Height
(mm)		490
Throat Depth
(mm)		400
Ram Stroke
(mm)		200
Main Motor Power
(kW)		15
Hydraulic Tank Capacity
(L)		280
Overall Dimensionsm L×W×H
(mm)		4120×1740×2675
PerformanceX-Axis Stroke600
R-Axis Stroke200
X-Axis Speed
(mm/s)		300
R-Axis Speed
(mm/s)		200
Max Fast Approach Speed
(mm/s)		180
Max Working Speed
(mm/s)		1-12
Max Return Speed
(mm/s)		160
Mechanical SystemBedSteel Plate Welding
Lifting Beam●
Working Table●
Linear Encoder● BYCA, CHINA ◎ GIVI, ITALY
Support Arm● Fixed Support Device ◎ Follow-up Support Device
Deflection Compensation●
Hydraulic SystemMain Motor● ESTUN, CHINA ◎ INOVANCE, CHINA
Hydraulic Oil Tank●
Pump● HYTEK, CHINA ◎ ALLEAD, CHINA
Valve Block● BYCA, CHINA ◎ REXROTH, GERMANY
Hydraulic Cylinder●
Hydraulic Fittings● BYCA, CHINA ◎ RASTELLI RACCORDI, ITALY
Backgauge SystemServo Motor & Drive● ESTUN, CHINA ◎ INOVANCE, CHINA
Linear Guide Rail● BYCA, CHINA ◎ HIWIN, TAIWAN CHINA
Ball Screw● BYCA, CHINA ◎ HIWIN, TAIWAN CHINA
Back Gauge Finger●
Control SystemNumber of Axes4+1 axis
CNC Controller● SNYTEC 68T, TAIWAN CHINA ◎ SNYTEC 69T, TAIWAN CHINA
HMI Touch Panel●
Electrical SystemElectrical● SCHNEIDER, FRANCE
LED Work Area Light●
Power Supply VoltageCustomizable
Tooling SystemQucik Clamp●
Mold● Double-V ◎ Single-V ◎ Multi-V
Safety SystemFront Safety Protection● NUOVA, ITALY
○ MSD 3-Point Laser Protection
○ DSP 5-Point Laser Protection
○ DSP 9-Point Laser Protection with MCS
Rear Guard Protection○ SENSORC, CHINA Light Curtain Protection
Left/Right Guard Protection●
Emergency Stop●
Foot Pedal●
Auxiliary SystemBending Robot○ ESTUN, CHINA
Oil Temperature Control Unit○
Basic ParametersBending Capacity
(kN)		1700
Bending Length
(mm)		4100
Distance Between Columns
(mm)		3500
Open Height
(mm)		490
Throat Depth
(mm)		400
Ram Stroke
(mm)		200
Main Motor Power
(kW)		15
Hydraulic Tank Capacity
(L)		280
Overall Dimensionsm L×W×H
(mm)		5020×1740×2725
PerformanceX-Axis Stroke600
R-Axis Stroke200
X-Axis Speed
(mm/s)		300
R-Axis Speed
(mm/s)		200
Max Fast Approach Speed
(mm/s)		180
Max Working Speed
(mm/s)		1-12
Max Return Speed
(mm/s)		160
Mechanical SystemBedSteel Plate Welding
Lifting Beam●
Working Table●
Linear Encoder● BYCA, CHINA ◎ GIVI, ITALY
Support Arm● Fixed Support Device ◎ Follow-up Support Device
Deflection Compensation●
Hydraulic SystemMain Motor● ESTUN, CHINA ◎ INOVANCE, CHINA
Hydraulic Oil Tank●
Pump● HYTEK, CHINA ◎ ALLEAD, CHINA
Valve Block● BYCA, CHINA ◎ REXROTH, GERMANY
Hydraulic Cylinder●
Hydraulic Fittings● BYCA, CHINA ◎ RASTELLI RACCORDI, ITALY
Backgauge SystemServo Motor & Drive● ESTUN, CHINA ◎ INOVANCE, CHINA
Linear Guide Rail● BYCA, CHINA ◎ HIWIN, TAIWAN CHINA
Ball Screw● BYCA, CHINA ◎ HIWIN, TAIWAN CHINA
Back Gauge Finger●
Control SystemNumber of Axes4+1 axis
CNC Controller● SNYTEC 68T, TAIWAN CHINA ◎ SNYTEC 69T, TAIWAN CHINA
HMI Touch Panel●
Electrical SystemElectrical● SCHNEIDER, FRANCE
LED Work Area Light●
Power Supply VoltageCustomizable
Tooling SystemQucik Clamp●
Mold● Double-V ◎ Single-V ◎ Multi-V
Safety SystemFront Safety Protection● NUOVA, ITALY
○ MSD 3-Point Laser Protection
○ DSP 5-Point Laser Protection
○ DSP 9-Point Laser Protection with MCS
Rear Guard Protection○ SENSORC, CHINA Light Curtain Protection
Left/Right Guard Protection●
Emergency Stop●
Foot Pedal●
Auxiliary SystemBending Robot○ ESTUN, CHINA
Oil Temperature Control Unit○
Basic ParametersBending Capacity
(kN)		2200
Bending Length
(mm)		3200
Distance Between Columns
(mm)		2600
Open Height
(mm)		490
Throat Depth
(mm)		400
Ram Stroke
(mm)		200
Main Motor Power
(kW)		15
Hydraulic Tank Capacity
(L)		280
Overall Dimensionsm L×W×H
(mm)		4140×1870×2885
PerformanceX-Axis Stroke600
R-Axis Stroke200
X-Axis Speed
(mm/s)		300
R-Axis Speed
(mm/s)		200
Max Fast Approach Speed
(mm/s)		120
Max Working Speed
(mm/s)		1-10
Max Return Speed
(mm/s)		120
Mechanical SystemBedSteel Plate Welding
Lifting Beam●
Working Table●
Linear Encoder● BYCA, CHINA ◎ GIVI, ITALY
Support Arm● Fixed Support Device ◎ Follow-up Support Device
Deflection Compensation●
Hydraulic SystemMain Motor● ESTUN, CHINA ◎ INOVANCE, CHINA
Hydraulic Oil Tank●
Pump● HYTEK, CHINA ◎ ALLEAD, CHINA
Valve Block● BYCA, CHINA ◎ REXROTH, GERMANY
Hydraulic Cylinder●
Hydraulic Fittings● BYCA, CHINA ◎ RASTELLI RACCORDI, ITALY
Backgauge SystemServo Motor & Drive● ESTUN, CHINA ◎ INOVANCE, CHINA
Linear Guide Rail● BYCA, CHINA ◎ HIWIN, TAIWAN CHINA
Ball Screw● BYCA, CHINA ◎ HIWIN, TAIWAN CHINA
Back Gauge Finger●
Control SystemNumber of Axes4+1 axis
CNC Controller● SNYTEC 68T, TAIWAN CHINA ◎ SNYTEC 69T, TAIWAN CHINA
HMI Touch Panel●
Electrical SystemElectrical● SCHNEIDER, FRANCE
LED Work Area Light●
Power Supply VoltageCustomizable
Tooling SystemQucik Clamp●
Mold● Double-V ◎ Single-V ◎ Multi-V
Safety SystemFront Safety Protection● NUOVA, ITALY
○ MSD 3-Point Laser Protection
○ DSP 5-Point Laser Protection
○ DSP 9-Point Laser Protection with MCS
Rear Guard Protection○ SENSORC, CHINA Light Curtain Protection
Left/Right Guard Protection●
Emergency Stop●
Foot Pedal●
Auxiliary SystemBending Robot○ ESTUN, CHINA
Oil Temperature Control Unit○
Basic ParametersBending Capacity
(kN)		2200
Bending Length
(mm)		4100
Distance Between Columns
(mm)		3500
Open Height
(mm)		490
Throat Depth
(mm)		400
Ram Stroke
(mm)		200
Main Motor Power
(kW)		15
Hydraulic Tank Capacity
(L)		280
Overall Dimensionsm L×W×H
(mm)		5040×1870×2855
PerformanceX-Axis Stroke600
R-Axis Stroke200
X-Axis Speed
(mm/s)		300
R-Axis Speed
(mm/s)		200
Max Fast Approach Speed
(mm/s)		120
Max Working Speed
(mm/s)		1-10
Max Return Speed
(mm/s)		120
Mechanical SystemBedSteel Plate Welding
Lifting Beam●
Working Table●
Linear Encoder● BYCA, CHINA ◎ GIVI, ITALY
Support Arm● Fixed Support Device ◎ Follow-up Support Device
Deflection Compensation●
Hydraulic SystemMain Motor● ESTUN, CHINA ◎ INOVANCE, CHINA
Hydraulic Oil Tank●
Pump● HYTEK, CHINA ◎ ALLEAD, CHINA
Valve Block● BYCA, CHINA ◎ REXROTH, GERMANY
Hydraulic Cylinder●
Hydraulic Fittings● BYCA, CHINA ◎ RASTELLI RACCORDI, ITALY
Backgauge SystemServo Motor & Drive● ESTUN, CHINA ◎ INOVANCE, CHINA
Linear Guide Rail● BYCA, CHINA ◎ HIWIN, TAIWAN CHINA
Ball Screw● BYCA, CHINA ◎ HIWIN, TAIWAN CHINA
Back Gauge Finger●
Control SystemNumber of Axes4+1 axis
CNC Controller● SNYTEC 68T, TAIWAN CHINA ◎ SNYTEC 69T, TAIWAN CHINA
HMI Touch Panel●
Electrical SystemElectrical● SCHNEIDER, FRANCE
LED Work Area Light●
Power Supply VoltageCustomizable
Tooling SystemQucik Clamp●
Mold● Double-V ◎ Single-V ◎ Multi-V
Safety SystemFront Safety Protection● NUOVA, ITALY
○ MSD 3-Point Laser Protection
○ DSP 5-Point Laser Protection
○ DSP 9-Point Laser Protection with MCS
Rear Guard Protection○ SENSORC, CHINA Light Curtain Protection
Left/Right Guard Protection●
Emergency Stop●
Foot Pedal●
Auxiliary SystemBending Robot○ ESTUN, CHINA
Oil Temperature Control Unit○
Basic ParametersBending Capacity
(kN)		2500
Bending Length
(mm)		3200
Distance Between Columns
(mm)		2600
Open Height
(mm)		490
Throat Depth
(mm)		400
Ram Stroke
(mm)		200
Main Motor Power
(kW)		22
Hydraulic Tank Capacity
(L)		600
Overall Dimensionsm L×W×H
(mm)		4160×1940×3060
PerformanceX-Axis Stroke600
R-Axis Stroke200
X-Axis Speed
(mm/s)		300
R-Axis Speed
(mm/s)		200
Max Fast Approach Speed
(mm/s)		120
Max Working Speed
(mm/s)		1-10
Max Return Speed
(mm/s)		120
Mechanical SystemBedSteel Plate Welding
Lifting Beam●
Working Table●
Linear Encoder● BYCA, CHINA ◎ GIVI, ITALY
Support Arm● Fixed Support Device ◎ Follow-up Support Device
Deflection Compensation●
Hydraulic SystemMain Motor● ESTUN, CHINA ◎ INOVANCE, CHINA
Hydraulic Oil Tank●
Pump● HYTEK, CHINA ◎ ALLEAD, CHINA
Valve Block● BYCA, CHINA ◎ REXROTH, GERMANY
Hydraulic Cylinder●
Hydraulic Fittings● BYCA, CHINA ◎ RASTELLI RACCORDI, ITALY
Backgauge SystemServo Motor & Drive● ESTUN, CHINA ◎ INOVANCE, CHINA
Linear Guide Rail● BYCA, CHINA ◎ HIWIN, TAIWAN CHINA
Ball Screw● BYCA, CHINA ◎ HIWIN, TAIWAN CHINA
Back Gauge Finger●
Control SystemNumber of Axes4+1 axis
CNC Controller● SNYTEC 68T, TAIWAN CHINA ◎ SNYTEC 69T, TAIWAN CHINA
HMI Touch Panel●
Electrical SystemElectrical● SCHNEIDER, FRANCE
LED Work Area Light●
Power Supply VoltageCustomizable
Tooling SystemQucik Clamp●
Mold● Double-V ◎ Single-V ◎ Multi-V
Safety SystemFront Safety Protection● NUOVA, ITALY
○ MSD 3-Point Laser Protection
○ DSP 5-Point Laser Protection
○ DSP 9-Point Laser Protection with MCS
Rear Guard Protection○ SENSORC, CHINA Light Curtain Protection
Left/Right Guard Protection●
Emergency Stop●
Foot Pedal●
Auxiliary SystemBending Robot○ ESTUN, CHINA
Oil Temperature Control Unit○
Basic ParametersBending Capacity
(kN)		2500
Bending Length
(mm)		4100
Distance Between Columns
(mm)		3500
Open Height
(mm)		490
Throat Depth
(mm)		400
Ram Stroke
(mm)		200
Main Motor Power
(kW)		22
Hydraulic Tank Capacity
(L)		600
Overall Dimensionsm L×W×H
(mm)		5060×1940×2975
PerformanceX-Axis Stroke600
R-Axis Stroke200
X-Axis Speed
(mm/s)		300
R-Axis Speed
(mm/s)		200
Max Fast Approach Speed
(mm/s)		120
Max Working Speed
(mm/s)		1-10
Max Return Speed
(mm/s)		120
Mechanical SystemBedSteel Plate Welding
Lifting Beam●
Working Table●
Linear Encoder● BYCA, CHINA ◎ GIVI, ITALY
Support Arm● Fixed Support Device ◎ Follow-up Support Device
Deflection Compensation●
Hydraulic SystemMain Motor● ESTUN, CHINA ◎ INOVANCE, CHINA
Hydraulic Oil Tank●
Pump● HYTEK, CHINA ◎ ALLEAD, CHINA
Valve Block● BYCA, CHINA ◎ REXROTH, GERMANY
Hydraulic Cylinder●
Hydraulic Fittings● BYCA, CHINA ◎ RASTELLI RACCORDI, ITALY
Backgauge SystemServo Motor & Drive● ESTUN, CHINA ◎ INOVANCE, CHINA
Linear Guide Rail● BYCA, CHINA ◎ HIWIN, TAIWAN CHINA
Ball Screw● BYCA, CHINA ◎ HIWIN, TAIWAN CHINA
Back Gauge Finger●
Control SystemNumber of Axes4+1 axis
CNC Controller● SNYTEC 68T, TAIWAN CHINA ◎ SNYTEC 69T, TAIWAN CHINA
HMI Touch Panel●
Electrical SystemElectrical● SCHNEIDER, FRANCE
LED Work Area Light●
Power Supply VoltageCustomizable
Tooling SystemQucik Clamp●
Mold● Double-V ◎ Single-V ◎ Multi-V
Safety SystemFront Safety Protection● NUOVA, ITALY
○ MSD 3-Point Laser Protection
○ DSP 5-Point Laser Protection
○ DSP 9-Point Laser Protection with MCS
Rear Guard Protection○ SENSORC, CHINA Light Curtain Protection
Left/Right Guard Protection●
Emergency Stop●
Foot Pedal●
Auxiliary SystemBending Robot○ ESTUN, CHINA
Oil Temperature Control Unit○
Basic ParametersBending Capacity
(kN)		3200
Bending Length
(mm)		3200
Distance Between Columns
(mm)		2700
Open Height
(mm)		540
Throat Depth
(mm)		400
Ram Stroke
(mm)		250
Main Motor Power
(kW)		22
Hydraulic Tank Capacity
(L)		600
Overall Dimensionsm L×W×H
(mm)		4180×2100×3240
PerformanceX-Axis Stroke600
R-Axis Stroke200
X-Axis Speed
(mm/s)		300
R-Axis Speed
(mm/s)		200
Max Fast Approach Speed
(mm/s)		120
Max Working Speed
(mm/s)		1-10
Max Return Speed
(mm/s)		120
Mechanical SystemBedSteel Plate Welding
Lifting Beam●
Working Table●
Linear Encoder● BYCA, CHINA ◎ GIVI, ITALY
Support Arm● Fixed Support Device ◎ Follow-up Support Device
Deflection Compensation●
Hydraulic SystemMain Motor● ESTUN, CHINA ◎ INOVANCE, CHINA
Hydraulic Oil Tank●
Pump● HYTEK, CHINA ◎ ALLEAD, CHINA
Valve Block● BYCA, CHINA ◎ REXROTH, GERMANY
Hydraulic Cylinder●
Hydraulic Fittings● BYCA, CHINA ◎ RASTELLI RACCORDI, ITALY
Backgauge SystemServo Motor & Drive● ESTUN, CHINA ◎ INOVANCE, CHINA
Linear Guide Rail● BYCA, CHINA ◎ HIWIN, TAIWAN CHINA
Ball Screw● BYCA, CHINA ◎ HIWIN, TAIWAN CHINA
Back Gauge Finger●
Control SystemNumber of Axes4+1 axis
CNC Controller● SNYTEC 68T, TAIWAN CHINA ◎ SNYTEC 69T, TAIWAN CHINA
HMI Touch Panel●
Electrical SystemElectrical● SCHNEIDER, FRANCE
LED Work Area Light●
Power Supply VoltageCustomizable
Tooling SystemQucik Clamp●
Mold● Double-V ◎ Single-V ◎ Multi-V
Safety SystemFront Safety Protection● NUOVA, ITALY
○ MSD 3-Point Laser Protection
○ DSP 5-Point Laser Protection
○ DSP 9-Point Laser Protection with MCS
Rear Guard Protection○ SENSORC, CHINA Light Curtain Protection
Left/Right Guard Protection●
Emergency Stop●
Foot Pedal●
Auxiliary SystemBending Robot○ ESTUN, CHINA
Oil Temperature Control Unit○
Basic ParametersBending Capacity
(kN)		3200
Bending Length
(mm)		4100
Distance Between Columns
(mm)		3600
Open Height
(mm)		540
Throat Depth
(mm)		400
Ram Stroke
(mm)		250
Main Motor Power
(kW)		22
Hydraulic Tank Capacity
(L)		600
Overall Dimensionsm L×W×H
(mm)		5080×2100×3240
PerformanceX-Axis Stroke600
R-Axis Stroke200
X-Axis Speed
(mm/s)		300
R-Axis Speed
(mm/s)		200
Max Fast Approach Speed
(mm/s)		120
Max Working Speed
(mm/s)		1-10
Max Return Speed
(mm/s)		120
Mechanical SystemBedSteel Plate Welding
Lifting Beam●
Working Table●
Linear Encoder● BYCA, CHINA ◎ GIVI, ITALY
Support Arm● Fixed Support Device ◎ Follow-up Support Device
Deflection Compensation●
Hydraulic SystemMain Motor● ESTUN, CHINA ◎ INOVANCE, CHINA
Hydraulic Oil Tank●
Pump● HYTEK, CHINA ◎ ALLEAD, CHINA
Valve Block● BYCA, CHINA ◎ REXROTH, GERMANY
Hydraulic Cylinder●
Hydraulic Fittings● BYCA, CHINA ◎ RASTELLI RACCORDI, ITALY
Backgauge SystemServo Motor & Drive● ESTUN, CHINA ◎ INOVANCE, CHINA
Linear Guide Rail● BYCA, CHINA ◎ HIWIN, TAIWAN CHINA
Ball Screw● BYCA, CHINA ◎ HIWIN, TAIWAN CHINA
Back Gauge Finger●
Control SystemNumber of Axes4+1 axis
CNC Controller● SNYTEC 68T, TAIWAN CHINA ◎ SNYTEC 69T, TAIWAN CHINA
HMI Touch Panel●
Electrical SystemElectrical● SCHNEIDER, FRANCE
LED Work Area Light●
Power Supply VoltageCustomizable
Tooling SystemQucik Clamp●
Mold● Double-V ◎ Single-V ◎ Multi-V
Safety SystemFront Safety Protection● NUOVA, ITALY
○ MSD 3-Point Laser Protection
○ DSP 5-Point Laser Protection
○ DSP 9-Point Laser Protection with MCS
Rear Guard Protection○ SENSORC, CHINA Light Curtain Protection
Left/Right Guard Protection●
Emergency Stop●
Foot Pedal●
Auxiliary SystemBending Robot○ ESTUN, CHINA
Oil Temperature Control Unit○

Automatic Quotation

Just follow 4 steps to quickly get a preliminary quote, which will help you make a budget in advance.

How to choose model?

Step 1

Confirm the product series and model

Step 2

Selecte the optional configurations you like

Step 3

Fill in your information correctly and submit it

Step 4

Check the quotation in your email

Automatic Quote

Get in Touch with Us Now!

Please fill in the form and describe your requirements.  Our team will get back to you within 24 hours.
