BP-SS Series Single Servo Electro-Hydraulic CNC Press Brake Machine
If you need a energy-saving and precise bending machine, BP-SS Series CNC press brake is the perfect choice for your workshop.
Mechanical System
The system provides excellent rigidity and stability, ensuring bending accuracy and structural reliability during long-term, high-load operation.

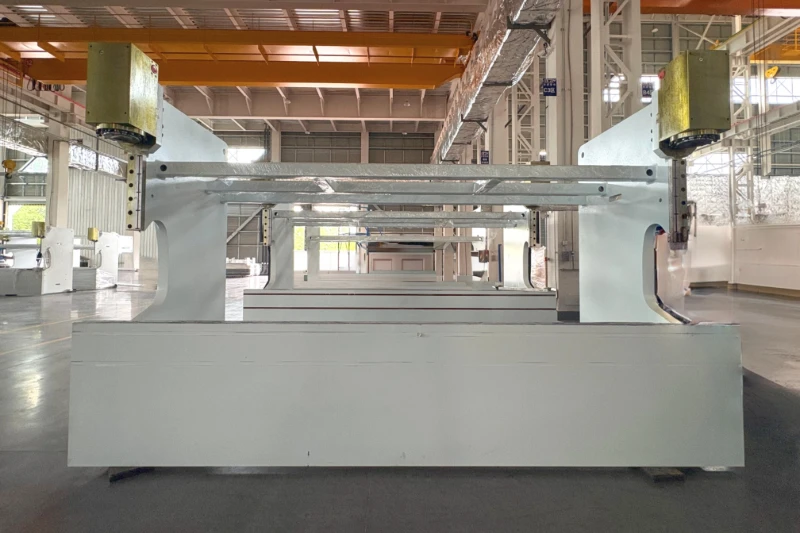

BED
Rigid design ensures stability
The bed is designed with high-strength steel structure, featuring excellent load-bearing capacity and anti-deformation performance.

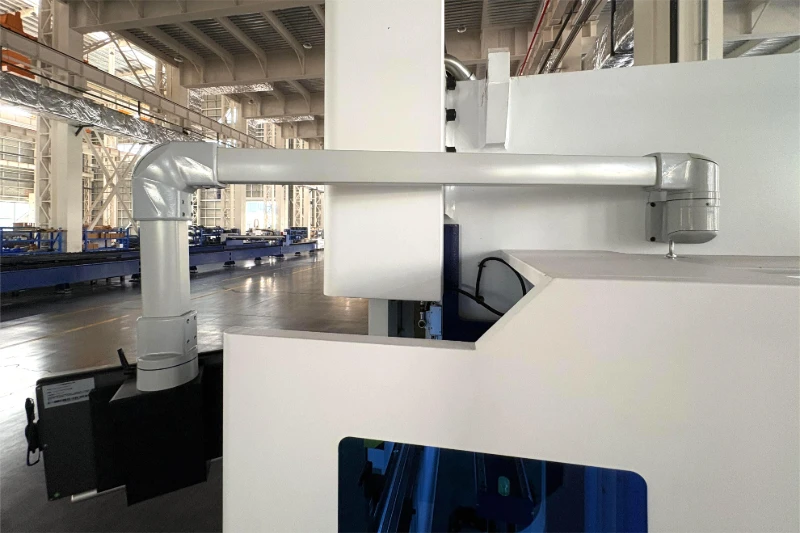

Control Pendant Arm
Stable support improves operation convenience
The Control Pendant Arm holds the touch screen and CNC unit, allowing adjustable angles for optimal ergonomics.

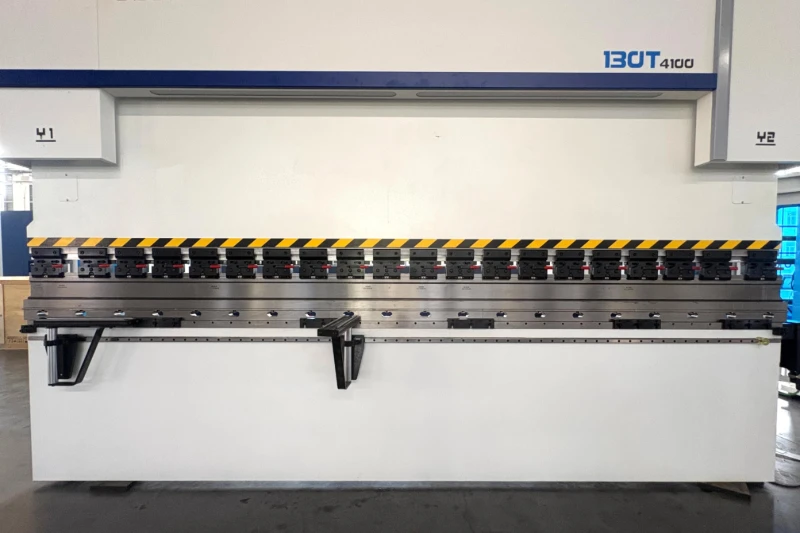

Working Table
Stable support ensures precision
The flat and rigid surface supports the workpiece securely, preventing movement that may affect bending consistency.

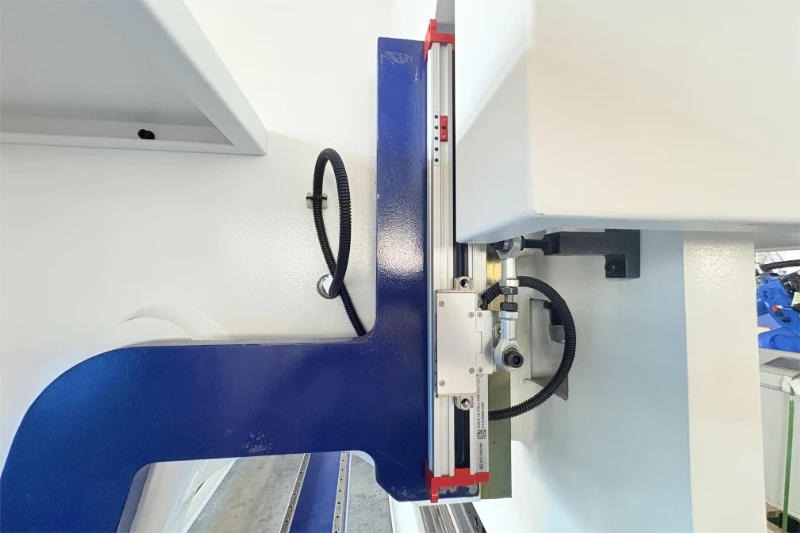

Magnetic Linear Scale
Real-time position feedback enhances control accuracy
It collects slide displacement data and works with the CNC system for precise closed-loop position control.
Support Arm
Optional
Auxiliary support reduces operator fatigue
It provides reliable support for oversized parts, preventing sagging and reducing manual handling effort.
Deflection Compensation
Automatically corrects deformation for consistent angles
It adjusts the ram’s position in real-time based on load to ensure uniform bending results regardless of material or force.
Hydraulic System
With servo-controlled technology, the system delivers stable power output and rapid response for efficient, energy-saving, and precise bending.

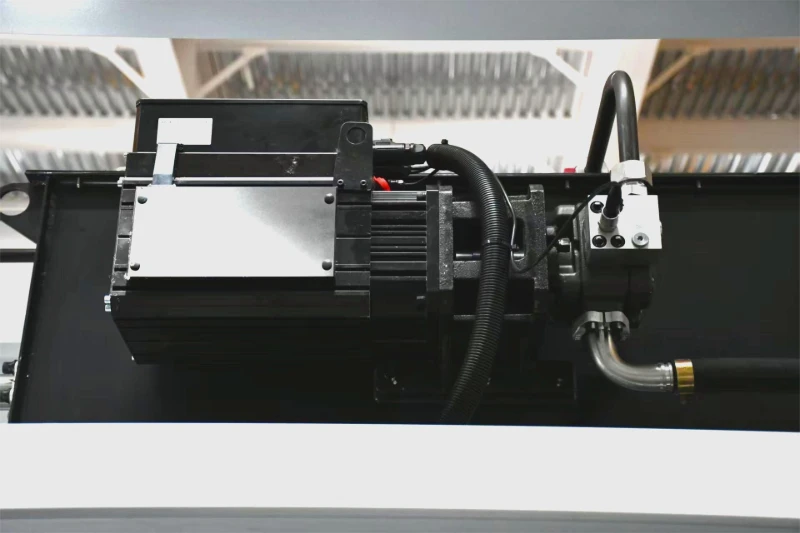

Main Servo Motor
Drives the hydraulic system for efficient bending
Delivers high torque and fast response, powering the hydraulic cylinder for precision bending operations.

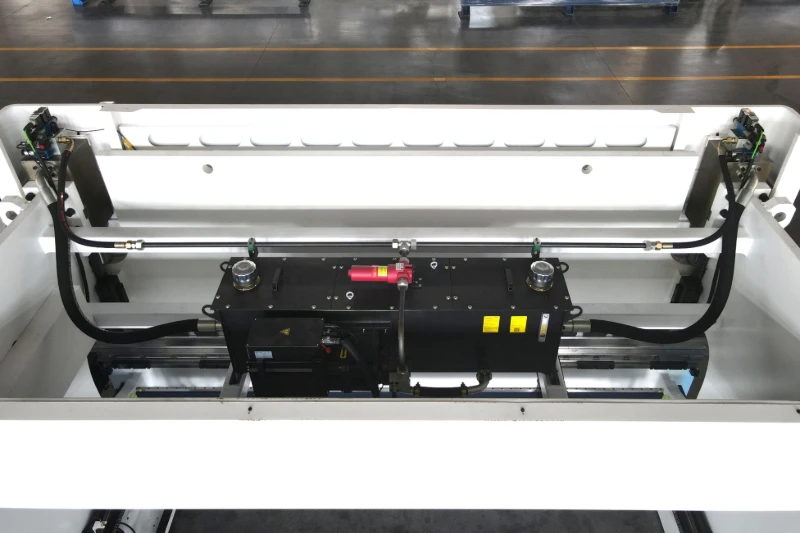

Hydraulic Oil Tank
Stores hydraulic oil and maintains system stability
Designed with good sealing and heat dissipation to ensure long-term cleanliness and consistent pressure output.
Pump
Provides continuous oil pressure for smooth operation
Continuously supplies pressure to actuators, enabling reliable and efficient movement during processing.

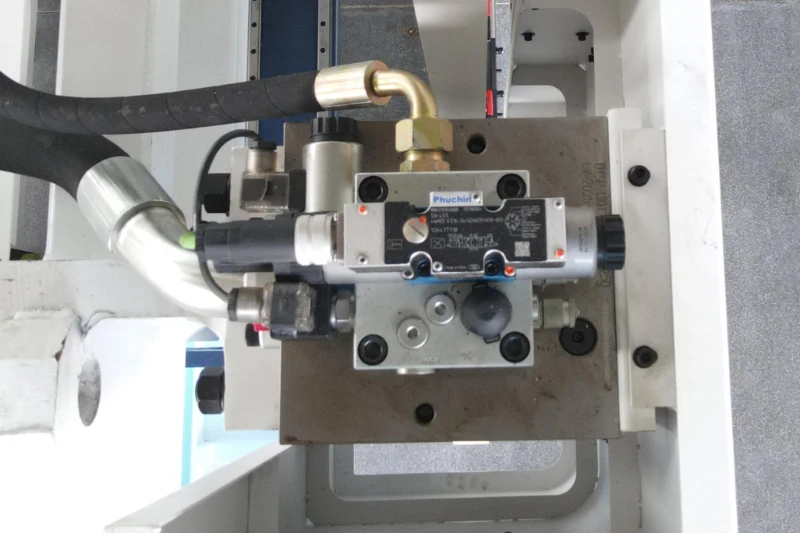

Valve Block
Controls oil flow paths for coordinated actions
Manages fluid distribution efficiently, ensuring smooth transitions and synchronized system movements.

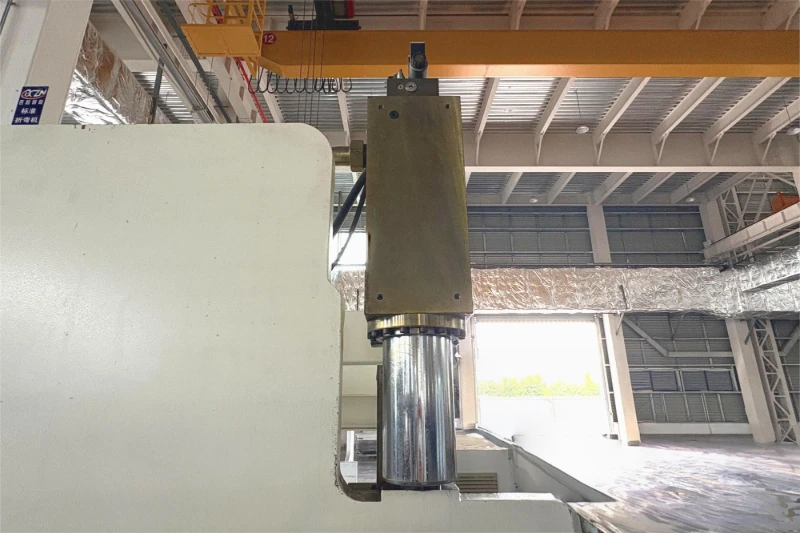

Main Hydraulic Cylinder
Provides stable motion for high-precision bending
Drives the ram up and down with smooth, powerful action, ensuring accurate forming.

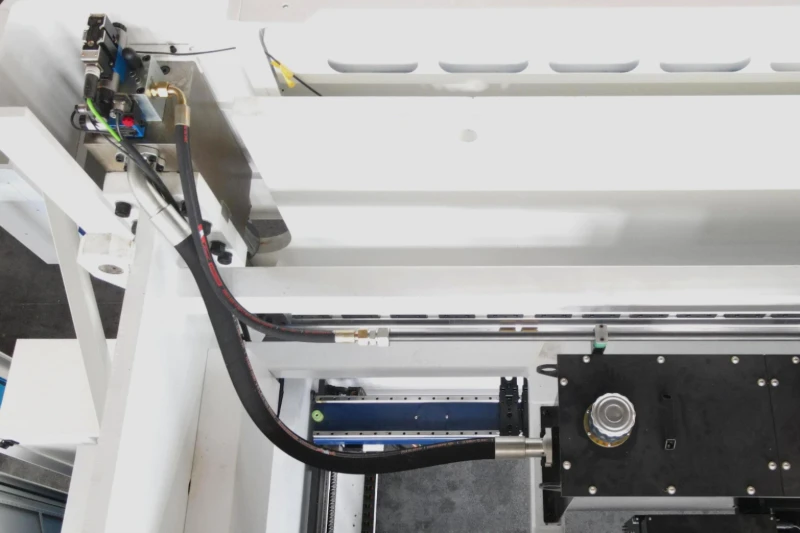

Hydraulic Fittings
Sealed connections prevent leakage and ensure safety
Durable and pressure-resistant fittings secure oil paths and protect the system from leaks.
Backgauge System
The system offers fast positioning and high repeatability to handle various workpiece sizes efficiently and accurately.

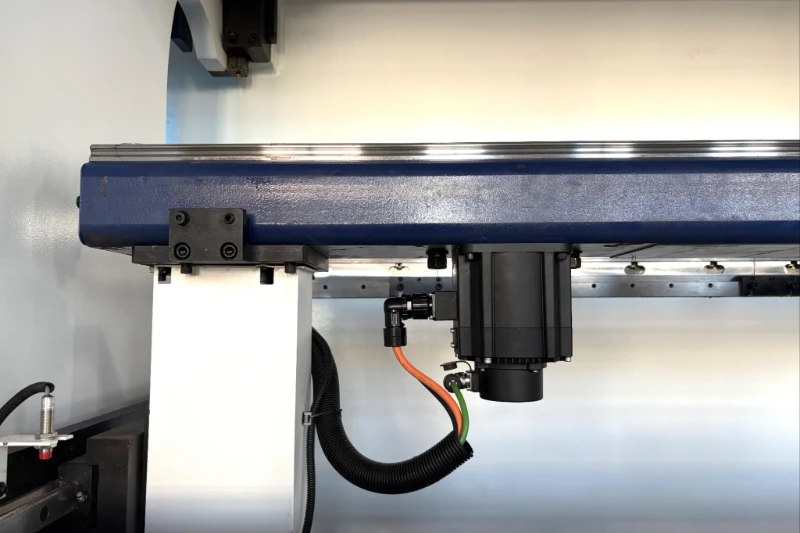

Servo Motor & Drive
Controls gauge movement for accurate positioning
It enables fast, precise motion of the backgauge, improving setup efficiency and consistency.

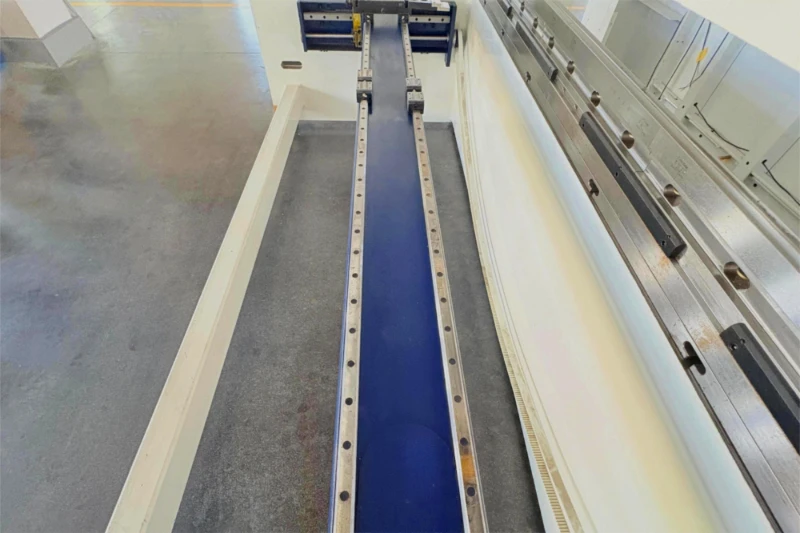

Linear Guide Rail
Guides smooth movement and extends service life
Provides low-friction motion to reduce wear and maintain long-term alignment.

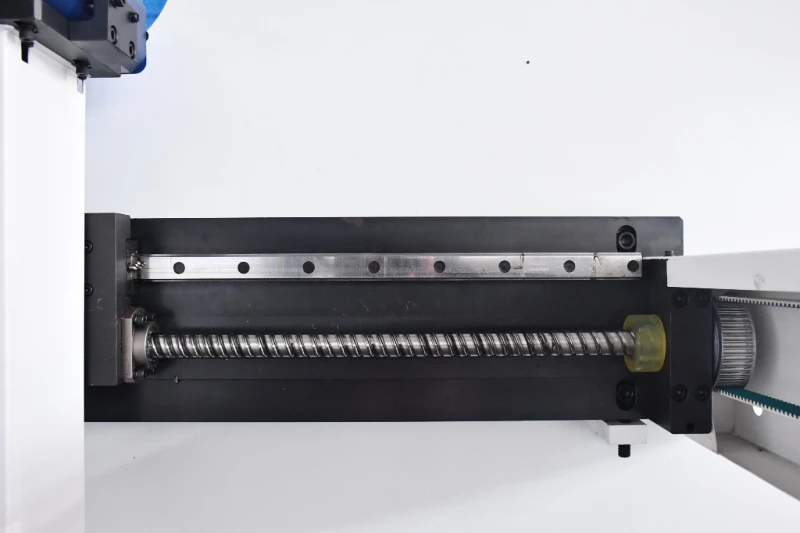

Ball Screw
High-precision transmission for repeatable positioning
Delivers accurate motion control for reliable and consistent backgauge performance during repeated positioning.

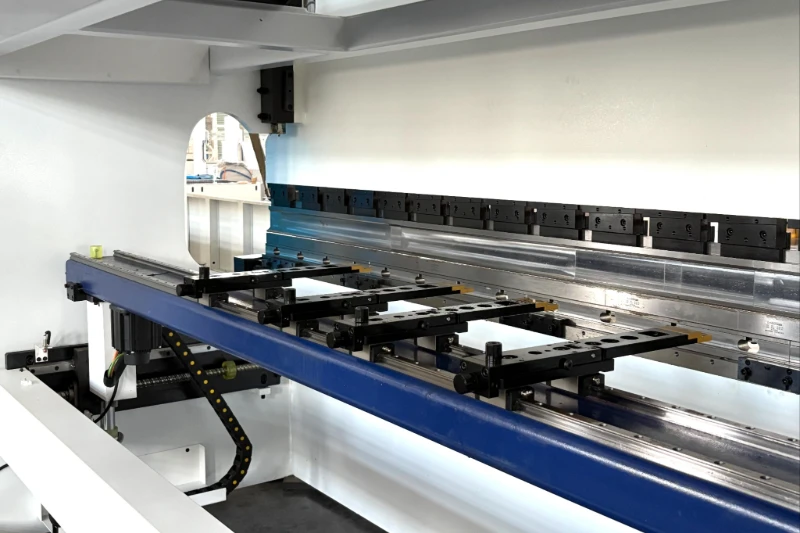

Back Gauge Finger
Adjustable positioning to fit various workpieces
Flexible positioning allows compatibility with different workpiece sizes and shapes.
Control System
Supporting graphical programming and multi-axis coordination, the system simplifies operation and significantly enhances automation and processing consistency.
CNC Controller
Optional
Enables graphic programming and multi-axis coordination
Supports graphic programming and multi-axis linkage capabilities for flexible and automated operation.

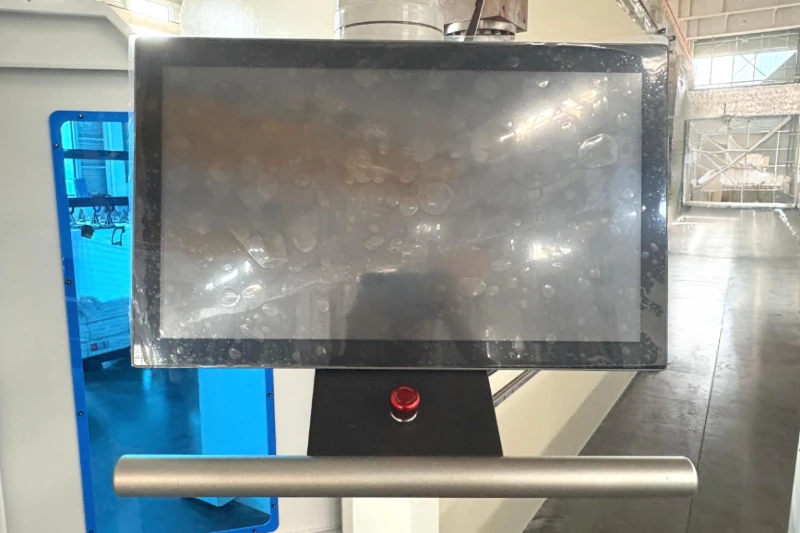

HMI Touch Panel
Intuitive interface enhances user experience
Features a clear and responsive touchscreen for real-time settings, monitoring, and operation.
Electrical System
Featuring a clean and organized layout, the system ensures electrical safety, easy maintenance, and long-term operational stability.

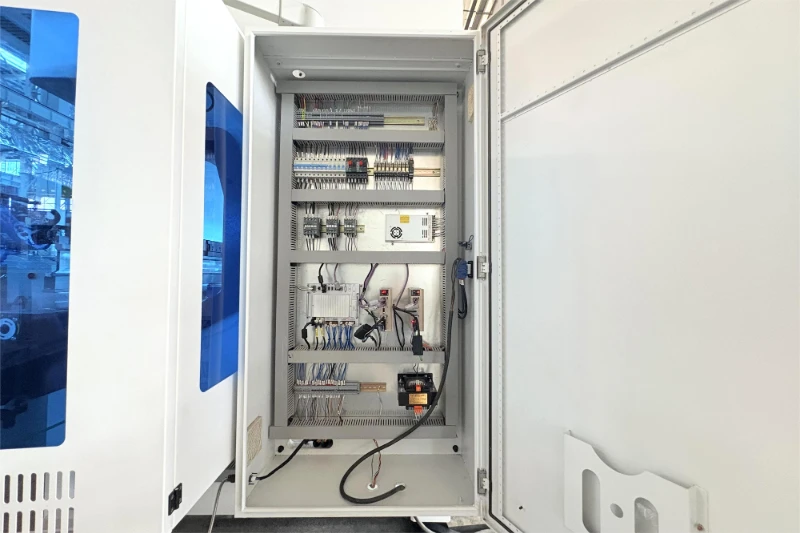

Electrical
Organized wiring for safe, easy maintenance
Integrates all key electrical components with neat layout, enhancing safety and maintenance convenience.

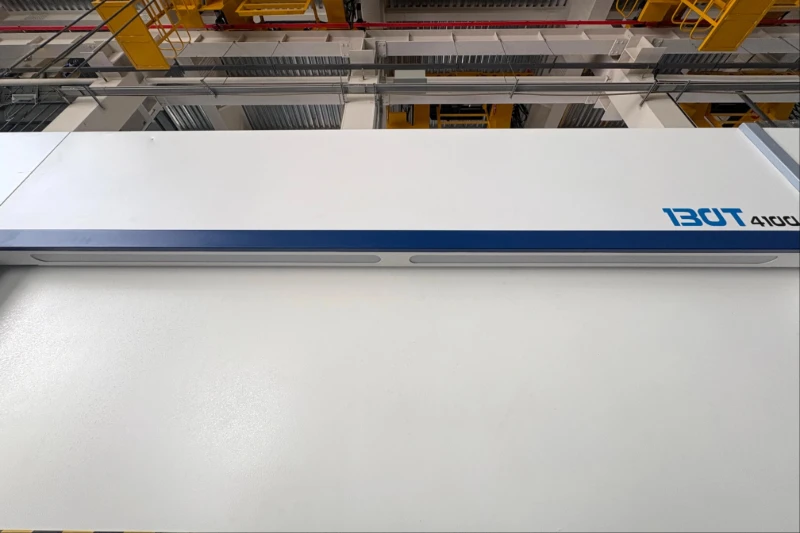

LED Work Area Light
Bright lighting improves workspace visibility
Ensures a good field of vision even in low-light conditions, facilitating detailed observation and safe operation.
Tooling System
The system allows quick changeovers and compatibility with various tools, improving flexibility for diverse bending applications.

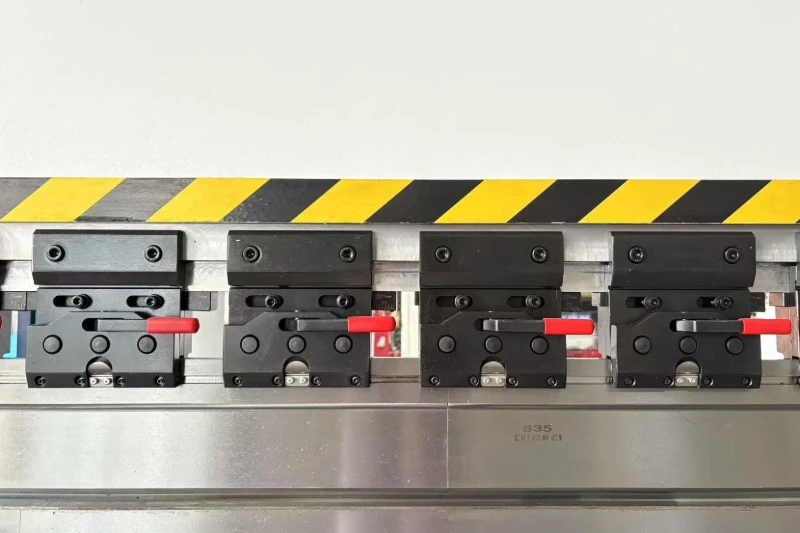

Quick Clamp
Optional
One-touch clamping boosts changeover efficiency
Allows quick and secure mold replacement, reducing downtime and increasing productivity.

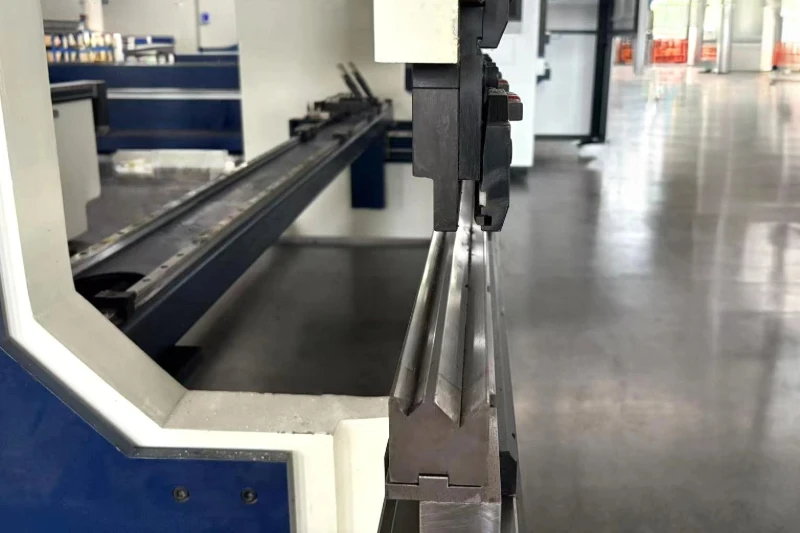

Mold
Optional
Durable and precise for various bending needs
There are a wide variety of molds available, which can be adapted to different materials and process requirements.
Safety System
With multiple active and passive protections, the system minimizes operational risks and ensures safety for both operator and equipment.

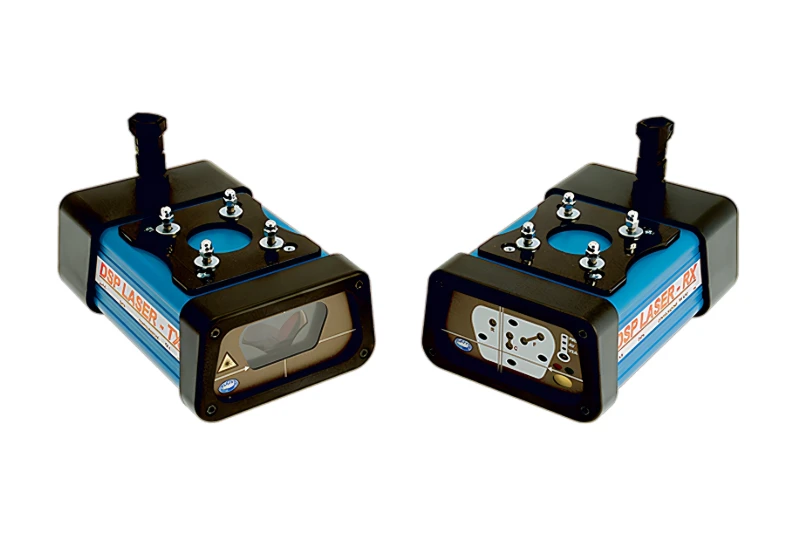

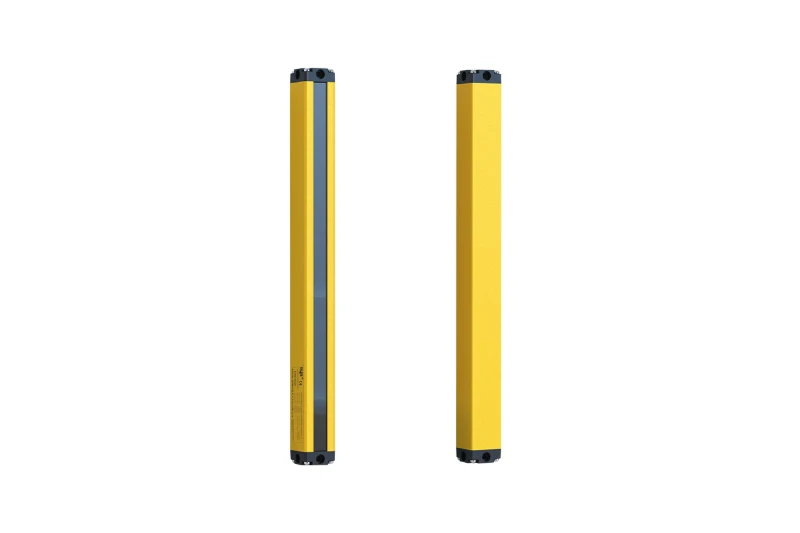

Front Guard Protection
Optional
Real-time detection to prevent injury
Safety light curtain detect intrusions and abnormal operation,and instantly stop machine motion to ensure operator safety.
Rear Guard Protection
Encloses the back area to avoid unauthorized access
The rear door adopts a closed structure design to prevent non-operating personnel from entering the dangerous area.

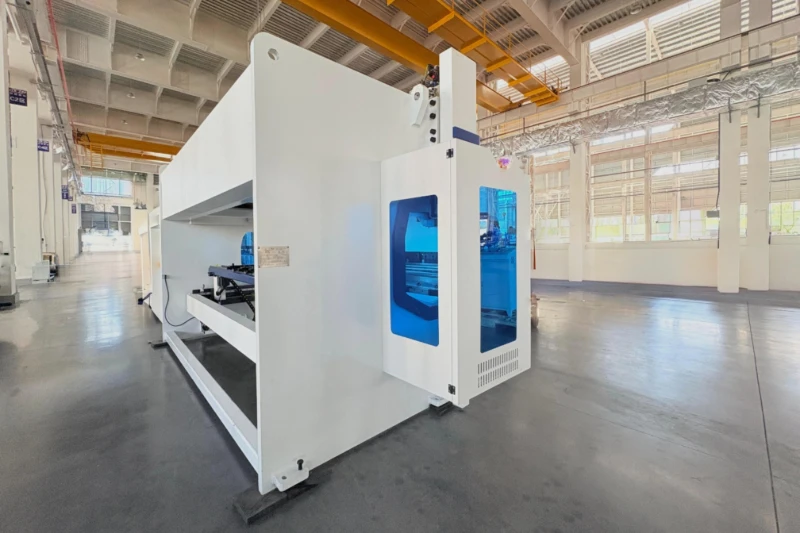

Left/Right Guard Protection
Side doors isolate moving parts for safety
Fully enclosed design protects operators from accidental contact and external interference.

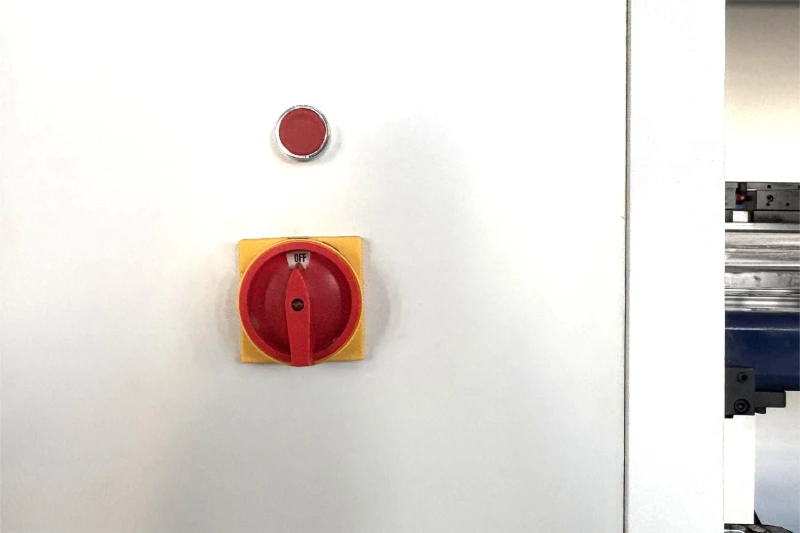

Emergency Stop
One-press shutdown for emergency response
Stops all operations immediately to prevent equipment damage or injury in case of sudden abnormal situations.

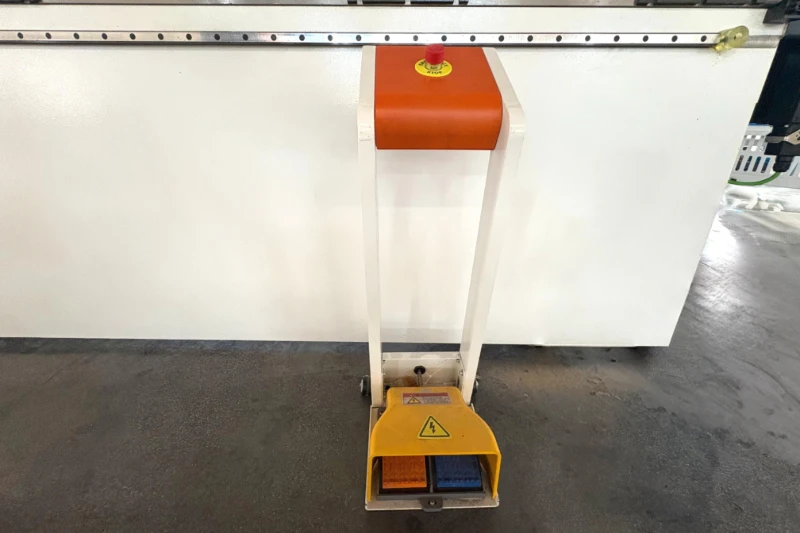

Foot Pedal
Hands-free control improves operating efficiency
Flexible foot pedal control facilitates the operator to complete the bending operation efficiently while ensuring safety.
Auxiliary System
The system supports integration of smart auxiliary devices for automated handling and environmental control, enhancing production intelligence.

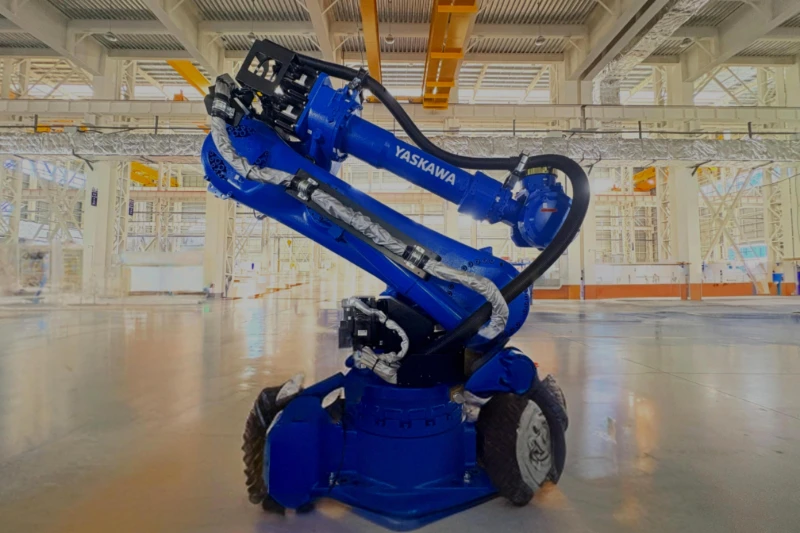

Bending Robot
Automates loading and bending for smart production
Performs automated loading/unloading and bending tasks to build an efficient, flexible manufacturing line.
Oil Temperature Control Unit
Maintains oil temperature for stable performance
Regulates hydraulic oil temperature in real-time to prevent overheating and ensure continuous operation.
Product Technical Specifications
Please check the technical details you require. If necessary, please contact us. Help Center
| Basic Parameters | Bending Capacity (kN) | 800 |
| Bending Length (mm) | 2500 | |
| Distance Between Columns (mm) | 2000 | |
| Open Height (mm) | 450 | |
| Throat Depth (mm) | 500 | |
| Ram Stroke (mm) | 160 | |
| Main Motor Power (kW) | 7.5 | |
| Hydraulic Tank Capacity (L) | 280 | |
| L×W×H Overall Dimensionsm (mm) | 3360×1625×2450 | |
| Overall Weight (kg) | 6300 | |
| Performance | X-Axis Stroke | 800 |
| R-Axis Stroke | 200 | |
| X-Axis Speed（mm/s） | 550 | |
| R-Axis Speed（mm/s） | 200 | |
| Max Fast Approach Speed | 200 | |
| Max Working Speed | 1-15 | |
| Max Return Speed | 180 | |
| Mechanical System | Bed | Steel Plate Welding |
| Lifting Beam | ● | |
| Working Table | ● | |
| Magnetic Linear Scale | ● | |
| Support Arm | ▲ | |
| Deflection Compensation | ● | |
| Hydraulic System | Main Servo Motor | ● |
| Hydraulic Oil Tank | ● | |
| Pump | ● | |
| Valve Block | ● | |
| Main Hydraulic Cylinder | ● | |
| Hydraulic Fittings | ● | |
| Backgauge System | Servo Motor & Drive | ● |
| Linear Guide Rail | ● | |
| Ball Screw | ● | |
| Back Gauge Finger | ● | |
| Control System | Number of Axes | 4+1 axis 6+1 axis |
| CNC Controller | DELEM DA53T DELEM DA66S |
|
| HMI Touch Panel | ● | |
| Electrical System | Electrical Cabinet | ● |
| LED Work Area Light | ● | |
| Power Supply Voltage | Customizable | |
| Tooling System | Qucik Clamp | ▲ |
| Mold | Single-V Double-V Multi-V |
|
| Safety System | Anti-crush hand device | ▲ |
| Rear Guard Protection | ● | |
| Left/Right Guard Protection | ● | |
| Emergency Stop | ● | |
| Foot Pedal | ● | |
| Auxiliary System | Bending Robot | ○ |
| Oil Temperature Control Unit | ○ |
| Basic Parameters | Bending Capacity (kN) | 1100 |
| Bending Length (mm) | 2500 | |
| Distance Between Columns (mm) | 2000 | |
| Open Height (mm) | 540 | |
| Throat Depth (mm) | 500 | |
| Ram Stroke (mm) | 250 | |
| Main Motor Power (kW) | 9 | |
| Hydraulic Tank Capacity (L) | 280 | |
| L×W×H Overall Dimensionsm (mm) | 3400×1740×2625 | |
| Overall Weight (kg) | 6700 | |
| Performance | X-Axis Stroke | 800 |
| R-Axis Stroke | 200 | |
| X-Axis Speed（mm/s） | 550 | |
| R-Axis Speed（mm/s） | 200 | |
| Max Fast Approach Speed | 200 | |
| Max Working Speed | 15 | |
| Max Return Speed | 180 | |
| Mechanical System | Bed | Steel Plate Welding |
| Lifting Beam | ● | |
| Working Table | ● | |
| Magnetic Linear Scale | ● | |
| Support Arm | ▲ | |
| Deflection Compensation | ● | |
| Hydraulic System | Main Servo Motor | ● |
| Hydraulic Oil Tank | ● | |
| Pump | ● | |
| Valve Block | ● | |
| Main Hydraulic Cylinder | ● | |
| Hydraulic Fittings | ● | |
| Backgauge System | Servo Motor & Drive | ● |
| Linear Guide Rail | ● | |
| Ball Screw | ● | |
| Back Gauge Finger | ● | |
| Control System | Number of Axes | 4+1 axis 6+1 axis |
| CNC Controller | DELEM DA53T DELEM DA66S |
|
| HMI Touch Panel | ● | |
| Electrical System | Electrical Cabinet | ● |
| LED Work Area Light | ● | |
| Power Supply Voltage | Customizable | |
| Tooling System | Qucik Clamp | ▲ |
| Mold | Single-V Double-V Multi-V |
|
| Safety System | Anti-crush hand device | ▲ |
| Rear Guard Protection | ● | |
| Left/Right Guard Protection | ● | |
| Emergency Stop | ● | |
| Foot Pedal | ● | |
| Auxiliary System | Bending Robot | ○ |
| Oil Temperature Control Unit | ○ |
| Basic Parameters | Bending Capacity (kN) | 1100 |
| Bending Length (mm) | 3200 | |
| Distance Between Columns (mm) | 2700 | |
| Open Height (mm) | 540 | |
| Throat Depth (mm) | 500 | |
| Ram Stroke (mm) | 250 | |
| Main Motor Power (kW) | 9 | |
| Hydraulic Tank Capacity (L) | 280 | |
| L×W×H Overall Dimensionsm (mm) | 4100×1740×2625 | |
| Overall Weight (kg) | 7690 | |
| Performance | X-Axis Stroke | 800 |
| R-Axis Stroke | 200 | |
| X-Axis Speed（mm/s） | 550 | |
| R-Axis Speed（mm/s） | 200 | |
| Max Fast Approach Speed | 200 | |
| Max Working Speed | 15 | |
| Max Return Speed | 180 | |
| Mechanical System | Bed | Steel Plate Welding |
| Lifting Beam | ● | |
| Working Table | ● | |
| Magnetic Linear Scale | ● | |
| Support Arm | ▲ | |
| Deflection Compensation | ● | |
| Hydraulic System | Main Servo Motor | ● |
| Hydraulic Oil Tank | ● | |
| Pump | ● | |
| Valve Block | ● | |
| Main Hydraulic Cylinder | ● | |
| Hydraulic Fittings | ● | |
| Backgauge System | Servo Motor & Drive | ● |
| Linear Guide Rail | ● | |
| Ball Screw | ● | |
| Back Gauge Finger | ● | |
| Control System | Number of Axes | 4+1 axis 6+1 axis |
| CNC Controller | DELEM DA53T DELEM DA66S |
|
| HMI Touch Panel | ● | |
| Electrical System | Electrical Cabinet | ● |
| LED Work Area Light | ● | |
| Power Supply Voltage | Customizable | |
| Tooling System | Qucik Clamp | ▲ |
| Mold | Single-V Double-V Multi-V |
|
| Safety System | Anti-crush hand device | ▲ |
| Rear Guard Protection | ● | |
| Left/Right Guard Protection | ● | |
| Emergency Stop | ● | |
| Foot Pedal | ● | |
| Auxiliary System | Bending Robot | ○ |
| Oil Temperature Control Unit | ○ |
| Basic Parameters | Bending Capacity (kN) | 1100 |
| Bending Length (mm) | 4100 | |
| Distance Between Columns (mm) | 3600 | |
| Open Height (mm) | 540 | |
| Throat Depth (mm) | 500 | |
| Ram Stroke (mm) | 250 | |
| Main Motor Power (kW) | 9 | |
| Hydraulic Tank Capacity (L) | 280 | |
| L×W×H Overall Dimensionsm (mm) | 5000×1740×2675 | |
| Overall Weight (kg) | 9390 | |
| Performance | X-Axis Stroke | 800 |
| R-Axis Stroke | 200 | |
| X-Axis Speed（mm/s） | 550 | |
| R-Axis Speed（mm/s） | 200 | |
| Max Fast Approach Speed | 200 | |
| Max Working Speed | 15 | |
| Max Return Speed | 180 | |
| Mechanical System | Bed | Steel Plate Welding |
| Lifting Beam | ● | |
| Working Table | ● | |
| Magnetic Linear Scale | ● | |
| Support Arm | ▲ | |
| Deflection Compensation | ● | |
| Hydraulic System | Main Servo Motor | ● |
| Hydraulic Oil Tank | ● | |
| Pump | ● | |
| Valve Block | ● | |
| Main Hydraulic Cylinder | ● | |
| Hydraulic Fittings | ● | |
| Backgauge System | Servo Motor & Drive | ● |
| Linear Guide Rail | ● | |
| Ball Screw | ● | |
| Back Gauge Finger | ● | |
| Control System | Number of Axes | 4+1 axis 6+1 axis |
| CNC Controller | DELEM DA53T DELEM DA66S |
|
| HMI Touch Panel | ● | |
| Electrical System | Electrical Cabinet | ● |
| LED Work Area Light | ● | |
| Power Supply Voltage | Customizable | |
| Tooling System | Qucik Clamp | ▲ |
| Mold | Single-V Double-V Multi-V |
|
| Safety System | Anti-crush hand device | ▲ |
| Rear Guard Protection | ● | |
| Left/Right Guard Protection | ● | |
| Emergency Stop | ● | |
| Foot Pedal | ● | |
| Auxiliary System | Bending Robot | ○ |
| Oil Temperature Control Unit | ○ |
| Basic Parameters | Bending Capacity (kN) | 1100 |
| Bending Length (mm) | 5100 | |
| Distance Between Columns (mm) | 4200 | |
| Open Height (mm) | 540 | |
| Throat Depth (mm) | 500 | |
| Ram Stroke (mm) | 250 | |
| Main Motor Power (kW) | 9 | |
| Hydraulic Tank Capacity (L) | 280 | |
| L×W×H Overall Dimensionsm (mm) | 5610×1740×2975 | |
| Overall Weight (kg) | 13340 | |
| Performance | X-Axis Stroke | 800 |
| R-Axis Stroke | 200 | |
| X-Axis Speed（mm/s） | 550 | |
| R-Axis Speed（mm/s） | 200 | |
| Max Fast Approach Speed | 200 | |
| Max Working Speed | 15 | |
| Max Return Speed | 180 | |
| Mechanical System | Bed | |
| Lifting Beam | ||
| Working Table | ||
| Magnetic Linear Scale | ||
| Support Arm | ||
| Deflection Compensation | ||
| Hydraulic System | Main Servo Motor | |
| Hydraulic Oil Tank | ||
| Pump | ||
| Valve Block | ||
| Main Hydraulic Cylinder | ||
| Hydraulic Fittings | ||
| Backgauge System | Servo Motor & Drive | |
| Linear Guide Rail | ||
| Ball Screw | ||
| Back Gauge Finger | ||
| Control System | Number of Axes | |
| CNC Controller | ||
| HMI Touch Panel | ||
| Electrical System | Electrical Cabinet | |
| LED Work Area Light | ||
| Power Supply Voltage | ||
| Tooling System | Qucik Clamp | |
| Mold | ||
| Safety System | Anti-crush hand device | |
| Rear Guard Protection | ||
| Left/Right Guard Protection | ||
| Emergency Stop | ||
| Foot Pedal | ||
| Auxiliary System | Bending Robot | |
| Oil Temperature Control Unit |
| Basic Parameters | Bending Capacity (kN) | 1100 |
| Bending Length (mm) | 6100 | |
| Distance Between Columns (mm) | 5200 | |
| Open Height (mm) | 540 | |
| Throat Depth (mm) | 500 | |
| Ram Stroke (mm) | 250 | |
| Main Motor Power (kW) | 9 | |
| Hydraulic Tank Capacity (L) | 280 | |
| L×W×H Overall Dimensionsm (mm) | 6610×1740×3125 | |
| Overall Weight (kg) | 15450 | |
| Performance | X-Axis Stroke | 800 |
| R-Axis Stroke | 200 | |
| X-Axis Speed（mm/s） | 550 | |
| R-Axis Speed（mm/s） | 200 | |
| Max Fast Approach Speed | 200 | |
| Max Working Speed | 15 | |
| Max Return Speed | 180 | |
| Mechanical System | Bed | |
| Lifting Beam | ||
| Working Table | ||
| Magnetic Linear Scale | ||
| Support Arm | ||
| Deflection Compensation | ||
| Hydraulic System | Main Servo Motor | |
| Hydraulic Oil Tank | ||
| Pump | ||
| Valve Block | ||
| Main Hydraulic Cylinder | ||
| Hydraulic Fittings | ||
| Backgauge System | Servo Motor & Drive | |
| Linear Guide Rail | ||
| Ball Screw | ||
| Back Gauge Finger | ||
| Control System | Number of Axes | |
| CNC Controller | ||
| HMI Touch Panel | ||
| Electrical System | Electrical Cabinet | |
| LED Work Area Light | ||
| Power Supply Voltage | ||
| Tooling System | Qucik Clamp | |
| Mold | ||
| Safety System | Anti-crush hand device | |
| Rear Guard Protection | ||
| Left/Right Guard Protection | ||
| Emergency Stop | ||
| Foot Pedal | ||
| Auxiliary System | Bending Robot | |
| Oil Temperature Control Unit |
| Basic Parameters | Bending Capacity (kN) | 1300 |
| Bending Length (mm) | 3200 | |
| Distance Between Columns (mm) | 2700 | |
| Open Height (mm) | 540 | |
| Throat Depth (mm) | 500 | |
| Ram Stroke (mm) | 250 | |
| Main Motor Power (kW) | 9 | |
| Hydraulic Tank Capacity (L) | 280 | |
| L×W×H Overall Dimensionsm (mm) | 4100×1740×2645 | |
| Overall Weight (kg) | 7890 | |
| Performance | X-Axis Stroke | 800 |
| R-Axis Stroke | 200 | |
| X-Axis Speed（mm/s） | 550 | |
| R-Axis Speed（mm/s） | 200 | |
| Max Fast Approach Speed | 200 | |
| Max Working Speed | 15 | |
| Max Return Speed | 180 | |
| Mechanical System | Bed | Steel Plate Welding |
| Lifting Beam | ● | |
| Working Table | ● | |
| Magnetic Linear Scale | ● | |
| Support Arm | ▲ | |
| Deflection Compensation | ● | |
| Hydraulic System | Main Servo Motor | ● |
| Hydraulic Oil Tank | ● | |
| Pump | ● | |
| Valve Block | ● | |
| Main Hydraulic Cylinder | ● | |
| Hydraulic Fittings | ● | |
| Backgauge System | Servo Motor & Drive | ● |
| Linear Guide Rail | ● | |
| Ball Screw | ● | |
| Back Gauge Finger | ● | |
| Control System | Number of Axes | 4+1 axis 6+1 axis |
| CNC Controller | DELEM DA53T DELEM DA66S |
|
| HMI Touch Panel | ● | |
| Electrical System | Electrical Cabinet | ● |
| LED Work Area Light | ● | |
| Power Supply Voltage | Customizable | |
| Tooling System | Qucik Clamp | ▲ |
| Mold | Single-V Double-V Multi-V |
|
| Safety System | Anti-crush hand device | ▲ |
| Rear Guard Protection | ● | |
| Left/Right Guard Protection | ● | |
| Emergency Stop | ● | |
| Foot Pedal | ● | |
| Auxiliary System | Bending Robot | ○ |
| Oil Temperature Control Unit | ○ |
| Basic Parameters | Bending Capacity (kN) | 1300 |
| Bending Length (mm) | 4100 | |
| Distance Between Columns (mm) | 3600 | |
| Open Height (mm) | 540 | |
| Throat Depth (mm) | 500 | |
| Ram Stroke (mm) | 250 | |
| Main Motor Power (kW) | 9 | |
| Hydraulic Tank Capacity (L) | 280 | |
| L×W×H Overall Dimensionsm (mm) | 5000×1740×2695 | |
| Overall Weight (kg) | 9590 | |
| Performance | X-Axis Stroke | 800 |
| R-Axis Stroke | 200 | |
| X-Axis Speed（mm/s） | 550 | |
| R-Axis Speed（mm/s） | 200 | |
| Max Fast Approach Speed | 200 | |
| Max Working Speed | 15 | |
| Max Return Speed | 180 | |
| Mechanical System | Bed | Steel Plate Welding |
| Lifting Beam | ● | |
| Working Table | ● | |
| Magnetic Linear Scale | ● | |
| Support Arm | ▲ | |
| Deflection Compensation | ● | |
| Hydraulic System | Main Servo Motor | ● |
| Hydraulic Oil Tank | ● | |
| Pump | ● | |
| Valve Block | ● | |
| Main Hydraulic Cylinder | ● | |
| Hydraulic Fittings | ● | |
| Backgauge System | Servo Motor & Drive | ● |
| Linear Guide Rail | ● | |
| Ball Screw | ● | |
| Back Gauge Finger | ● | |
| Control System | Number of Axes | 4+1 axis 6+1 axis |
| CNC Controller | DELEM DA53T DELEM DA66S |
|
| HMI Touch Panel | ● | |
| Electrical System | Electrical Cabinet | ● |
| LED Work Area Light | ● | |
| Power Supply Voltage | Customizable | |
| Tooling System | Qucik Clamp | ▲ |
| Mold | Single-V Double-V Multi-V |
|
| Safety System | Anti-crush hand device | ▲ |
| Rear Guard Protection | ● | |
| Left/Right Guard Protection | ● | |
| Emergency Stop | ● | |
| Foot Pedal | ● | |
| Auxiliary System | Bending Robot | ○ |
| Oil Temperature Control Unit | ○ |
| Basic Parameters | Bending Capacity (kN) | 1300 |
| Bending Length (mm) | 5100 | |
| Distance Between Columns (mm) | 4200 | |
| Open Height (mm) | 540 | |
| Throat Depth (mm) | 500 | |
| Ram Stroke (mm) | 250 | |
| Main Motor Power (kW) | 9 | |
| Hydraulic Tank Capacity (L) | 280 | |
| L×W×H Overall Dimensionsm (mm) | 5610×1740×2995 | |
| Overall Weight (kg) | 13540 | |
| Performance | X-Axis Stroke | 800 |
| R-Axis Stroke | 200 | |
| X-Axis Speed（mm/s） | 550 | |
| R-Axis Speed（mm/s） | 200 | |
| Max Fast Approach Speed | 200 | |
| Max Working Speed | 15 | |
| Max Return Speed | 180 | |
| Mechanical System | Bed | |
| Lifting Beam | ||
| Working Table | ||
| Magnetic Linear Scale | ||
| Support Arm | ||
| Deflection Compensation | ||
| Hydraulic System | Main Servo Motor | |
| Hydraulic Oil Tank | ||
| Pump | ||
| Valve Block | ||
| Main Hydraulic Cylinder | ||
| Hydraulic Fittings | ||
| Backgauge System | Servo Motor & Drive | |
| Linear Guide Rail | ||
| Ball Screw | ||
| Back Gauge Finger | ||
| Control System | Number of Axes | |
| CNC Controller | ||
| HMI Touch Panel | ||
| Electrical System | Electrical Cabinet | |
| LED Work Area Light | ||
| Power Supply Voltage | ||
| Tooling System | Qucik Clamp | |
| Mold | ||
| Safety System | Anti-crush hand device | |
| Rear Guard Protection | ||
| Left/Right Guard Protection | ||
| Emergency Stop | ||
| Foot Pedal | ||
| Auxiliary System | Bending Robot | |
| Oil Temperature Control Unit |
| Basic Parameters | Bending Capacity (kN) | 1300 |
| Bending Length (mm) | 6100 | |
| Distance Between Columns (mm) | 5200 | |
| Open Height (mm) | 540 | |
| Throat Depth (mm) | 500 | |
| Ram Stroke (mm) | 250 | |
| Main Motor Power (kW) | 9 | |
| Hydraulic Tank Capacity (L) | 280 | |
| L×W×H Overall Dimensionsm (mm) | 6610×1740×3145 | |
| Overall Weight (kg) | 15650 | |
| Performance | X-Axis Stroke | 800 |
| R-Axis Stroke | 200 | |
| X-Axis Speed（mm/s） | 550 | |
| R-Axis Speed（mm/s） | 200 | |
| Max Fast Approach Speed | 200 | |
| Max Working Speed | 15 | |
| Max Return Speed | 180 | |
| Mechanical System | Bed | |
| Lifting Beam | ||
| Working Table | ||
| Magnetic Linear Scale | ||
| Support Arm | ||
| Deflection Compensation | ||
| Hydraulic System | Main Servo Motor | |
| Hydraulic Oil Tank | ||
| Pump | ||
| Valve Block | ||
| Main Hydraulic Cylinder | ||
| Hydraulic Fittings | ||
| Backgauge System | Servo Motor & Drive | |
| Linear Guide Rail | ||
| Ball Screw | ||
| Back Gauge Finger | ||
| Control System | Number of Axes | |
| CNC Controller | ||
| HMI Touch Panel | ||
| Electrical System | Electrical Cabinet | |
| LED Work Area Light | ||
| Power Supply Voltage | ||
| Tooling System | Qucik Clamp | |
| Mold | ||
| Safety System | Anti-crush hand device | |
| Rear Guard Protection | ||
| Left/Right Guard Protection | ||
| Emergency Stop | ||
| Foot Pedal | ||
| Auxiliary System | Bending Robot | |
| Oil Temperature Control Unit |
| Basic Parameters | Bending Capacity (kN) | 1700 |
| Bending Length (mm) | 3200 | |
| Distance Between Columns (mm) | 2700 | |
| Open Height (mm) | 540 | |
| Throat Depth (mm) | 500 | |
| Ram Stroke (mm) | 250 | |
| Main Motor Power (kW) | 15 | |
| Hydraulic Tank Capacity (L) | 280 | |
| L×W×H Overall Dimensionsm (mm) | 4120×1740×2675 | |
| Overall Weight (kg) | 9270 | |
| Performance | X-Axis Stroke | 800 |
| R-Axis Stroke | 200 | |
| X-Axis Speed（mm/s） | 550 | |
| R-Axis Speed（mm/s） | 200 | |
| Max Fast Approach Speed | 180 | |
| Max Working Speed | 15 | |
| Max Return Speed | 180 | |
| Mechanical System | Bed | Steel Plate Welding |
| Lifting Beam | ● | |
| Working Table | ● | |
| Magnetic Linear Scale | ● | |
| Support Arm | ▲ | |
| Deflection Compensation | ● | |
| Hydraulic System | Main Servo Motor | ● |
| Hydraulic Oil Tank | ● | |
| Pump | ● | |
| Valve Block | ● | |
| Main Hydraulic Cylinder | ● | |
| Hydraulic Fittings | ● | |
| Backgauge System | Servo Motor & Drive | ● |
| Linear Guide Rail | ● | |
| Ball Screw | ● | |
| Back Gauge Finger | ● | |
| Control System | Number of Axes | 4+1 axis 6+1 axis |
| CNC Controller | DELEM DA53T DELEM DA66S |
|
| HMI Touch Panel | ● | |
| Electrical System | Electrical Cabinet | ● |
| LED Work Area Light | ● | |
| Power Supply Voltage | Customizable | |
| Tooling System | Qucik Clamp | ▲ |
| Mold | Single-V Double-V Multi-V |
|
| Safety System | Anti-crush hand device | ▲ |
| Rear Guard Protection | ● | |
| Left/Right Guard Protection | ● | |
| Emergency Stop | ● | |
| Foot Pedal | ● | |
| Auxiliary System | Bending Robot | ○ |
| Oil Temperature Control Unit | ○ |
| Basic Parameters | Bending Capacity (kN) | 1700 |
| Bending Length (mm) | 4100 | |
| Distance Between Columns (mm) | 3600 | |
| Open Height (mm) | 540 | |
| Throat Depth (mm) | 500 | |
| Ram Stroke (mm) | 250 | |
| Main Motor Power (kW) | 15 | |
| Hydraulic Tank Capacity (L) | 280 | |
| L×W×H Overall Dimensionsm (mm) | 5020×1740×2725 | |
| Overall Weight (kg) | 10910 | |
| Performance | X-Axis Stroke | 800 |
| R-Axis Stroke | 200 | |
| X-Axis Speed（mm/s） | 550 | |
| R-Axis Speed（mm/s） | 200 | |
| Max Fast Approach Speed | 180 | |
| Max Working Speed | 15 | |
| Max Return Speed | 180 | |
| Mechanical System | Bed | Steel Plate Welding |
| Lifting Beam | ● | |
| Working Table | ● | |
| Magnetic Linear Scale | ● | |
| Support Arm | ▲ | |
| Deflection Compensation | ● | |
| Hydraulic System | Main Servo Motor | ● |
| Hydraulic Oil Tank | ● | |
| Pump | ● | |
| Valve Block | ● | |
| Main Hydraulic Cylinder | ● | |
| Hydraulic Fittings | ● | |
| Backgauge System | Servo Motor & Drive | ● |
| Linear Guide Rail | ● | |
| Ball Screw | ● | |
| Back Gauge Finger | ● | |
| Control System | Number of Axes | 4+1 axis 6+1 axis |
| CNC Controller | DELEM DA53T DELEM DA66S |
|
| HMI Touch Panel | ● | |
| Electrical System | Electrical Cabinet | ● |
| LED Work Area Light | ● | |
| Power Supply Voltage | Customizable | |
| Tooling System | Qucik Clamp | ▲ |
| Mold | Single-V Double-V Multi-V |
|
| Safety System | Anti-crush hand device | ▲ |
| Rear Guard Protection | ● | |
| Left/Right Guard Protection | ● | |
| Emergency Stop | ● | |
| Foot Pedal | ● | |
| Auxiliary System | Bending Robot | ○ |
| Oil Temperature Control Unit | ○ |
| Basic Parameters | Bending Capacity (kN) | 1700 |
| Bending Length (mm) | 5100 | |
| Distance Between Columns (mm) | 4200 | |
| Open Height (mm) | 540 | |
| Throat Depth (mm) | 500 | |
| Ram Stroke (mm) | 250 | |
| Main Motor Power (kW) | 15 | |
| Hydraulic Tank Capacity (L) | 280 | |
| L×W×H Overall Dimensionsm (mm) | 5620×1840×3125 | |
| Overall Weight (kg) | 15150 | |
| Performance | X-Axis Stroke | 800 |
| R-Axis Stroke | 200 | |
| X-Axis Speed（mm/s） | 550 | |
| R-Axis Speed（mm/s） | 200 | |
| Max Fast Approach Speed | 180 | |
| Max Working Speed | 15 | |
| Max Return Speed | 180 | |
| Mechanical System | Bed | Steel Plate Welding |
| Lifting Beam | ● | |
| Working Table | ● | |
| Magnetic Linear Scale | ● | |
| Support Arm | ▲ | |
| Deflection Compensation | ● | |
| Hydraulic System | Main Servo Motor | ● |
| Hydraulic Oil Tank | ● | |
| Pump | ● | |
| Valve Block | ● | |
| Main Hydraulic Cylinder | ● | |
| Hydraulic Fittings | ● | |
| Backgauge System | Servo Motor & Drive | ● |
| Linear Guide Rail | ● | |
| Ball Screw | ● | |
| Back Gauge Finger | ● | |
| Control System | Number of Axes | 4+1 axis 6+1 axis |
| CNC Controller | DELEM DA53T DELEM DA66S |
|
| HMI Touch Panel | ● | |
| Electrical System | Electrical Cabinet | ● |
| LED Work Area Light | ● | |
| Power Supply Voltage | Customizable | |
| Tooling System | Qucik Clamp | ▲ |
| Mold | Single-V Double-V Multi-V |
|
| Safety System | Anti-crush hand device | ▲ |
| Rear Guard Protection | ● | |
| Left/Right Guard Protection | ● | |
| Emergency Stop | ● | |
| Foot Pedal | ● | |
| Auxiliary System | Bending Robot | ○ |
| Oil Temperature Control Unit | ○ |
| Basic Parameters | Bending Capacity (kN) | 1700 |
| Bending Length (mm) | 6100 | |
| Distance Between Columns (mm) | 5200 | |
| Open Height (mm) | 540 | |
| Throat Depth (mm) | 500 | |
| Ram Stroke (mm) | 250 | |
| Main Motor Power (kW) | 15 | |
| Hydraulic Tank Capacity (L) | 280 | |
| L×W×H Overall Dimensionsm (mm) | 6620×1840×3325 | |
| Overall Weight (kg) | 18210 | |
| Performance | X-Axis Stroke | 800 |
| R-Axis Stroke | 200 | |
| X-Axis Speed（mm/s） | 550 | |
| R-Axis Speed（mm/s） | 200 | |
| Max Fast Approach Speed | 180 | |
| Max Working Speed | 15 | |
| Max Return Speed | 180 | |
| Mechanical System | Bed | Steel Plate Welding |
| Lifting Beam | ● | |
| Working Table | ● | |
| Magnetic Linear Scale | ● | |
| Support Arm | ▲ | |
| Deflection Compensation | ● | |
| Hydraulic System | Main Servo Motor | ● |
| Hydraulic Oil Tank | ● | |
| Pump | ● | |
| Valve Block | ● | |
| Main Hydraulic Cylinder | ● | |
| Hydraulic Fittings | ● | |
| Backgauge System | Servo Motor & Drive | ● |
| Linear Guide Rail | ● | |
| Ball Screw | ● | |
| Back Gauge Finger | ● | |
| Control System | Number of Axes | 4+1 axis 6+1 axis |
| CNC Controller | DELEM DA53T DELEM DA66S |
|
| HMI Touch Panel | ● | |
| Electrical System | Electrical Cabinet | ● |
| LED Work Area Light | ● | |
| Power Supply Voltage | Customizable | |
| Tooling System | Qucik Clamp | ▲ |
| Mold | Single-V Double-V Multi-V |
|
| Safety System | Anti-crush hand device | ▲ |
| Rear Guard Protection | ● | |
| Left/Right Guard Protection | ● | |
| Emergency Stop | ● | |
| Foot Pedal | ● | |
| Auxiliary System | Bending Robot | ○ |
| Oil Temperature Control Unit | ○ |
| Basic Parameters | Bending Capacity (kN) | 2200 |
| Bending Length (mm) | 3200 | |
| Distance Between Columns (mm) | 2700 | |
| Open Height (mm) | 540 | |
| Throat Depth (mm) | 500 | |
| Ram Stroke (mm) | 250 | |
| Main Motor Power (kW) | 15 | |
| Hydraulic Tank Capacity (L) | 280 | |
| L×W×H Overall Dimensionsm (mm) | 4140×1870×2885 | |
| Overall Weight (kg) | 11350 | |
| Performance | X-Axis Stroke | 800 |
| R-Axis Stroke | 200 | |
| X-Axis Speed（mm/s） | 550 | |
| R-Axis Speed（mm/s） | 200 | |
| Max Fast Approach Speed | 140 | |
| Max Working Speed | 15 | |
| Max Return Speed | 150 | |
| Mechanical System | Bed | Steel Plate Welding |
| Lifting Beam | ● | |
| Working Table | ● | |
| Magnetic Linear Scale | ● | |
| Support Arm | ▲ | |
| Deflection Compensation | ● | |
| Hydraulic System | Main Servo Motor | ● |
| Hydraulic Oil Tank | ● | |
| Pump | ● | |
| Valve Block | ● | |
| Main Hydraulic Cylinder | ● | |
| Hydraulic Fittings | ● | |
| Backgauge System | Servo Motor & Drive | ● |
| Linear Guide Rail | ● | |
| Ball Screw | ● | |
| Back Gauge Finger | ● | |
| Control System | Number of Axes | 4+1 axis 6+1 axis |
| CNC Controller | DELEM DA53T DELEM DA66S |
|
| HMI Touch Panel | ● | |
| Electrical System | Electrical Cabinet | ● |
| LED Work Area Light | ● | |
| Power Supply Voltage | Customizable | |
| Tooling System | Qucik Clamp | ▲ |
| Mold | Single-V Double-V Multi-V |
|
| Safety System | Anti-crush hand device | ▲ |
| Rear Guard Protection | ● | |
| Left/Right Guard Protection | ● | |
| Emergency Stop | ● | |
| Foot Pedal | ● | |
| Auxiliary System | Bending Robot | ○ |
| Oil Temperature Control Unit | ○ |
| Basic Parameters | Bending Capacity (kN) | 2200 |
| Bending Length (mm) | 4100 | |
| Distance Between Columns (mm) | 3600 | |
| Open Height (mm) | 540 | |
| Throat Depth (mm) | 500 | |
| Ram Stroke (mm) | 250 | |
| Main Motor Power (kW) | 15 | |
| Hydraulic Tank Capacity (L) | 280 | |
| L×W×H Overall Dimensionsm (mm) | 5040×1870×2885 | |
| Overall Weight (kg) | 13150 | |
| Performance | X-Axis Stroke | 800 |
| R-Axis Stroke | 200 | |
| X-Axis Speed（mm/s） | 550 | |
| R-Axis Speed（mm/s） | 200 | |
| Max Fast Approach Speed | 140 | |
| Max Working Speed | 15 | |
| Max Return Speed | 150 | |
| Mechanical System | Bed | Steel Plate Welding |
| Lifting Beam | ● | |
| Working Table | ● | |
| Magnetic Linear Scale | ● | |
| Support Arm | ▲ | |
| Deflection Compensation | ● | |
| Hydraulic System | Main Servo Motor | ● |
| Hydraulic Oil Tank | ● | |
| Pump | ● | |
| Valve Block | ● | |
| Main Hydraulic Cylinder | ● | |
| Hydraulic Fittings | ● | |
| Backgauge System | Servo Motor & Drive | ● |
| Linear Guide Rail | ● | |
| Ball Screw | ● | |
| Back Gauge Finger | ● | |
| Control System | Number of Axes | 4+1 axis 6+1 axis |
| CNC Controller | DELEM DA53T DELEM DA66S |
|
| HMI Touch Panel | ● | |
| Electrical System | Electrical Cabinet | ● |
| LED Work Area Light | ● | |
| Power Supply Voltage | Customizable | |
| Tooling System | Qucik Clamp | ▲ |
| Mold | Single-V Double-V Multi-V |
|
| Safety System | Anti-crush hand device | ▲ |
| Rear Guard Protection | ● | |
| Left/Right Guard Protection | ● | |
| Emergency Stop | ● | |
| Foot Pedal | ● | |
| Auxiliary System | Bending Robot | ○ |
| Oil Temperature Control Unit | ○ |
| Basic Parameters | Bending Capacity (kN) | 2200 |
| Bending Length (mm) | 5100 | |
| Distance Between Columns (mm) | 4200 | |
| Open Height (mm) | 540 | |
| Throat Depth (mm) | 500 | |
| Ram Stroke (mm) | 250 | |
| Main Motor Power (kW) | 15 | |
| Hydraulic Tank Capacity (L) | 280 | |
| L×W×H Overall Dimensionsm (mm) | 5640×1920×3125 | |
| Overall Weight (kg) | 17210 | |
| Performance | X-Axis Stroke | 800 |
| R-Axis Stroke | 200 | |
| X-Axis Speed（mm/s） | 550 | |
| R-Axis Speed（mm/s） | 200 | |
| Max Fast Approach Speed | 140 | |
| Max Working Speed | 15 | |
| Max Return Speed | 150 | |
| Mechanical System | Bed | Steel Plate Welding |
| Lifting Beam | ● | |
| Working Table | ● | |
| Magnetic Linear Scale | ● | |
| Support Arm | ▲ | |
| Deflection Compensation | ● | |
| Hydraulic System | Main Servo Motor | ● |
| Hydraulic Oil Tank | ● | |
| Pump | ● | |
| Valve Block | ● | |
| Main Hydraulic Cylinder | ● | |
| Hydraulic Fittings | ● | |
| Backgauge System | Servo Motor & Drive | ● |
| Linear Guide Rail | ● | |
| Ball Screw | ● | |
| Back Gauge Finger | ● | |
| Control System | Number of Axes | 4+1 axis 6+1 axis |
| CNC Controller | DELEM DA53T DELEM DA66S |
|
| HMI Touch Panel | ● | |
| Electrical System | Electrical Cabinet | ● |
| LED Work Area Light | ● | |
| Power Supply Voltage | Customizable | |
| Tooling System | Qucik Clamp | ▲ |
| Mold | Single-V Double-V Multi-V |
|
| Safety System | Anti-crush hand device | ▲ |
| Rear Guard Protection | ● | |
| Left/Right Guard Protection | ● | |
| Emergency Stop | ● | |
| Foot Pedal | ● | |
| Auxiliary System | Bending Robot | ○ |
| Oil Temperature Control Unit | ○ |
| Basic Parameters | Bending Capacity (kN) | 2200 |
| Bending Length (mm) | 6100 | |
| Distance Between Columns (mm) | 5200 | |
| Open Height (mm) | 540 | |
| Throat Depth (mm) | 500 | |
| Ram Stroke (mm) | 250 | |
| Main Motor Power (kW) | 15 | |
| Hydraulic Tank Capacity (L) | 280 | |
| L×W×H Overall Dimensionsm (mm) | 6640×1920×3100 | |
| Overall Weight (kg) | 20840 | |
| Performance | X-Axis Stroke | 800 |
| R-Axis Stroke | 200 | |
| X-Axis Speed（mm/s） | 550 | |
| R-Axis Speed（mm/s） | 200 | |
| Max Fast Approach Speed | 140 | |
| Max Working Speed | 15 | |
| Max Return Speed | 150 | |
| Mechanical System | Bed | Steel Plate Welding |
| Lifting Beam | ● | |
| Working Table | ● | |
| Magnetic Linear Scale | ● | |
| Support Arm | ▲ | |
| Deflection Compensation | ● | |
| Hydraulic System | Main Servo Motor | ● |
| Hydraulic Oil Tank | ● | |
| Pump | ● | |
| Valve Block | ● | |
| Main Hydraulic Cylinder | ● | |
| Hydraulic Fittings | ● | |
| Backgauge System | Servo Motor & Drive | ● |
| Linear Guide Rail | ● | |
| Ball Screw | ● | |
| Back Gauge Finger | ● | |
| Control System | Number of Axes | 4+1 axis 6+1 axis |
| CNC Controller | DELEM DA53T DELEM DA66S |
|
| HMI Touch Panel | ● | |
| Electrical System | Electrical Cabinet | ● |
| LED Work Area Light | ● | |
| Power Supply Voltage | Customizable | |
| Tooling System | Qucik Clamp | ▲ |
| Mold | Single-V Double-V Multi-V |
|
| Safety System | Anti-crush hand device | ▲ |
| Rear Guard Protection | ● | |
| Left/Right Guard Protection | ● | |
| Emergency Stop | ● | |
| Foot Pedal | ● | |
| Auxiliary System | Bending Robot | ○ |
| Oil Temperature Control Unit | ○ |
| Basic Parameters | Bending Capacity (kN) | 2500 |
| Bending Length (mm) | 3200 | |
| Distance Between Columns (mm) | 2700 | |
| Open Height (mm) | 540 | |
| Throat Depth (mm) | 500 | |
| Ram Stroke (mm) | 250 | |
| Main Motor Power (kW) | 22 | |
| Hydraulic Tank Capacity (L) | 600 | |
| L×W×H Overall Dimensionsm (mm) | 4160×1940×3060 | |
| Overall Weight (kg) | 13300 | |
| Performance | X-Axis Stroke | 800 |
| R-Axis Stroke | 200 | |
| X-Axis Speed（mm/s） | 550 | |
| R-Axis Speed（mm/s） | 200 | |
| Max Fast Approach Speed | 150 | |
| Max Working Speed | 15 | |
| Max Return Speed | 140 | |
| Mechanical System | Bed | Steel Plate Welding |
| Lifting Beam | ● | |
| Working Table | ● | |
| Magnetic Linear Scale | ● | |
| Support Arm | ▲ | |
| Deflection Compensation | ● | |
| Hydraulic System | Main Servo Motor | ● |
| Hydraulic Oil Tank | ● | |
| Pump | ● | |
| Valve Block | ● | |
| Main Hydraulic Cylinder | ● | |
| Hydraulic Fittings | ● | |
| Backgauge System | Servo Motor & Drive | ● |
| Linear Guide Rail | ● | |
| Ball Screw | ● | |
| Back Gauge Finger | ● | |
| Control System | Number of Axes | 4+1 axis 6+1 axis |
| CNC Controller | DELEM DA53T DELEM DA66S |
|
| HMI Touch Panel | ● | |
| Electrical System | Electrical Cabinet | ● |
| LED Work Area Light | ● | |
| Power Supply Voltage | Customizable | |
| Tooling System | Qucik Clamp | ▲ |
| Mold | Single-V Double-V Multi-V |
|
| Safety System | Anti-crush hand device | ▲ |
| Rear Guard Protection | ● | |
| Left/Right Guard Protection | ● | |
| Emergency Stop | ● | |
| Foot Pedal | ● | |
| Auxiliary System | Bending Robot | ○ |
| Oil Temperature Control Unit | ○ |
| Basic Parameters | Bending Capacity (kN) | 2500 |
| Bending Length (mm) | 4100 | |
| Distance Between Columns (mm) | 3600 | |
| Open Height (mm) | 540 | |
| Throat Depth (mm) | 500 | |
| Ram Stroke (mm) | 250 | |
| Main Motor Power (kW) | 22 | |
| Hydraulic Tank Capacity (L) | 600 | |
| L×W×H Overall Dimensionsm (mm) | 5060×1940×2975 | |
| Overall Weight (kg) | 14980 | |
| Performance | X-Axis Stroke | 800 |
| R-Axis Stroke | 200 | |
| X-Axis Speed（mm/s） | 550 | |
| R-Axis Speed（mm/s） | 200 | |
| Max Fast Approach Speed | 150 | |
| Max Working Speed | 15 | |
| Max Return Speed | 140 | |
| Mechanical System | Bed | Steel Plate Welding |
| Lifting Beam | ● | |
| Working Table | ● | |
| Magnetic Linear Scale | ● | |
| Support Arm | ▲ | |
| Deflection Compensation | ● | |
| Hydraulic System | Main Servo Motor | ● |
| Hydraulic Oil Tank | ● | |
| Pump | ● | |
| Valve Block | ● | |
| Main Hydraulic Cylinder | ● | |
| Hydraulic Fittings | ● | |
| Backgauge System | Servo Motor & Drive | ● |
| Linear Guide Rail | ● | |
| Ball Screw | ● | |
| Back Gauge Finger | ● | |
| Control System | Number of Axes | 4+1 axis 6+1 axis |
| CNC Controller | DELEM DA53T DELEM DA66S |
|
| HMI Touch Panel | ● | |
| Electrical System | Electrical Cabinet | ● |
| LED Work Area Light | ● | |
| Power Supply Voltage | Customizable | |
| Tooling System | Qucik Clamp | ▲ |
| Mold | Single-V Double-V Multi-V |
|
| Safety System | Anti-crush hand device | ▲ |
| Rear Guard Protection | ● | |
| Left/Right Guard Protection | ● | |
| Emergency Stop | ● | |
| Foot Pedal | ● | |
| Auxiliary System | Bending Robot | ○ |
| Oil Temperature Control Unit | ○ |
| Basic Parameters | Bending Capacity (kN) | 2500 |
| Bending Length (mm) | 5100 | |
| Distance Between Columns (mm) | 4200 | |
| Open Height (mm) | 540 | |
| Throat Depth (mm) | 500 | |
| Ram Stroke (mm) | 250 | |
| Main Motor Power (kW) | 22 | |
| Hydraulic Tank Capacity (L) | 600 | |
| L×W×H Overall Dimensionsm (mm) | 5660×1940×3175 | |
| Overall Weight (kg) | 19120 | |
| Performance | X-Axis Stroke | 800 |
| R-Axis Stroke | 200 | |
| X-Axis Speed（mm/s） | 550 | |
| R-Axis Speed（mm/s） | 200 | |
| Max Fast Approach Speed | 150 | |
| Max Working Speed | 15 | |
| Max Return Speed | 140 | |
| Mechanical System | Bed | Steel Plate Welding |
| Lifting Beam | ● | |
| Working Table | ● | |
| Magnetic Linear Scale | ● | |
| Support Arm | ▲ | |
| Deflection Compensation | ● | |
| Hydraulic System | Main Servo Motor | ● |
| Hydraulic Oil Tank | ● | |
| Pump | ● | |
| Valve Block | ● | |
| Main Hydraulic Cylinder | ● | |
| Hydraulic Fittings | ● | |
| Backgauge System | Servo Motor & Drive | ● |
| Linear Guide Rail | ● | |
| Ball Screw | ● | |
| Back Gauge Finger | ● | |
| Control System | Number of Axes | 4+1 axis 6+1 axis |
| CNC Controller | DELEM DA53T DELEM DA66S |
|
| HMI Touch Panel | ● | |
| Electrical System | Electrical Cabinet | ● |
| LED Work Area Light | ● | |
| Power Supply Voltage | Customizable | |
| Tooling System | Qucik Clamp | ▲ |
| Mold | Single-V Double-V Multi-V |
|
| Safety System | Anti-crush hand device | ▲ |
| Rear Guard Protection | ● | |
| Left/Right Guard Protection | ● | |
| Emergency Stop | ● | |
| Foot Pedal | ● | |
| Auxiliary System | Bending Robot | ○ |
| Oil Temperature Control Unit | ○ |
| Basic Parameters | Bending Capacity (kN) | 2500 |
| Bending Length (mm) | 6100 | |
| Distance Between Columns (mm) | 5200 | |
| Open Height (mm) | 540 | |
| Throat Depth (mm) | 500 | |
| Ram Stroke (mm) | 250 | |
| Main Motor Power (kW) | 22 | |
| Hydraulic Tank Capacity (L) | 600 | |
| L×W×H Overall Dimensionsm (mm) | 6660×1940×3225 | |
| Overall Weight (kg) | 22460 | |
| Performance | X-Axis Stroke | 800 |
| R-Axis Stroke | 200 | |
| X-Axis Speed（mm/s） | 550 | |
| R-Axis Speed（mm/s） | 200 | |
| Max Fast Approach Speed | 150 | |
| Max Working Speed | 15 | |
| Max Return Speed | 140 | |
| Mechanical System | Bed | Steel Plate Welding |
| Lifting Beam | ● | |
| Working Table | ● | |
| Magnetic Linear Scale | ● | |
| Support Arm | ▲ | |
| Deflection Compensation | ● | |
| Hydraulic System | Main Servo Motor | ● |
| Hydraulic Oil Tank | ● | |
| Pump | ● | |
| Valve Block | ● | |
| Main Hydraulic Cylinder | ● | |
| Hydraulic Fittings | ● | |
| Backgauge System | Servo Motor & Drive | ● |
| Linear Guide Rail | ● | |
| Ball Screw | ● | |
| Back Gauge Finger | ● | |
| Control System | Number of Axes | 4+1 axis 6+1 axis |
| CNC Controller | DELEM DA53T DELEM DA66S |
|
| HMI Touch Panel | ● | |
| Electrical System | Electrical Cabinet | ● |
| LED Work Area Light | ● | |
| Power Supply Voltage | Customizable | |
| Tooling System | Qucik Clamp | ▲ |
| Mold | Single-V Double-V Multi-V |
|
| Safety System | Anti-crush hand device | ▲ |
| Rear Guard Protection | ● | |
| Left/Right Guard Protection | ● | |
| Emergency Stop | ● | |
| Foot Pedal | ● | |
| Auxiliary System | Bending Robot | ○ |
| Oil Temperature Control Unit | ○ |
| Basic Parameters | Bending Capacity (kN) | 3200 |
| Bending Length (mm) | 3200 | |
| Distance Between Columns (mm) | 2700 | |
| Open Height (mm) | 590 | |
| Throat Depth (mm) | 500 | |
| Ram Stroke (mm) | 300 | |
| Main Motor Power (kW) | 22 | |
| Hydraulic Tank Capacity (L) | 600 | |
| L×W×H Overall Dimensionsm (mm) | 4180×2100×3240 | |
| Overall Weight (kg) | 16320 | |
| Performance | X-Axis Stroke | 800 |
| R-Axis Stroke | 200 | |
| X-Axis Speed（mm/s） | 550 | |
| R-Axis Speed（mm/s） | 200 | |
| Max Fast Approach Speed | 140 | |
| Max Working Speed | 15 | |
| Max Return Speed | 140 | |
| Mechanical System | Bed | Steel Plate Welding |
| Lifting Beam | ● | |
| Working Table | ● | |
| Magnetic Linear Scale | ● | |
| Support Arm | ▲ | |
| Deflection Compensation | ● | |
| Hydraulic System | Main Servo Motor | ● |
| Hydraulic Oil Tank | ● | |
| Pump | ● | |
| Valve Block | ● | |
| Main Hydraulic Cylinder | ● | |
| Hydraulic Fittings | ● | |
| Backgauge System | Servo Motor & Drive | ● |
| Linear Guide Rail | ● | |
| Ball Screw | ● | |
| Back Gauge Finger | ● | |
| Control System | Number of Axes | 4+1 axis 6+1 axis |
| CNC Controller | DELEM DA53T DELEM DA66S |
|
| HMI Touch Panel | ● | |
| Electrical System | Electrical Cabinet | ● |
| LED Work Area Light | ● | |
| Power Supply Voltage | Customizable | |
| Tooling System | Qucik Clamp | ▲ |
| Mold | Single-V Double-V Multi-V |
|
| Safety System | Anti-crush hand device | ▲ |
| Rear Guard Protection | ● | |
| Left/Right Guard Protection | ● | |
| Emergency Stop | ● | |
| Foot Pedal | ● | |
| Auxiliary System | Bending Robot | ○ |
| Oil Temperature Control Unit | ○ |
| Basic Parameters | Bending Capacity (kN) | 3200 |
| Bending Length (mm) | 4100 | |
| Distance Between Columns (mm) | 3600 | |
| Open Height (mm) | 590 | |
| Throat Depth (mm) | 500 | |
| Ram Stroke (mm) | 300 | |
| Main Motor Power (kW) | 22 | |
| Hydraulic Tank Capacity (L) | 600 | |
| L×W×H Overall Dimensionsm (mm) | 5080×2100×3240 | |
| Overall Weight (kg) | 18750 | |
| Performance | X-Axis Stroke | 800 |
| R-Axis Stroke | 200 | |
| X-Axis Speed（mm/s） | 550 | |
| R-Axis Speed（mm/s） | 200 | |
| Max Fast Approach Speed | 140 | |
| Max Working Speed | 15 | |
| Max Return Speed | 140 | |
| Mechanical System | Bed | Steel Plate Welding |
| Lifting Beam | ● | |
| Working Table | ● | |
| Magnetic Linear Scale | ● | |
| Support Arm | ▲ | |
| Deflection Compensation | ● | |
| Hydraulic System | Main Servo Motor | ● |
| Hydraulic Oil Tank | ● | |
| Pump | ● | |
| Valve Block | ● | |
| Main Hydraulic Cylinder | ● | |
| Hydraulic Fittings | ● | |
| Backgauge System | Servo Motor & Drive | ● |
| Linear Guide Rail | ● | |
| Ball Screw | ● | |
| Back Gauge Finger | ● | |
| Control System | Number of Axes | 4+1 axis 6+1 axis |
| CNC Controller | DELEM DA53T DELEM DA66S |
|
| HMI Touch Panel | ● | |
| Electrical System | Electrical Cabinet | ● |
| LED Work Area Light | ● | |
| Power Supply Voltage | Customizable | |
| Tooling System | Qucik Clamp | ▲ |
| Mold | Single-V Double-V Multi-V |
|
| Safety System | Anti-crush hand device | ▲ |
| Rear Guard Protection | ● | |
| Left/Right Guard Protection | ● | |
| Emergency Stop | ● | |
| Foot Pedal | ● | |
| Auxiliary System | Bending Robot | ○ |
| Oil Temperature Control Unit | ○ |
| Basic Parameters | Bending Capacity (kN) | 3200 |
| Bending Length (mm) | 5100 | |
| Distance Between Columns (mm) | 4200 | |
| Open Height (mm) | 590 | |
| Throat Depth (mm) | 500 | |
| Ram Stroke (mm) | 300 | |
| Main Motor Power (kW) | 22 | |
| Hydraulic Tank Capacity (L) | 600 | |
| L×W×H Overall Dimensionsm (mm) | 5680×2185×3560 | |
| Overall Weight (kg) | 24030 | |
| Performance | X-Axis Stroke | 800 |
| R-Axis Stroke | 200 | |
| X-Axis Speed（mm/s） | 550 | |
| R-Axis Speed（mm/s） | 200 | |
| Max Fast Approach Speed | 140 | |
| Max Working Speed | 15 | |
| Max Return Speed | 140 | |
| Mechanical System | Bed | Steel Plate Welding |
| Lifting Beam | ● | |
| Working Table | ● | |
| Magnetic Linear Scale | ● | |
| Support Arm | ▲ | |
| Deflection Compensation | ● | |
| Hydraulic System | Main Servo Motor | ● |
| Hydraulic Oil Tank | ● | |
| Pump | ● | |
| Valve Block | ● | |
| Main Hydraulic Cylinder | ● | |
| Hydraulic Fittings | ● | |
| Backgauge System | Servo Motor & Drive | ● |
| Linear Guide Rail | ● | |
| Ball Screw | ● | |
| Back Gauge Finger | ● | |
| Control System | Number of Axes | 4+1 axis 6+1 axis |
| CNC Controller | DELEM DA53T DELEM DA66S |
|
| HMI Touch Panel | ● | |
| Electrical System | Electrical Cabinet | ● |
| LED Work Area Light | ● | |
| Power Supply Voltage | Customizable | |
| Tooling System | Qucik Clamp | ▲ |
| Mold | Single-V Double-V Multi-V |
|
| Safety System | Anti-crush hand device | ▲ |
| Rear Guard Protection | ● | |
| Left/Right Guard Protection | ● | |
| Emergency Stop | ● | |
| Foot Pedal | ● | |
| Auxiliary System | Bending Robot | ○ |
| Oil Temperature Control Unit | ○ |
Automatic Quotation
Just follow 4 steps to quickly get a preliminary quote, which will help you make a budget in advance.
How to choose model?
Step 1
Confirm the product series and model
Step 2
Selecte the optional configurations you like
Step 3
Fill in your information correctly and submit it
Step 4
Check the quotation in your email
Get in Touch with Us Now!
Please fill in the form and describe your requirements. Our team will get back to you within 24 hours.
