BPP Series Press Arm Type Automatic Panel Bender
Choose the Press Arm Automatic Panel Bender for automated multi-edge bending, delivering unmatched precision and efficiency in cabinet and enclosure production – your smart manufacturing solution.
Mechanical System
The system provides excellent rigidity and stability, ensuring bending accuracy and structural reliability during long-term, high-load operation.

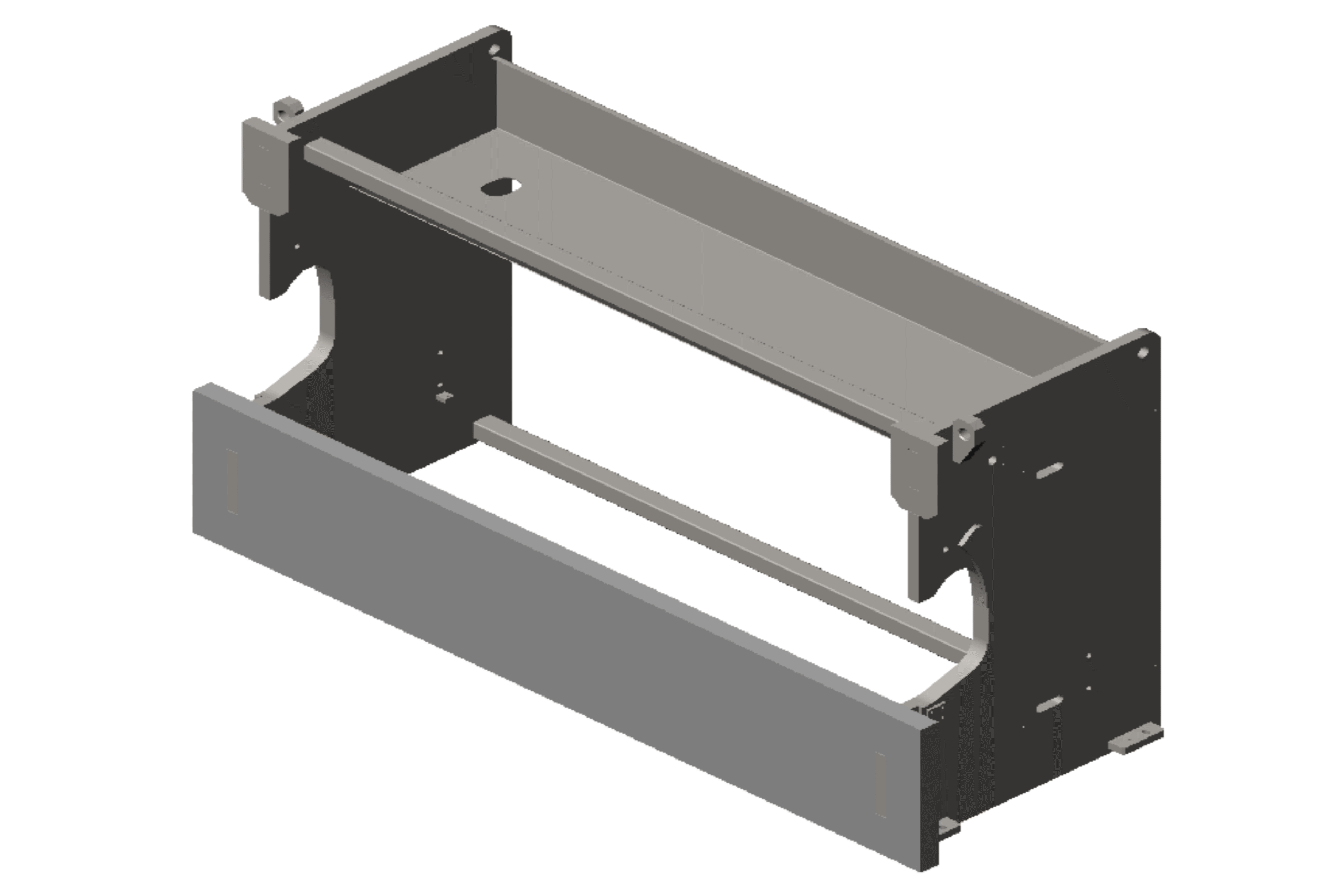

BED
Rigid design ensures stability
The bed is designed with high-strength steel structure, featuring excellent load-bearing capacity and anti-deformation performance.
Control Pendant Arm
Stable support improves operation convenience
The Control Pendant Arm holds the touch screen and CNC unit, allowing adjustable angles for optimal ergonomics.
Working Table
Stable support ensures precision
The flat and rigid surface supports the workpiece securely, preventing movement that may affect bending consistency.
Support Arm
Optional
Auxiliary support reduces operator fatigue
It provides reliable support for oversized parts, preventing sagging and reducing manual handling effort.
Drivertrain System
The system offers fast positioning and high repeatability to handle various workpiece sizes efficiently and accurately.
Servo Motor & Drive
Controls gauge movement for accurate positioning
It enables fast, precise motion of the backgauge, improving setup efficiency and consistency.
Linear Guide Rail
Guides smooth movement and extends service life
Provides low-friction motion to reduce wear and maintain long-term alignment.
Ball Screw
High-precision transmission for repeatable positioning
Delivers accurate motion control for reliable and consistent backgauge performance during repeated positioning.
Control System
Supporting graphical programming and multi-axis coordination, the system simplifies operation and significantly enhances automation and processing consistency.

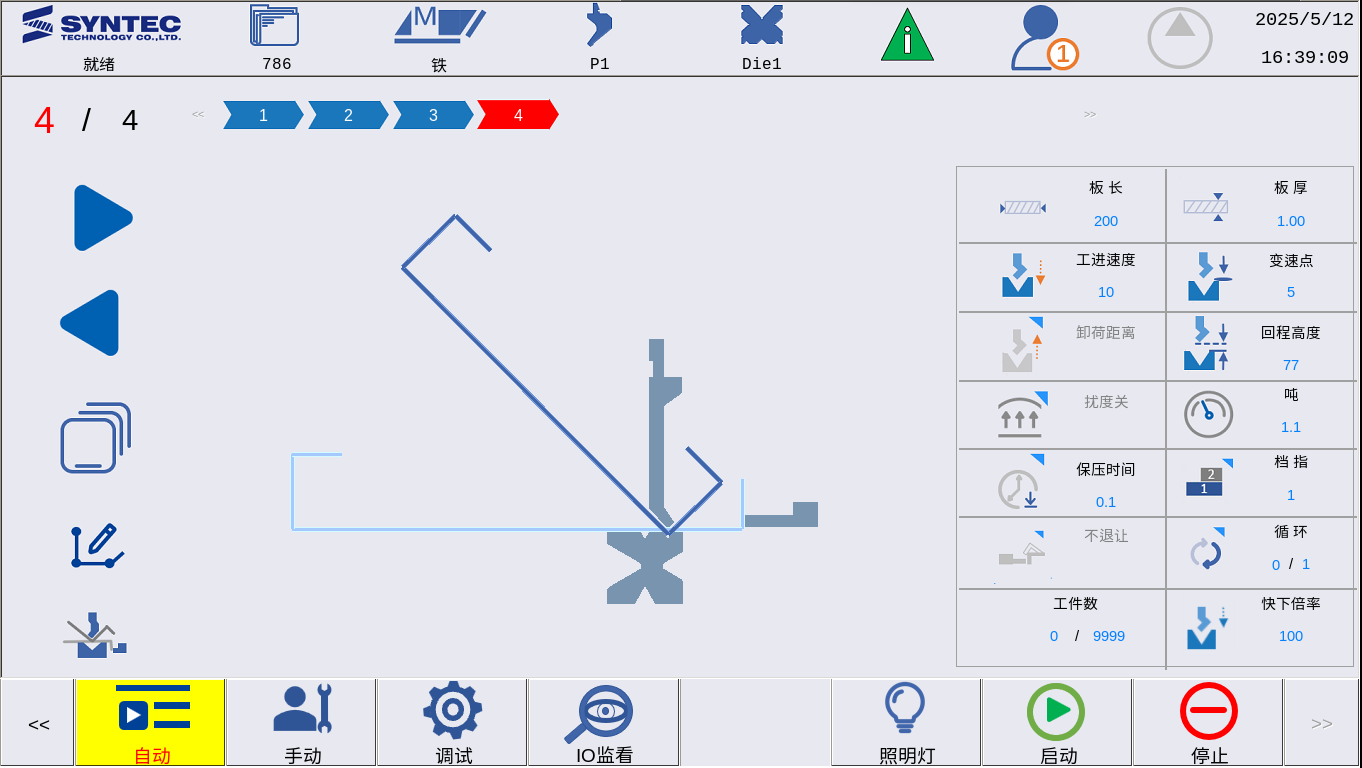

CNC Controller
Optional
Enables graphic programming and multi-axis coordination
Supports graphic programming and multi-axis linkage capabilities for flexible and automated operation.

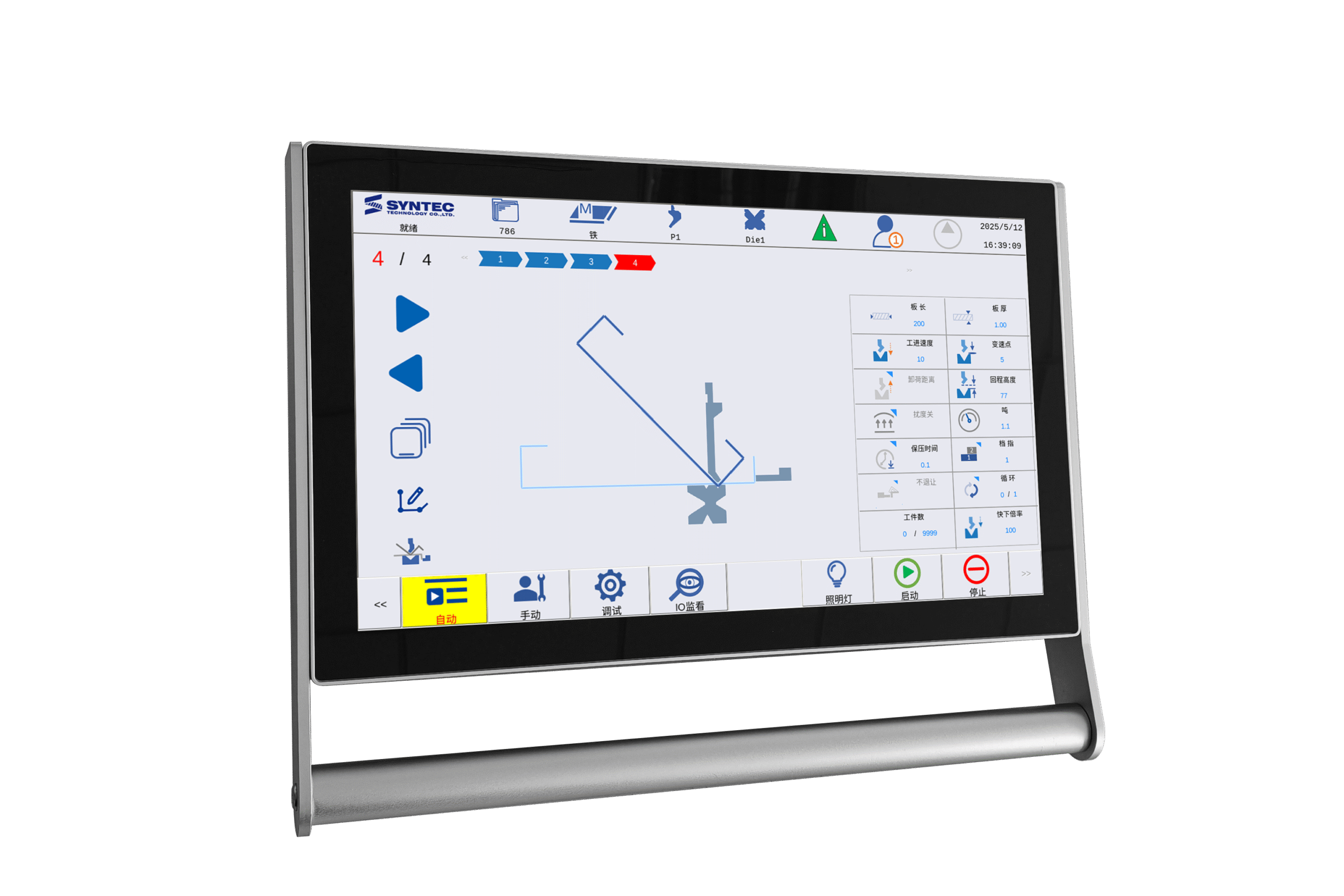

HMI Touch Panel
Intuitive interface enhances user experience
Features a clear and responsive touchscreen for real-time settings, monitoring, and operation.
Electrical System
Featuring a clean and organized layout, the system ensures electrical safety, easy maintenance, and long-term operational stability.
Electrical
Organized wiring for safe, easy maintenance
Integrates all key electrical components with neat layout, enhancing safety and maintenance convenience.

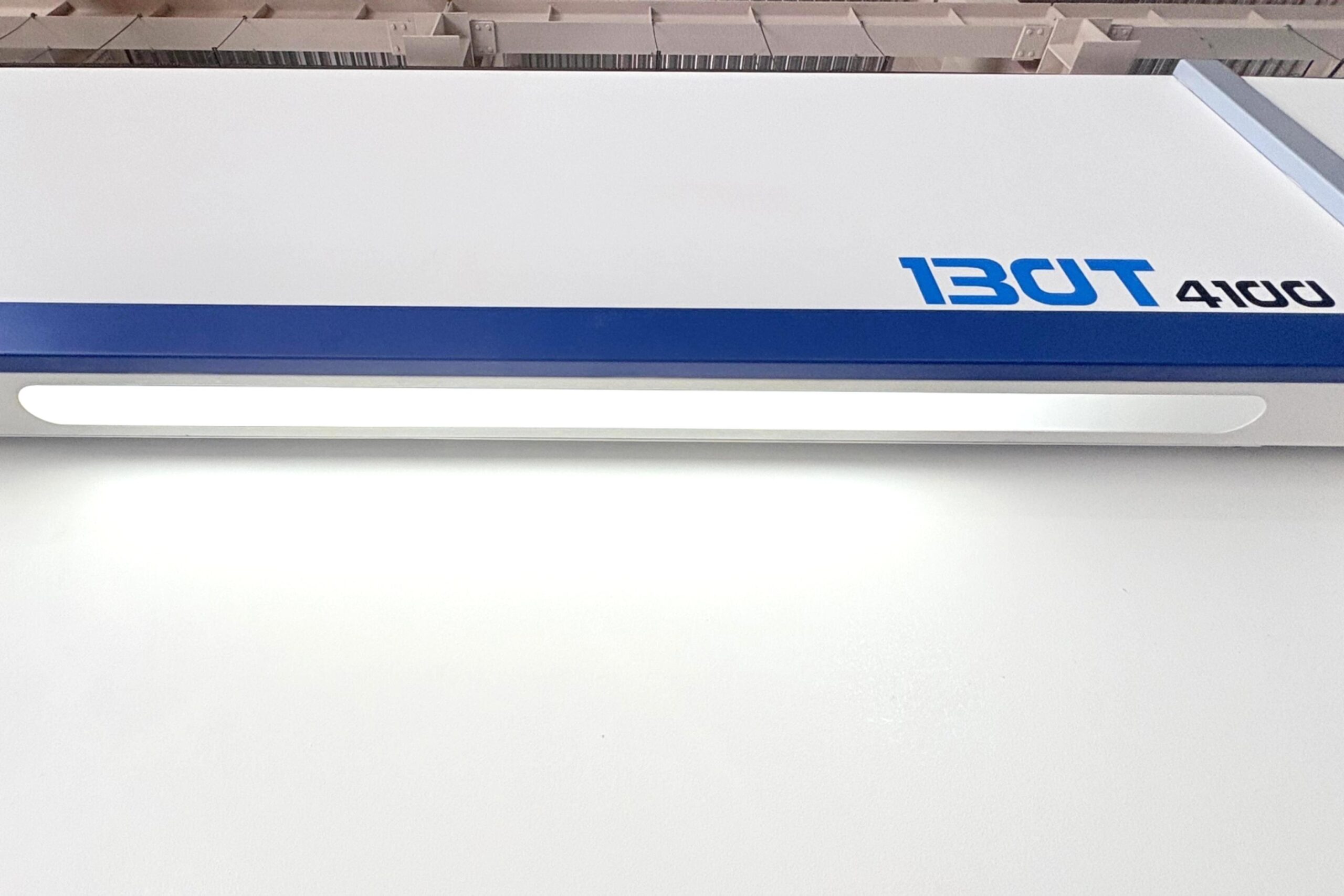

LED Work Area Light
Bright lighting improves workspace visibility
Ensures a good field of vision even in low-light conditions, facilitating detailed observation and safe operation.
Tooling System
The system allows quick changeovers and compatibility with various tools, improving flexibility for diverse bending applications.
Mold
Optional
Durable and precise for various bending needs
There are a wide variety of molds available, which can be adapted to different materials and process requirements.
Safety System
With multiple active and passive protections, the system minimizes operational risks and ensures safety for both operator and equipment.
Emergency Stop
One-press shutdown for emergency response
Stops all operations immediately to prevent equipment damage or injury in case of sudden abnormal situations.

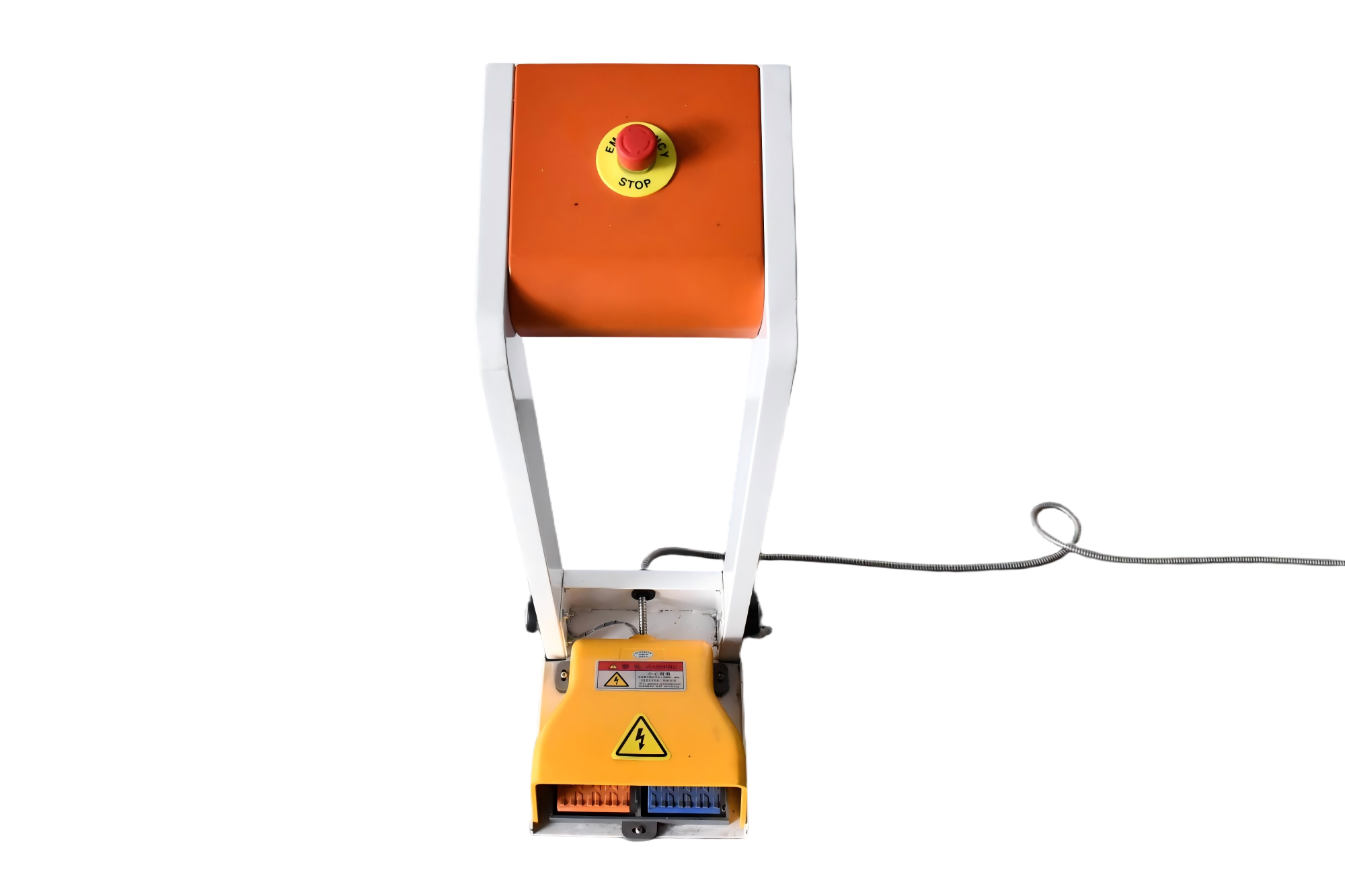

Foot Pedal
Hands-free control improves operating efficiency
Flexible foot pedal control facilitates the operator to complete the bending operation efficiently while ensuring safety.
Auxiliary System
The system supports integration of smart auxiliary devices for automated handling and environmental control, enhancing production intelligence.

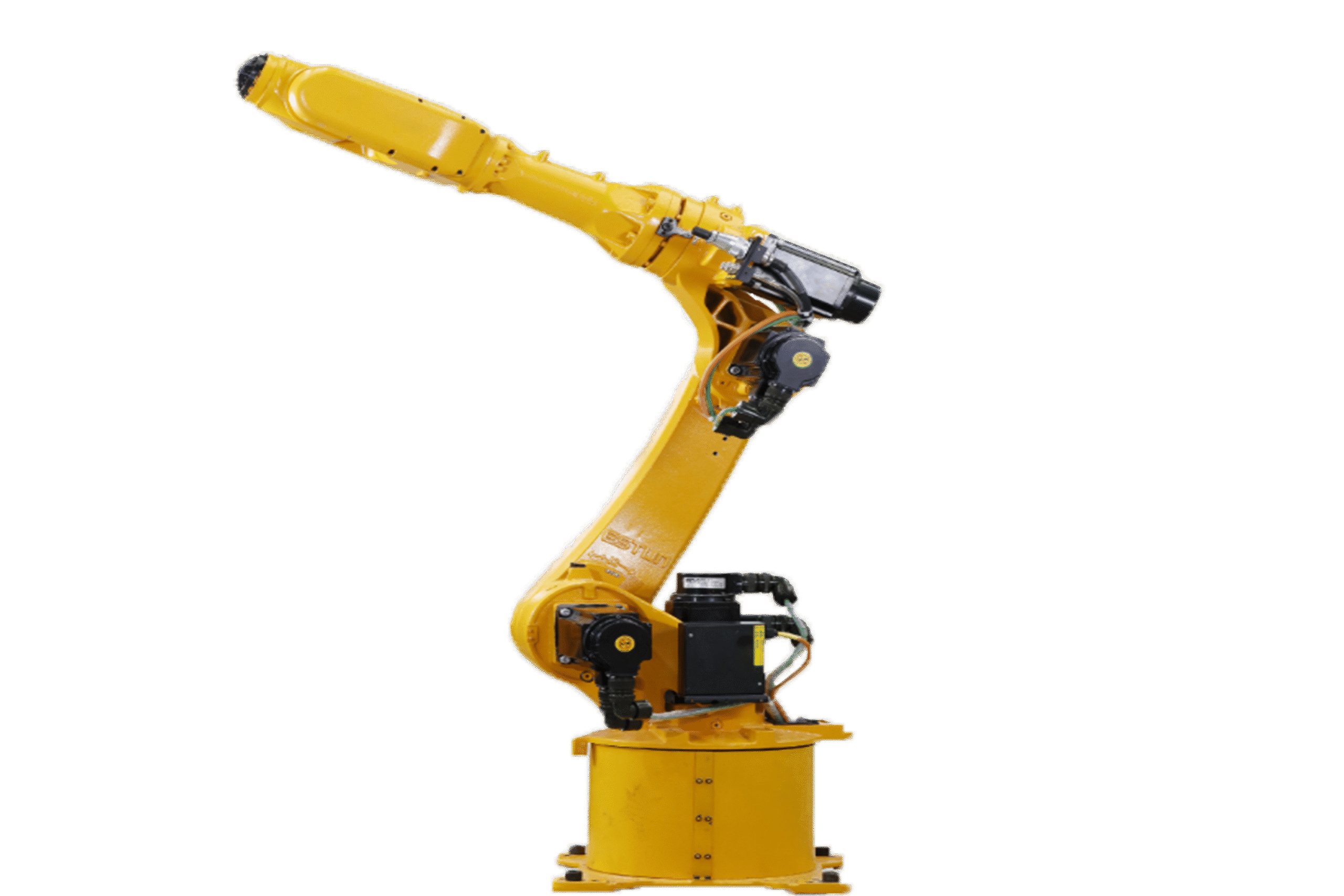

Bending Robot
Automates loading and bending for smart production
Performs automated loading/unloading and bending tasks to build an efficient, flexible manufacturing line.

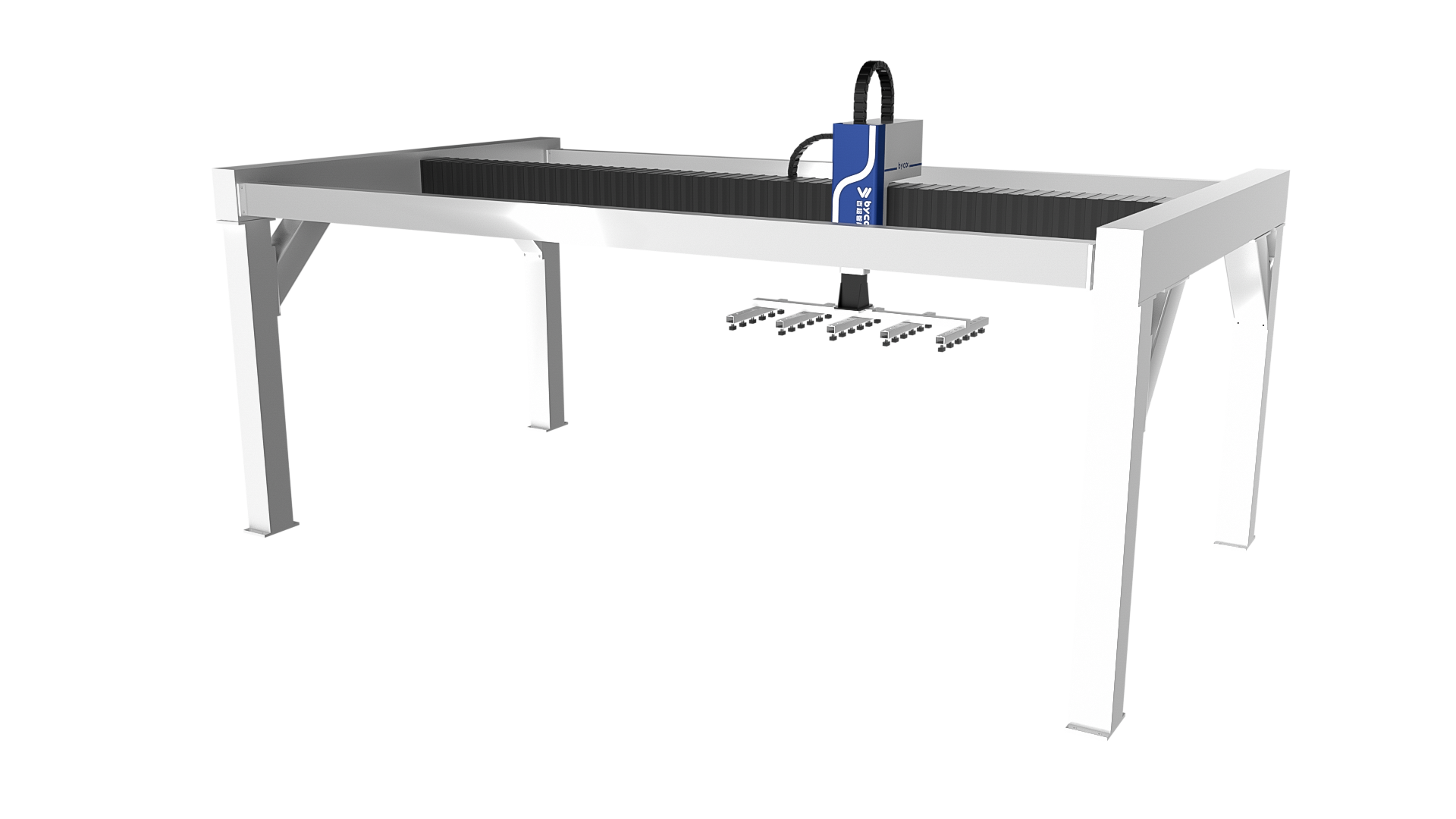

Gantry Loading/Unloading System
Dramatically Boost Output, High Return on Investment
Seamlessly integrates with the press brake to minimize idle time and maximize productive hours, significantly increasing overall output and ROI.
Product Technical Specifications
Please check the technical details you require. If necessary, please contact us. Help Center
| Basic Parameters | Max Bending Length (mm) | 1600 |
| Max Bending Height (mm) | 180 | |
| Bending Thickness (mm) | UST 650N/mm² 304 Stainless Steel: 0.3~2mm UST 450N/mm² Cold Plate: 0.3~3mm UST 210N/mm² Aluminum Plate: 0.3~4mm |
|
| Main Motor Power (kW) | 75 | |
| Overall Dimensions (mm) | 5200*2000*3200 | |
| Performance | Fastest Single-Time Bending Time (s) | 0.2 |
| Max Rotation Diameter (mm) | 2050 | |
| Positioning Width (mm) | 200~1650 | |
| Single Side Min Forming Dimension (mm) | 170 | |
| Bilateral Minimum Forming Dimensions (mm) | 200 | |
| Four Side Minimum Forming Dimensions (mm) | 200*200 | |
| Bending angle (°) | 0 ~ 180° | |
| Mechanical System | Bed | Steel Plate Welding |
| Press Arm Structure | ● | |
| Working Table | ● | |
| Support Arm | ● Fixed Support Device ◎ Follow-up Support Device | |
| Backgauge System | Servo Motor & Drive | ● SYNTEC, TAIWAN CHINA |
| Linear Guide Rail | ● BYCA, CHINA ◎ HIWIN, TAIWAN CHINA | |
| Ball Screw | ● BYCA, CHINA ◎ HIWIN, TAIWAN CHINA | |
| Control System | Number of Axes | ● Standard 12 axis ◎ 24 axis |
| CNC Controller | ● SYNTEC 8000T, TAIWAN CHINA | |
| HMI Touch Panel | ● | |
| Electrical System | Electrical | ● SCHNEIDER, FRANCE |
| LED Work Area Light | ● | |
| Power Supply Voltage | Customizable | |
| Tooling System | Mold | ● |
| Safety System | Emergency Stop | ● |
| Foot Pedal | ● | |
| Auxiliary System | Bending Robot | ○ ESTUN, CHINA |
| Automatic Tool Changing System | ○ | |
| Gantry Loading/Unloading System | ○ |
| Basic Parameters | Max Bending Length (mm) | 2000 |
| Max Bending Height (mm) | 180 | |
| Bending Thickness (mm) | UST 650N/mm² 304 Stainless Steel: 0.3~2mm UST 450N/mm² Cold Plate: 0.3~3mm UST 210N/mm² Aluminum Plate: 0.3~4mm |
|
| Main Motor Power (kW) | 75 | |
| Overall Dimensions (mm) | 6200*2500*3200 | |
| Performance | Fastest Single-Time Bending Time (s) | 0.2 |
| Max Rotation Diameter (mm) | 2400 | |
| Positioning Width (mm) | 200~2050 | |
| Single Side Min Forming Dimension (mm) | 170 | |
| Bilateral Minimum Forming Dimensions (mm) | 200 | |
| Four Side Minimum Forming Dimensions (mm) | 200*200 | |
| Bending angle (°) | 0 ~ 180° | |
| Mechanical System | Bed | Steel Plate Welding |
| Press Arm Structure | ● | |
| Working Table | ● | |
| Support Arm | ● Fixed Support Device ◎ Follow-up Support Device | |
| Backgauge System | Servo Motor & Drive | ● SYNTEC, TAIWAN CHINA |
| Linear Guide Rail | ● BYCA, CHINA ◎ HIWIN, TAIWAN CHINA | |
| Ball Screw | ● BYCA, CHINA ◎ HIWIN, TAIWAN CHINA | |
| Control System | Number of Axes | ● Standard 12 axis ◎ 24 axis |
| CNC Controller | ● SYNTEC 8000T, TAIWAN CHINA | |
| HMI Touch Panel | ● | |
| Electrical System | Electrical | ● SCHNEIDER, FRANCE |
| LED Work Area Light | ● | |
| Power Supply Voltage | Customizable | |
| Tooling System | Mold | ● |
| Safety System | Emergency Stop | ● |
| Foot Pedal | ● | |
| Auxiliary System | Bending Robot | ○ ESTUN, CHINA |
| Automatic Tool Changing System | ○ | |
| Gantry Loading/Unloading System | ○ |
| Basic Parameters | Max Bending Length (mm) | 2500 |
| Max Bending Height (mm) | 180 | |
| Bending Thickness (mm) | UST 650N/mm² 304 Stainless Steel: 0.3~2mm UST 450N/mm² Cold Plate: 0.3~3mm UST 210N/mm² Aluminum Plate: 0.3~4mm |
|
| Main Motor Power (kW) | 110 | |
| Overall Dimensions (mm) | 7200*3200*3200 | |
| Performance | Fastest Single-Time Bending Time (s) | 0.2 |
| Max Rotation Diameter (mm) | 2800 | |
| Positioning Width (mm) | 200~2550 | |
| Single Side Min Forming Dimension (mm) | 170 | |
| Bilateral Minimum Forming Dimensions (mm) | 200 | |
| Four Side Minimum Forming Dimensions (mm) | 200*200 | |
| Bending angle (°) | 0 ~ 180° | |
| Mechanical System | Bed | Steel Plate Welding |
| Press Arm Structure | ● | |
| Working Table | ● | |
| Support Arm | ● Fixed Support Device ◎ Follow-up Support Device | |
| Backgauge System | Servo Motor & Drive | ● SYNTEC, TAIWAN CHINA |
| Linear Guide Rail | ● BYCA, CHINA ◎ HIWIN, TAIWAN CHINA | |
| Ball Screw | ● BYCA, CHINA ◎ HIWIN, TAIWAN CHINA | |
| Control System | Number of Axes | ● Standard 12 axis ◎ 24 axis |
| CNC Controller | ● SYNTEC 8000T, TAIWAN CHINA | |
| HMI Touch Panel | ● | |
| Electrical System | Electrical | ● SCHNEIDER, FRANCE |
| LED Work Area Light | ● | |
| Power Supply Voltage | Customizable | |
| Tooling System | Mold | ● |
| Safety System | Emergency Stop | ● |
| Foot Pedal | ● | |
| Auxiliary System | Bending Robot | ○ ESTUN, CHINA |
| Automatic Tool Changing System | ○ | |
| Gantry Loading/Unloading System | ○ |
| Basic Parameters | Max Bending Length (mm) | 3000 |
| Max Bending Height (mm) | 180 | |
| Bending Thickness (mm) | UST 650N/mm² 304 Stainless Steel: 0.3~2mm UST 450N/mm² Cold Plate: 0.3~3mm UST 210N/mm² Aluminum Plate: 0.3~4mm |
|
| Main Motor Power (kW) | 110 | |
| Overall Dimensions (mm) | 8200*3900*3200 | |
| Performance | Fastest Single-Time Bending Time (s) | 0.2 |
| Max Rotation Diameter (mm) | 3300 | |
| Positioning Width (mm) | 200~3050 | |
| Single Side Min Forming Dimension (mm) | 170 | |
| Bilateral Minimum Forming Dimensions (mm) | 200 | |
| Four Side Minimum Forming Dimensions (mm) | 200*200 | |
| Bending angle (°) | 0 ~ 180° | |
| Mechanical System | Bed | Steel Plate Welding |
| Press Arm Structure | ● | |
| Working Table | ● | |
| Support Arm | ● Fixed Support Device ◎ Follow-up Support Device | |
| Backgauge System | Servo Motor & Drive | ● SYNTEC, TAIWAN CHINA |
| Linear Guide Rail | ● BYCA, CHINA ◎ HIWIN, TAIWAN CHINA | |
| Ball Screw | ● BYCA, CHINA ◎ HIWIN, TAIWAN CHINA | |
| Control System | Number of Axes | ● Standard 12 axis ◎ 24 axis |
| CNC Controller | ● SYNTEC 8000T, TAIWAN CHINA | |
| HMI Touch Panel | ● | |
| Electrical System | Electrical | ● SCHNEIDER, FRANCE |
| LED Work Area Light | ● | |
| Power Supply Voltage | Customizable | |
| Tooling System | Mold | ● |
| Safety System | Emergency Stop | ● |
| Foot Pedal | ● | |
| Auxiliary System | Bending Robot | ○ ESTUN, CHINA |
| Automatic Tool Changing System | ○ | |
| Gantry Loading/Unloading System | ○ |
